Goodwe DNS Series User Manual

06 Electrical Connection
18
User Manual V1.0-2022-12-15

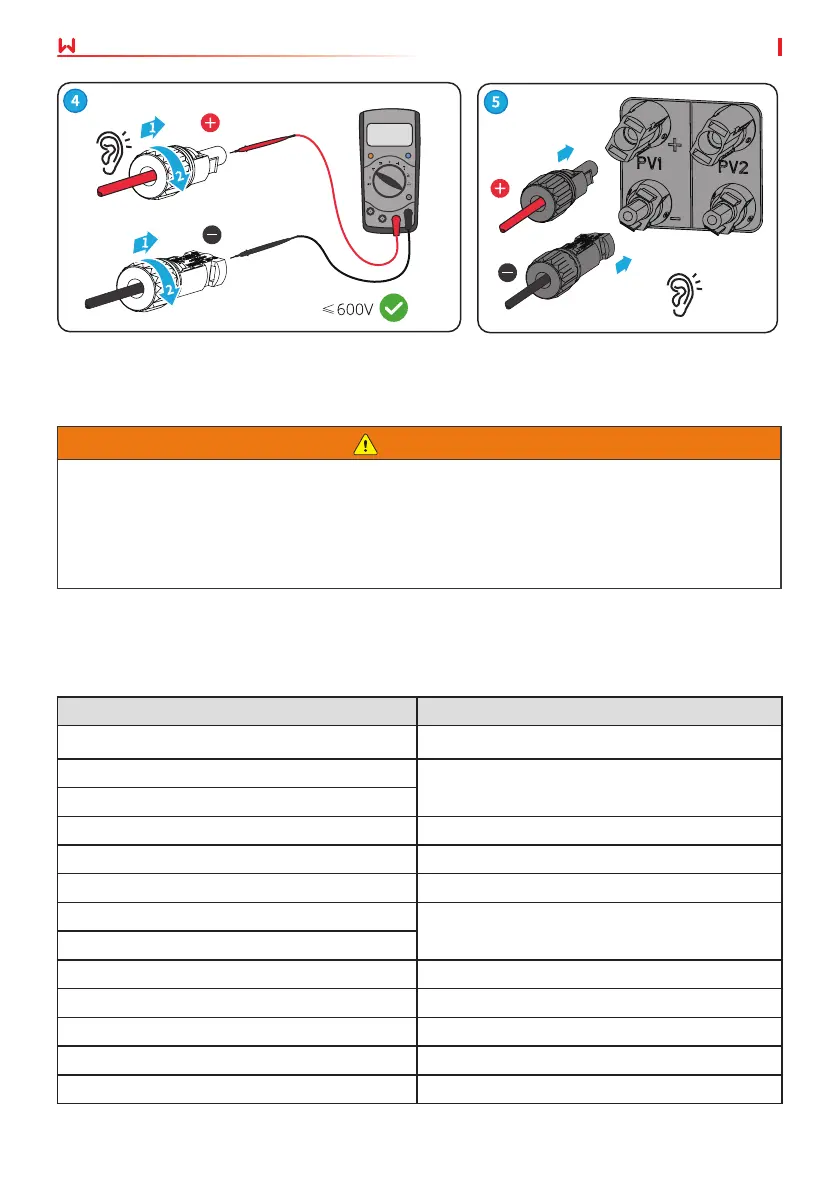

Click
Click
6.4 Connecting the AC Output Cable
WARNING
• Do not connect loads between the inverter and the AC switch directly connected to the
inverter.
• The Residual Current Monitoring Unit (RCMU) is integrated into the inverter. The inverter
will disconnect the utility grid rapidly once it detects any leak current over the permissible
range.
An AC circuit breaker shall be installed on the AC side to make sure that the inverter can safely
disconnect the grid when an exception happens. Select the appropriate AC circuit breaker in
compliance with local laws and regulations. Recommended AC circuit breakers:
Inverter model AC circuit breaker
GW2900D-NS 30A
GW3000D-NS
20A
GW3600D-NS
GW4200D-NS 25A
GW5000D-NS 30A
GW6000D-NS 35A
GW3000T-DS
20A
GW3600T-DS
GW4200T-DS 25A
GW5000T-DS 30A
GW6000T-DS 35A
GW5KBD-NS 30A
GW6KBD-NS 35A

Goodwe DNS Series Specifications

General

Max. Efficiency	97.8%
MPPT Efficiency	99.9%
Cooling Method	Natural Convection
Protection Rating	IP65
Start Voltage	80 V
Nominal AC Voltage	230 V
THDi	<3%
Number of MPPTs	2
Output Voltage	230 V
Frequency	50 Hz / 60 Hz
Type	Grid-Tied Inverter
Rated Power Output	3000W, 3600W, 4200W, 5000W
Communication	RS485
Max. DC Input Power	4500W, 5400W, 6300W, 7500W
Max. DC Voltage	550V
MPPT Voltage Range	80-500V
Rated AC Output Power	3000W, 3600W, 4200W, 5000W
AC Voltage Range	180V - 280V
Power Factor	0.8 leading to 0.8 lagging
Operating Temperature Range	-25°C to 60°C
MPPT Range	80-500V
Model	DNS Series
