Goodwe DNS Series User Manual

02 Safety Precaution
4
User Manual V1.0-2022-12-15
2.4 Inverter Installation

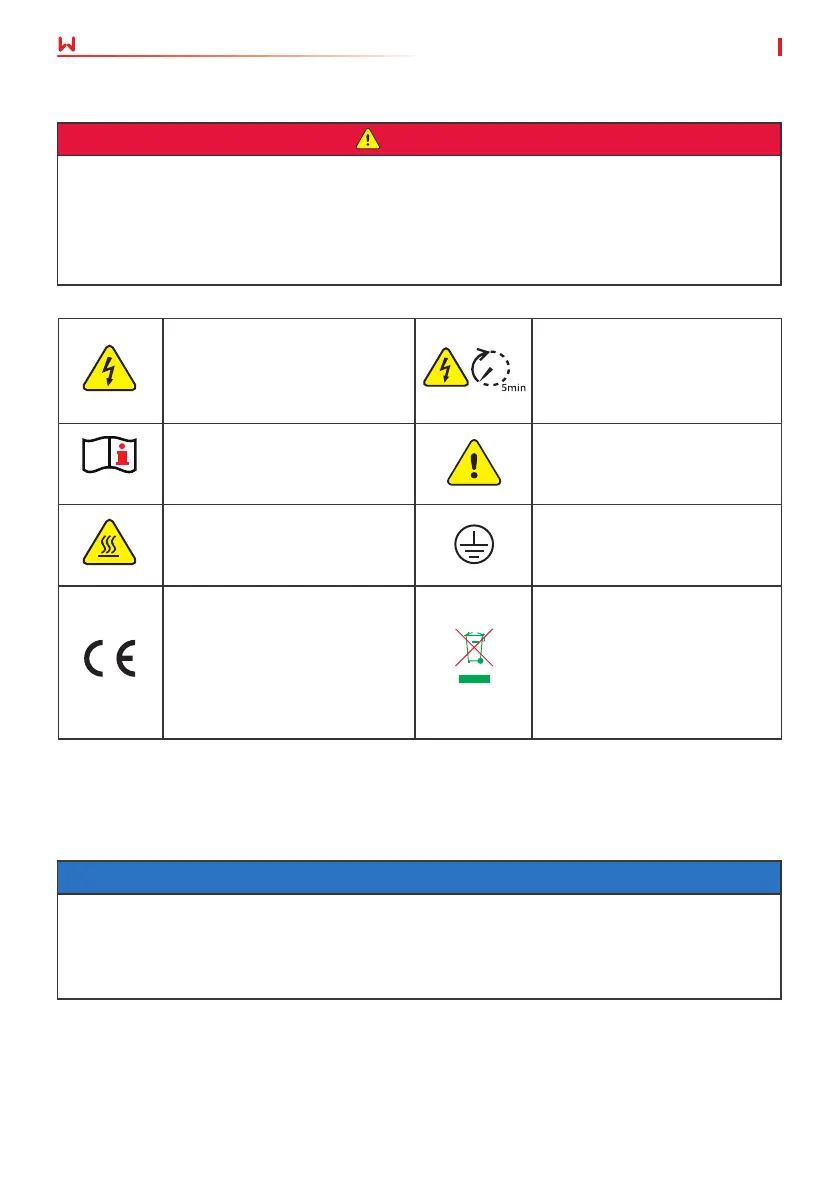

DANGER High voltage hazard.
Disconnect all incoming power
and turn o the product before
working on it.
Delayed discharge. Wait
5 minutes after power o
until the components are
completely discharged.
Read through the user manual
before working on this device.
Potential risks exist. Wear
proper PPE before any
operations.
High-temperature hazard. Do
not touch the product under
operation to avoid being burnt.
Grounding point.
CE Mark Do not dispose of the inverter
as household waste. Discard
the product in compliance with
local laws and regulations,
or send it back to the
manufacturer.
DANGER
• Do not apply mechanical load to the terminals, otherwise the terminals can be damaged.
• All labels and warning marks should be visible after the installation. Do not scrawl,
damage, or cover any label on the device.
• Inverters shall not be used in multiple inverter combinations for AS/NZS 4777.2:2020.
• Warning labels on the inverter are as follows.
2.5 Personal Requirements
NOTICE
• Personnel who install or maintain the equipment must be strictly trained, learn about
safety precautions and correct operations.
• Only qualied professionals or trained personnel are allowed to install, operate, maintain,
and replace the equipment or parts.

Goodwe DNS Series Specifications

General

Max. Efficiency	97.8%
MPPT Efficiency	99.9%
Cooling Method	Natural Convection
Protection Rating	IP65
Start Voltage	80 V
Nominal AC Voltage	230 V
THDi	<3%
Number of MPPTs	2
Output Voltage	230 V
Frequency	50 Hz / 60 Hz
Type	Grid-Tied Inverter
Rated Power Output	3000W, 3600W, 4200W, 5000W
Communication	RS485
Max. DC Input Power	4500W, 5400W, 6300W, 7500W
Max. DC Voltage	550V
MPPT Voltage Range	80-500V
Rated AC Output Power	3000W, 3600W, 4200W, 5000W
AC Voltage Range	180V - 280V
Power Factor	0.8 leading to 0.8 lagging
Operating Temperature Range	-25°C to 60°C
MPPT Range	80-500V
Model	DNS Series
