Goodwe DNS Series User Manual

03 Product Introduction
7
User Manual V1.0-2022-12-15
No. Parts Description
1 PV Input Terminal Used to connect the PV module DC input cables.
2 DC Switch Start or stop DC input.
3 DC Switch Lock
Only for Australia. Turn the DC switch to OFF and
lock it to avoid electric shock when you have to work
on the inverter.
4
WiFi/4G/LAN/GPRS
Communication Module Port
or RS485 Communication
Cable Port
• Connect a communication module like WiFi,
LAN, GPRS, 4G, etc. The module type may dier
depending on actual needs.
• Connect the RS485 Communication Cable.
• Update the software version of the inverter using
a USB ash driver.
5
DRED/CT/Remote Shutdown
Communication Cable Port
Used to connect the DRED or remote shutdown
communication cable.
6 AC Output Terminal
Used to connect the AC output cable, which connects
the inverter and the utility grid.
7 Indicator Indicates working state of the inverter.
8 LCD Used to check the parameters of the inverter.
9 Button Used to select menus displayed on the screen.
10 PE Terminal Used to connect the PE cable.
11 Mounting Plate Used to install the inverter.
12 Heat Sink Used to cool the inverter.

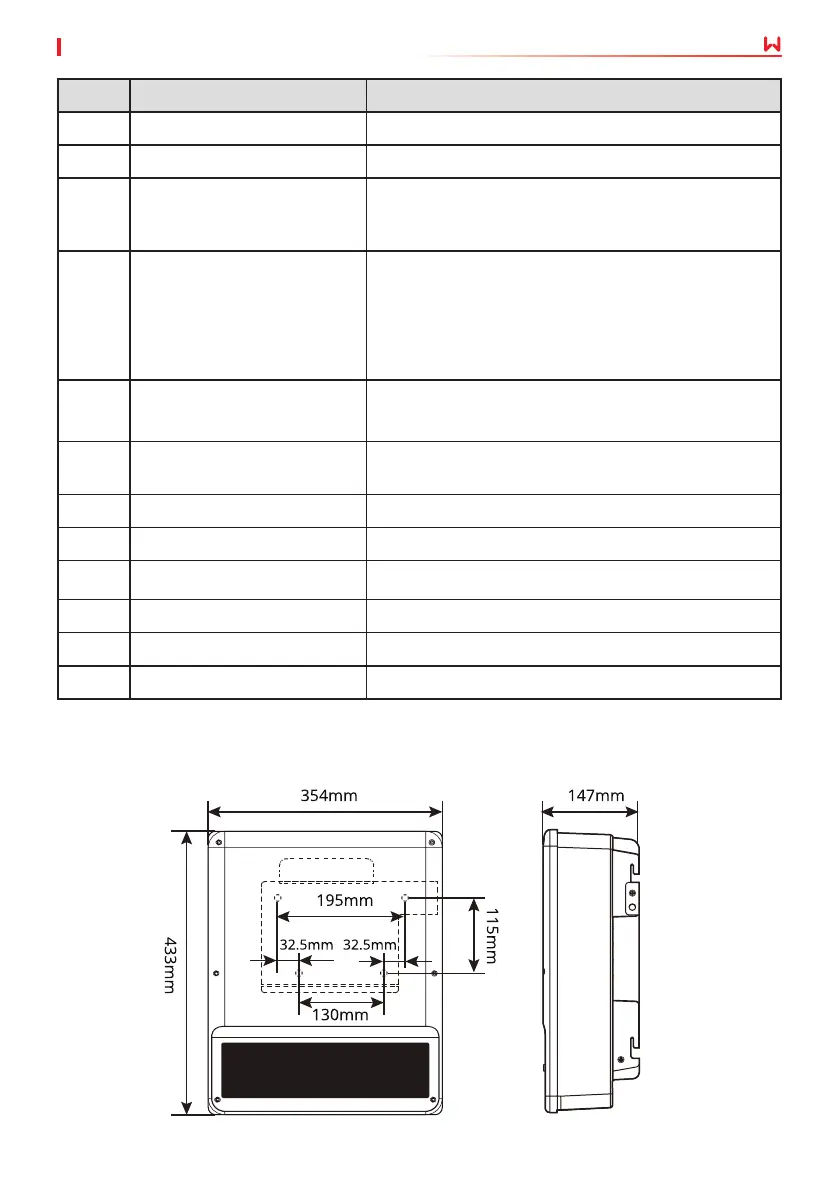

3.4.2 Dimensions

Goodwe DNS Series Specifications

General

Max. Efficiency	97.8%
MPPT Efficiency	99.9%
Cooling Method	Natural Convection
Protection Rating	IP65
Start Voltage	80 V
Nominal AC Voltage	230 V
THDi	<3%
Number of MPPTs	2
Output Voltage	230 V
Frequency	50 Hz / 60 Hz
Type	Grid-Tied Inverter
Rated Power Output	3000W, 3600W, 4200W, 5000W
Communication	RS485
Max. DC Input Power	4500W, 5400W, 6300W, 7500W
Max. DC Voltage	550V
MPPT Voltage Range	80-500V
Rated AC Output Power	3000W, 3600W, 4200W, 5000W
AC Voltage Range	180V - 280V
Power Factor	0.8 leading to 0.8 lagging
Operating Temperature Range	-25°C to 60°C
MPPT Range	80-500V
Model	DNS Series
