Goodwe DNS Series User Manual

06 Electrical Connection
23
User Manual V1.0-2022-12-15
Notice
• Make sure that the communication device is connected to the right terminal. Route the
communication cable far away from any interference source or power cable to prevent the
signal from being inuenced.
• Connect the CT cable using a 2PIN communication terminal.
• Connect the DRED cable, RS485 cable, and remote shutdown cable using a 6PIN
communication terminal.
• DRED (Demand response enabling device) is only for Australian and New Zealand
installations, incompliance with Australian and New Zealand safety requirements.
• Contat the after-sales service to get the DRED terminal if you need to use DRED function.
• DRED function is o by default. Start this function via SolarGo App if it's needed.
• Remote shutdown is only for Europe installations, in compliance with European safety
requirements. And Remote shutdown device is not provided by GOODWE.
• Remote shutdown function is o by default. Start this function via SolarGo App if it's
needed.

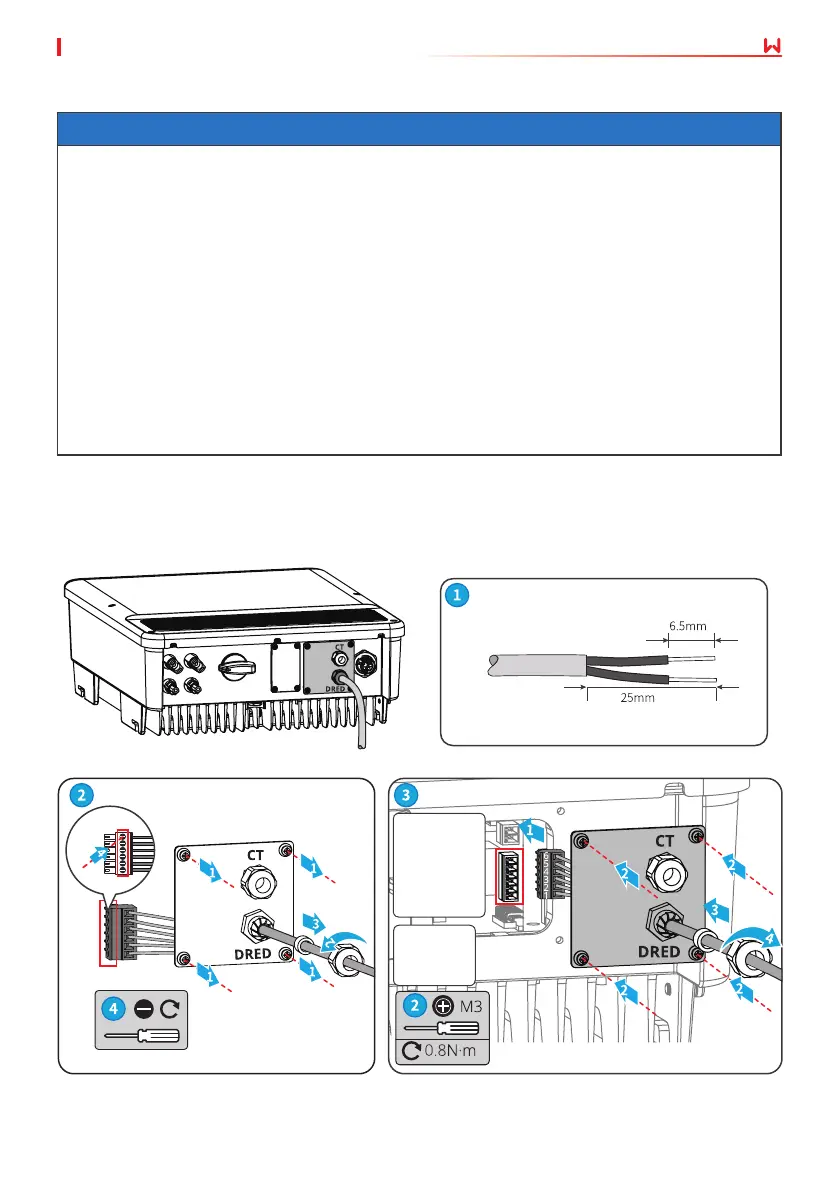

6.5.2 Connecting the Communication Cable (optional)
DRED
1: DRM1/5
2: DRM2/6
3: DRM3/7
4: DRM4/8
5: REFGEN
6: COM/DRM0
Remote
Shutdown
2: REFGEN
3: DRM4/8
• DRED: Australia
• Remote Shutdown: Europe
DRED/Remote Shutdown Communication Cable

Goodwe DNS Series Specifications

General

Max. Efficiency	97.8%
MPPT Efficiency	99.9%
Cooling Method	Natural Convection
Protection Rating	IP65
Start Voltage	80 V
Nominal AC Voltage	230 V
THDi	<3%
Number of MPPTs	2
Output Voltage	230 V
Frequency	50 Hz / 60 Hz
Type	Grid-Tied Inverter
Rated Power Output	3000W, 3600W, 4200W, 5000W
Communication	RS485
Max. DC Input Power	4500W, 5400W, 6300W, 7500W
Max. DC Voltage	550V
MPPT Voltage Range	80-500V
Rated AC Output Power	3000W, 3600W, 4200W, 5000W
AC Voltage Range	180V - 280V
Power Factor	0.8 leading to 0.8 lagging
Operating Temperature Range	-25°C to 60°C
MPPT Range	80-500V
Model	DNS Series
