Goodwe DNS Series User Manual

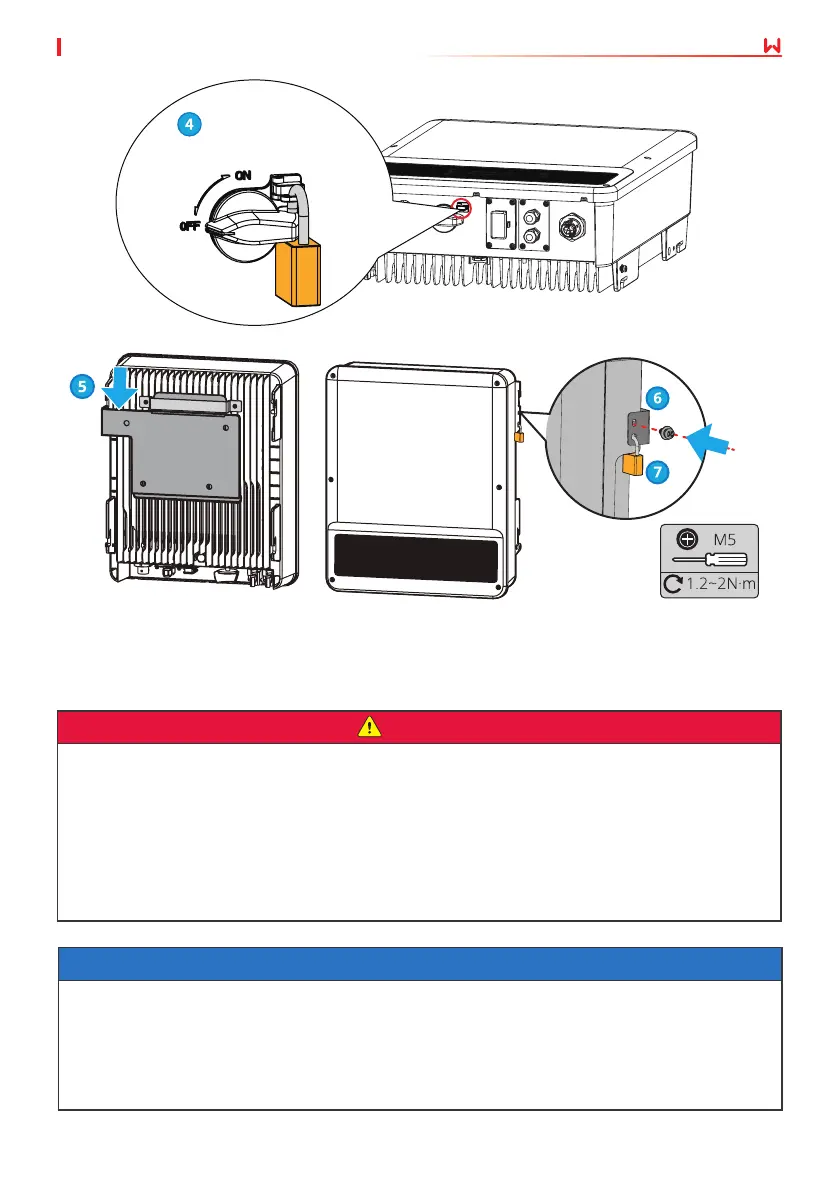

05 Installation
15
User Manual V1.0-2022-12-15
6 Electrical Connection
6.1 Safety Precaution
NOTICE
• Wear personal protective equipment like safety shoes, safety gloves, and insulating gloves
during electrical connections.
• All electrical connections should be performed by qualied professionals.
• Cable colors in this document are for reference only. The cable specications shall meet local
laws and regulations.
DANGER
• Disconnect the DC switch and the AC output switch of the inverter to power o the inverter
before any electrical connections. Do not work with power on. Otherwise, an electric shock
may occur.
• Perform electrical connections in compliance with local laws and regulations. Including
operations, cables, and component specications.
• If the cable bears too much tension, the connection may be poor. Reserve a certain length of
the cable before connecting it to the inverter cable port.
For Australia only.

Goodwe DNS Series Specifications

General

Max. Efficiency	97.8%
MPPT Efficiency	99.9%
Cooling Method	Natural Convection
Protection Rating	IP65
Start Voltage	80 V
Nominal AC Voltage	230 V
THDi	<3%
Number of MPPTs	2
Output Voltage	230 V
Frequency	50 Hz / 60 Hz
Type	Grid-Tied Inverter
Rated Power Output	3000W, 3600W, 4200W, 5000W
Communication	RS485
Max. DC Input Power	4500W, 5400W, 6300W, 7500W
Max. DC Voltage	550V
MPPT Voltage Range	80-500V
Rated AC Output Power	3000W, 3600W, 4200W, 5000W
AC Voltage Range	180V - 280V
Power Factor	0.8 leading to 0.8 lagging
Operating Temperature Range	-25°C to 60°C
MPPT Range	80-500V
Model	DNS Series
