1.3 Product Overview
ETCseriesenergystorageinverterscanbeappliedinagrid-tiedsystem,anemergencypower
supplysystem,orahybridsystem.

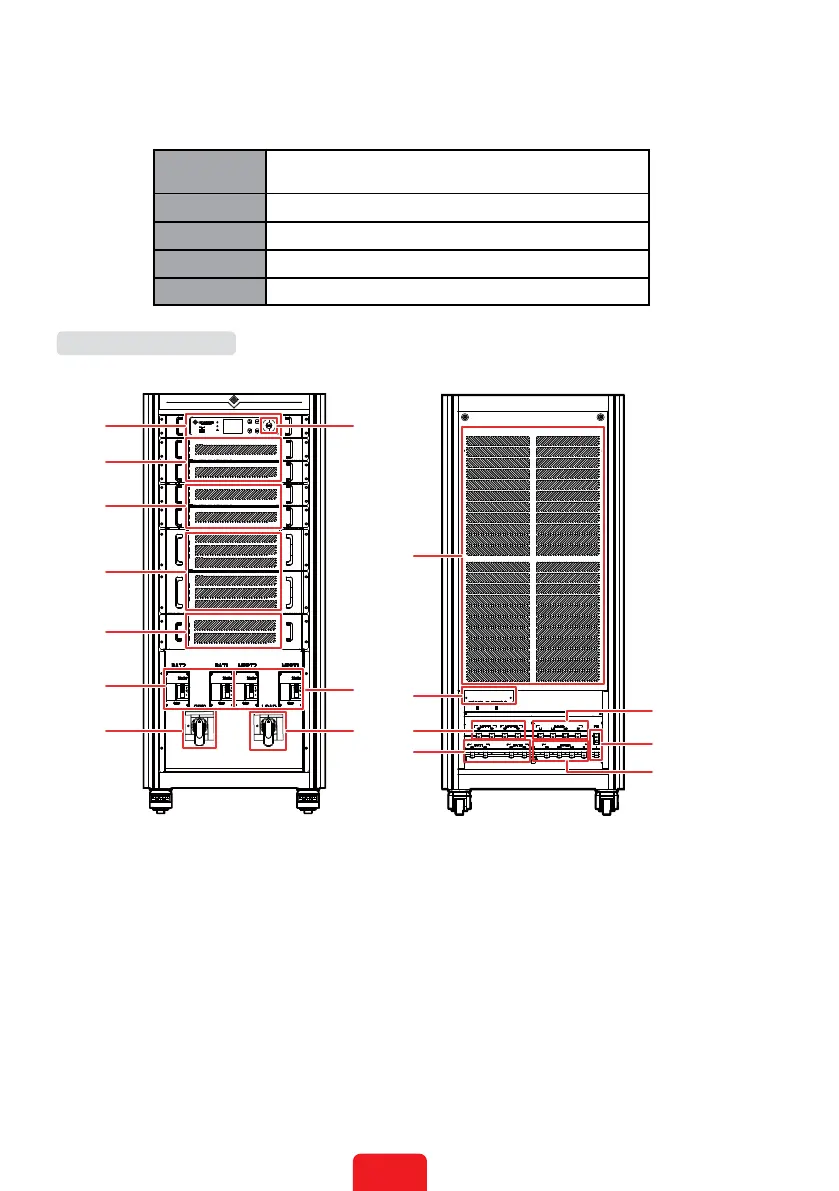

(1) Monitoring Unit (EMS1000)
(3) DC-DC Conversion Module (GW50K-DCM)
(5) ON/OFF Grid Switching Module (GW100K-STS)
(7) AC Output Circuit Breaker (GRID)
(9) MPPT DC Input Circuit Breaker (MPPT1， MPPT2)
(11) Heat Dissipation Hole
(13) PV DC Input Terminal (MPPT1， MPPT2)
(15) Load Terminal (LOAD)
(17) AC Output Terminal (GRID)
(2) MPPT Module (GW50K-PVM)
(4) Power Conversion System Module
(GW50K-BTM)
(6) Battery Circuit Breaker（BAT1， BAT2)
(8) Emergency Stop Button
(10) Load Circuit Breaker (LOAD)
(12) Communication Cable Port
(14) Battery DC Terminal (BAT1， BAT2)
(16) PE Terminal
GW50K-ETC
GW100K-ETC
Model
GW Brand
50K/100K Power Class
ET Three-phase Hybrid Inverter
C Cabinet Style Product
GW100K-ETC
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
