05 System InstallationUser Manual V1.9-2023-04-30

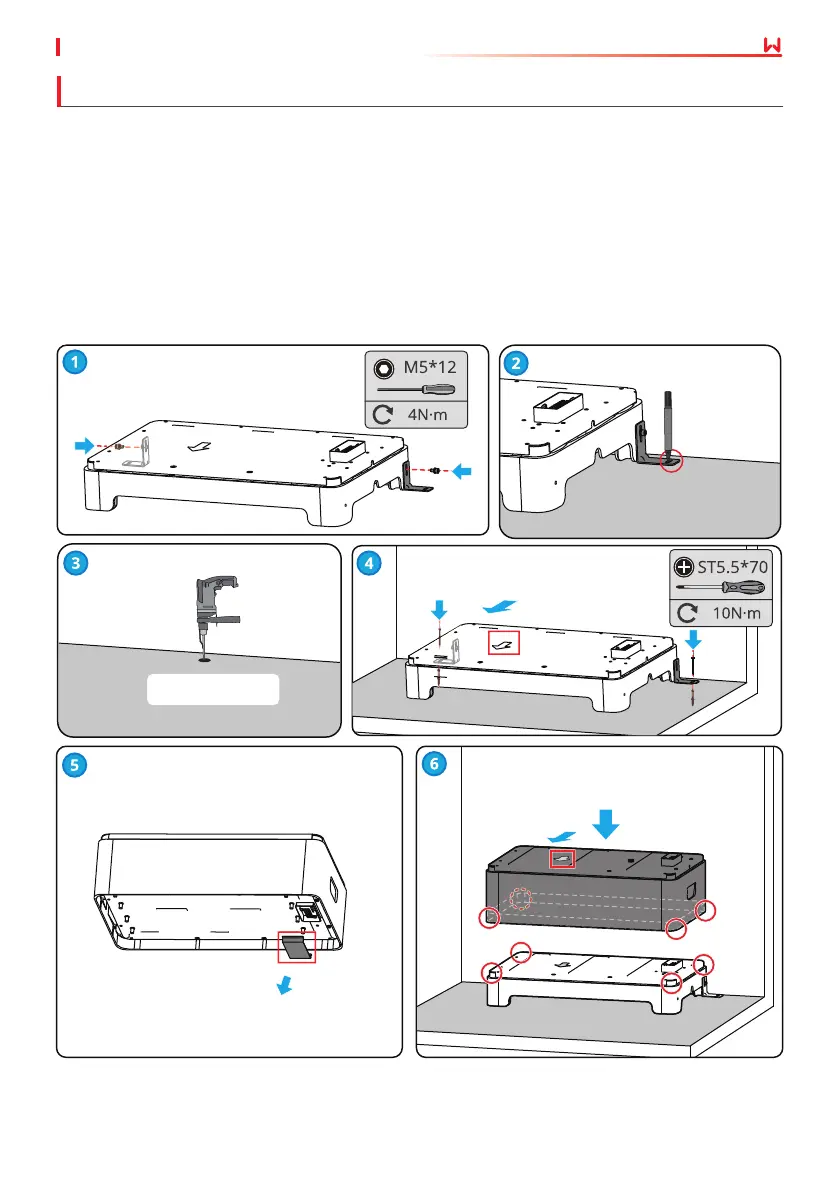

Step 1: Install the locking brackets to the base.
Step 2: Place the base cling to the wall and mark the drilling positions. Then remove the base.
Step 3: Drill holes using the hammer drill.
Step 4: Screw the expansion bolts to x the base. Ensure that the base is installed in the correct
direction.
Step 5: Place the battery module on the base, and ensure that the base and the battery are
installed in the same direction.
Step 6: Install the remaining batteries according to actual battery system type.
Installing the Battery System (Without Adjustable Feet)
Diameter: 10mm
Depth: 80mm
To Next Page
