05 System Installation User Manual V1.9-2023-04-30

Installing the Battery System (With Adjustable Feet)

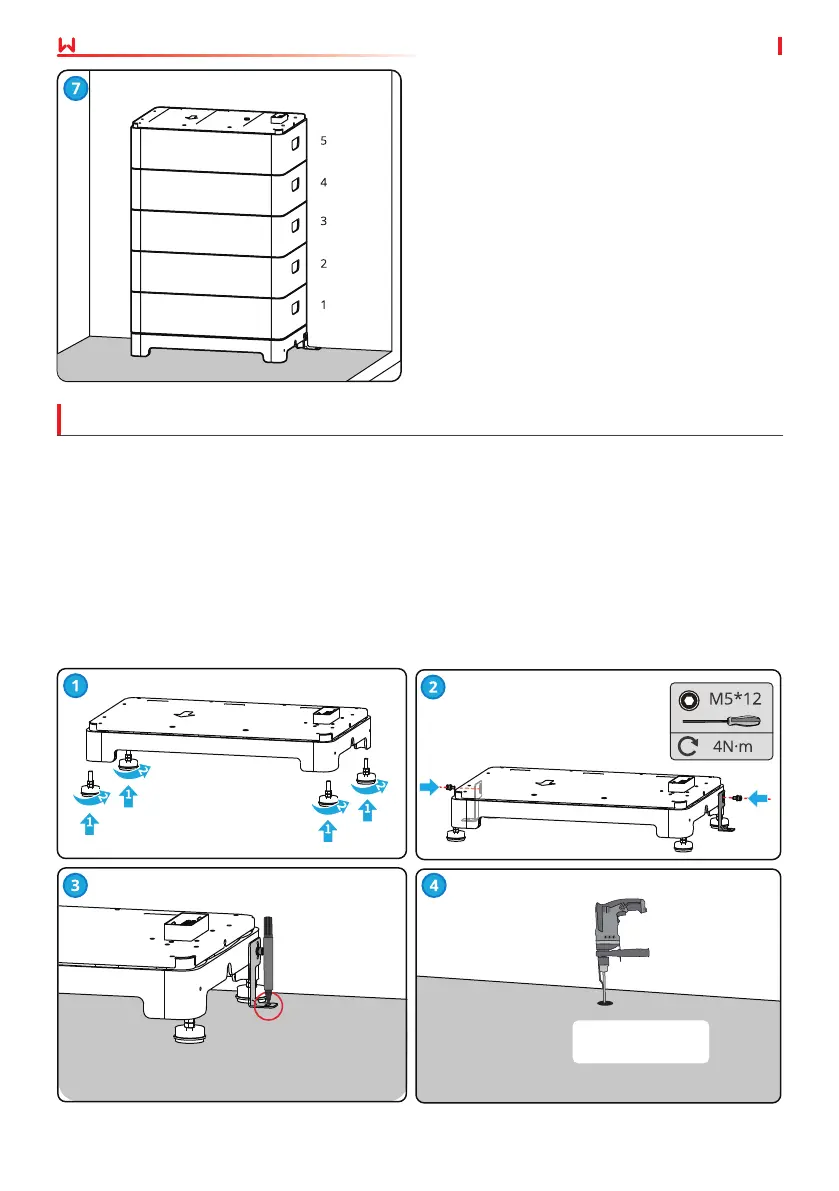

Step 1: Install the adjustable feet to the base.

Step 2: Install the locking brackets to the base.

Step 3: Place the base cling to the wall and mark the drilling positions. Then remove the base.

Step 4: Drill holes using the hammer drill.

Step 5: Screw the expansion bolts to x the base. Ensure that the base is installed in the correct

direction.

Step 6: Place the battery module on the base, and ensure that the base and the battery are

installed in the same direction.

Step 7: Install the remaining batteries according to actual battery system type.

Diameter: 10mm

Depth: 80mm

Only for Lynx home F Plus+ series.
