8
3.3 EquipmentInstallation
3.3.1 Selectingtheinstallationposition
Installationpositionshouldbeselectedbasedonthefollowingaspects:
` The installation method and mounting location must be suitable for the
inverter'sweightanddimensions.
` Mountonasolidsurface.
` Selectawellventilatedplaceshelteredfromdirectsunradiation.

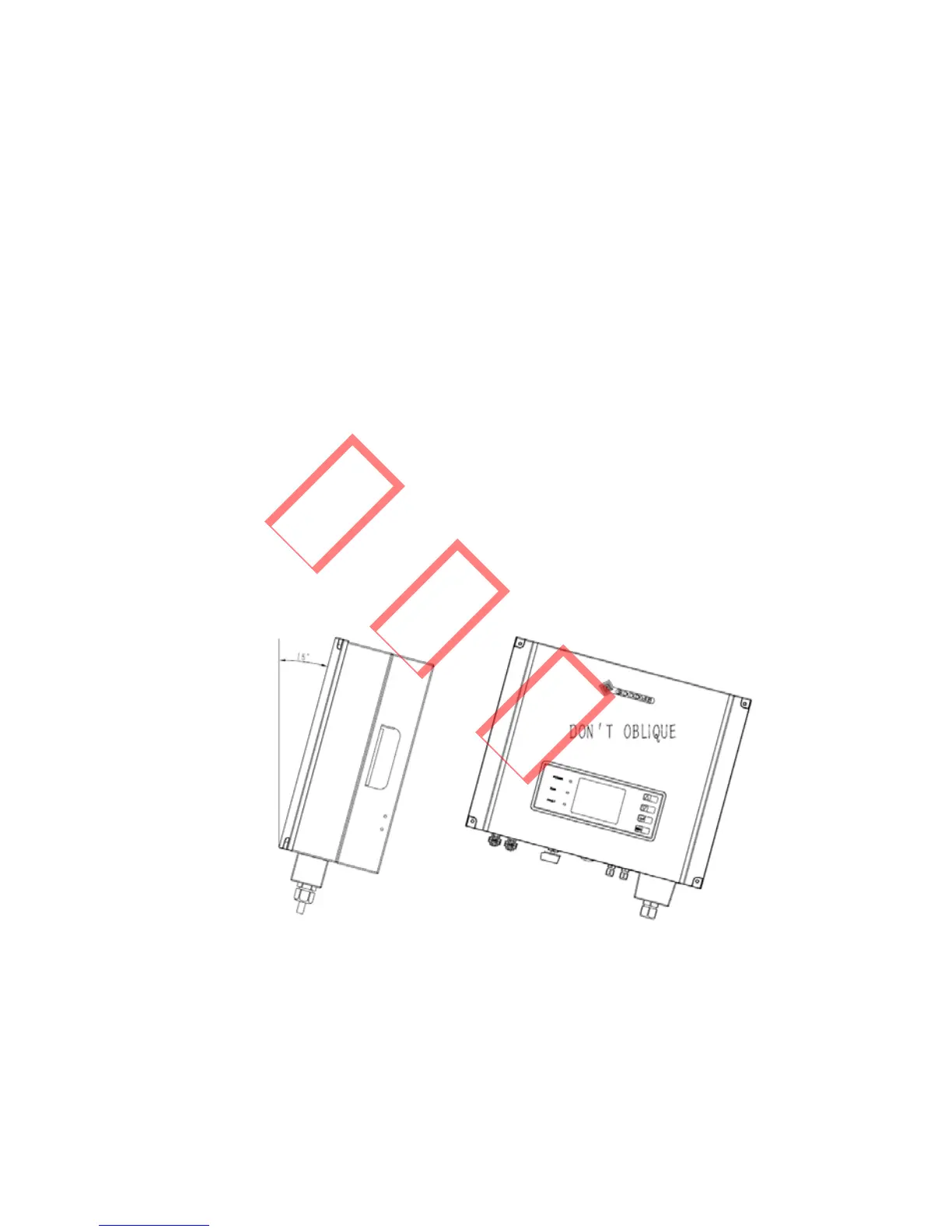

` Installverticallyortiltedbackwardbymax15°.Thedevicecannotbe
installedwithasidewaystilt.Theconnectionareamustpointdownwards.
Figure3.3.1‐1
` In consideration of heat dissipation and convenient dismantlement, the
minimum clearances around the inverter should be no less than the
