which communicate through one cable should use provided RS485
interface (a piece of 10# cable is recommend to be connected for
waterproofing without RS485 cable connection). The typical inverter

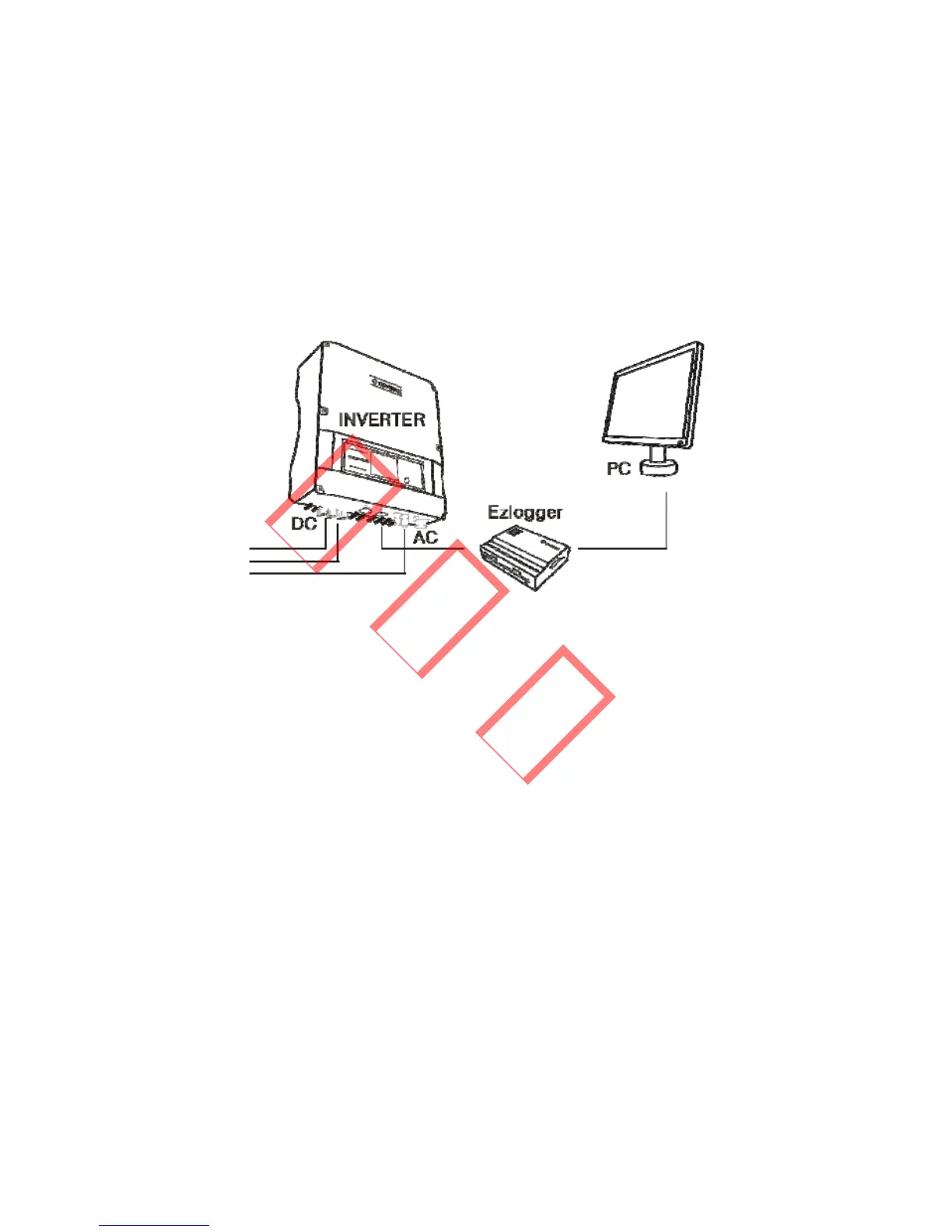

connectiongraphthroughRS485isshownbelow.
Figure3.4.3‐1
The graph below shows the monitoring system connection, in which
inverters’ multipoint communication can be realized through RS485
interface. The software ‘EzExplorer’ used in PC end can realize real‐time
monitoringof16EzLoggersatthesametime.
