25
860-7104-19 DTB Operation Manual
X X

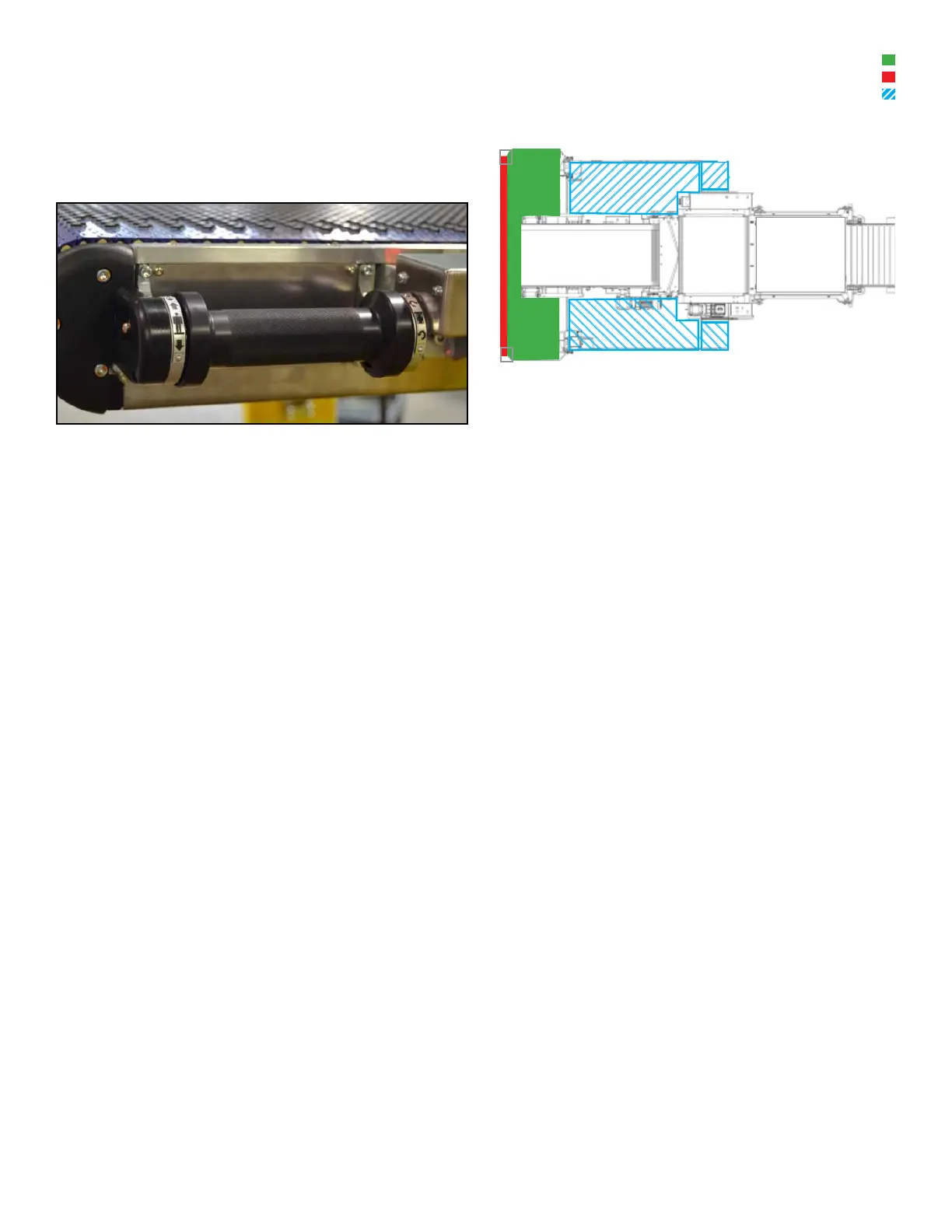

ROTARY HANDLE
Use rotary handle for conveyor UP/DN or to steer when travelling.
Gripping rotary handle releases brake allowing side to side front
conveyor motion. Rotating rotary handle moves platform and/or
pivoting conveyor up and down.
Conveyor can be moved up and down independently of platform
when conveyor is in upper range of motion (above horizontal). To
move conveyor ONLY up or down, rotate handle without breaking
light beam sensor.
NOTE: Rotary handle is activated by breaking light beam located
on underside of handle. Hand sensor must be activated for
controls to work. All operator controls return to neutral position
when released.
Operator Sensing Mat
Sensing Edge (when equipped)
Pressure Sensing Safety Mats
Area Scanners (when equipped)
X
SENSORS
Pressure Sensing Safety Mats: Mats sense weight. If a box
or a person places pressure/weight on either of mats, belts on
machine and conveyor will stop. To restart belts and conveyor,
pressure must be cleared and safety circuit needs to be reset.
Turn conveyor RUN selector switch.
Sensing Edge (when equipped): If Sensing Edge is triggered
by making contact with an obstruction during forward travel or
platform up/down motion, a beeper will sound, all conveyors will
stop and forward motion and motion of operator platform will be
stopped.
To clear fault, operator must travel in reverse for 12” and release
controls. Beeper will stop sounding and fault lights will turn o. All
motions will now be fully functional. Conveyors must be started
again for selector switch on side of conveyor.
Area Scanners (when equipped): See Options section (at the
end of this manual) for more detail.
Operator Sensing Mat: Operator must be on operator platform
mat to enable machine controls. Operator platform present sensor
is triggered by an operator’s weight or placement of a foot. Sensor
allows for forward/reverse travel, pivoting conveyor repositioning
and operator platform lift.
Belts will stop when operator steps o operator platform mat
sensor after 60 seconds. Belts can be started when you are
standing on ground. It is possible to keep belts running when you
step o mat. After stepping o mat (NOT BEFORE), reach and
hold rotary handle for 0.25 seconds during 60 second window.
Ensure you break hand present laser sensor by gripping entirely
around the bottom of the handle.
NOTE: It is possible to operate the belts without standing on the
operator platform. Simply turn belts to ON position before stepping
onto the operator platform.
