OPTIONS
Depending on the options you choose to be included in your
Restu󰀨-it
TM
unit, your machine may have the following features:
SENSORS
The Restu󰀨-it
TM
machine may use a forward sensing edge switch
to stop forward travel if the machine impacts an object. The
machine will stop driving forward and the conveyor belts will shut
o󰀨. The fault can be cleared by driving the machine backwards
for one foot. The switch is located along the forward edge of the
operator platform. The switch is a 2 wire normally open switch. It
sends a 24VDC signal to the PLC if activated. There is terminal
strip connector inside the platform box which connects the switch
to the PLC circuits. The switch is fused in the Control Panel.
AREA SCANNERS
There is an option on the Restu󰀨-it
TM
machine for an area scanner
on the front or rear of the machine or both.
The area scanners are comprised of a few parts. The main body
of the area scanner, which incorporates the actual optical scanner,
is located under the front of the operator platform and on the rear
of the machine base. The scanner head/display for each unit
is found inside an enclosure under the center oor plate in the
base of the machine. On the top of each display/head is the black
memory module. The memory module contains the software for
the scanner and connects to a power/logic output harness. The
scanner body and display are connected with a dedicated cable.
The scanner lens and ledge must be kept clean for the scanner to
function. The lens must only be cleaned with a clean, soft, damp
cloth or a pre-moistened lens cleaning cloth. The area scanner
is an optical device so the lens or ledge may not appear dirty,
but should be cleaned if it senses something that isn’t visibly
apparent.
The area scanners control various operations of the Restu󰀨-it
TM
.
The scanners have two distinct zones. There is a warning zone
and a stop zone for each scanner. The front and rear zones
are di󰀨erent sizes and shapes. The zones are programmed
by ELS and must not be altered. The zones are calibrated to
ignore machine components always within their view such as
the cage frame on the front unit and the support frame for the
third conveyor. If a warning zone is activated, the machine will
slow down and steer away from it automatically. If a stop zone is
activated, the machine will stop driving and the conveyor belts will
shut o󰀨 and/or stop the platform from lowering.
A scanner LED box is installed on the Control panel. The LEDs
on the box indicate which area the scanner is detecting an object
and whether it is in the warning zone (LED ashes) or stop zone
(LED is solid). The scanner display box will also activate a Zero
Point Turn or Bypass LED which recommends the action needed
to move the machine away from the object.
The scanner body should never be adjusted or moved without
authorization rst. The scanner bodies are precisely positioned
and should never need adjustment.
AREA SCANNER BYPASS
The scanners can be temporarily bypassed by the operator if
the machine is in a position where it cannot move or the platform
won’t go down. Using the switches on either side of the front
conveyor, the operator can temporarily bypass the scanners to
move the machine. The operator can only move in one direction
(zero turn, forward or reverse) until the scanners re-activate.
Once the operator stops the machine travel, the area scanners
work again. If required, they can be bypassed again to perform
another movement of the machine, until the machine is clear of the
obstruction. This procedure can be done in either AC or DC mode.

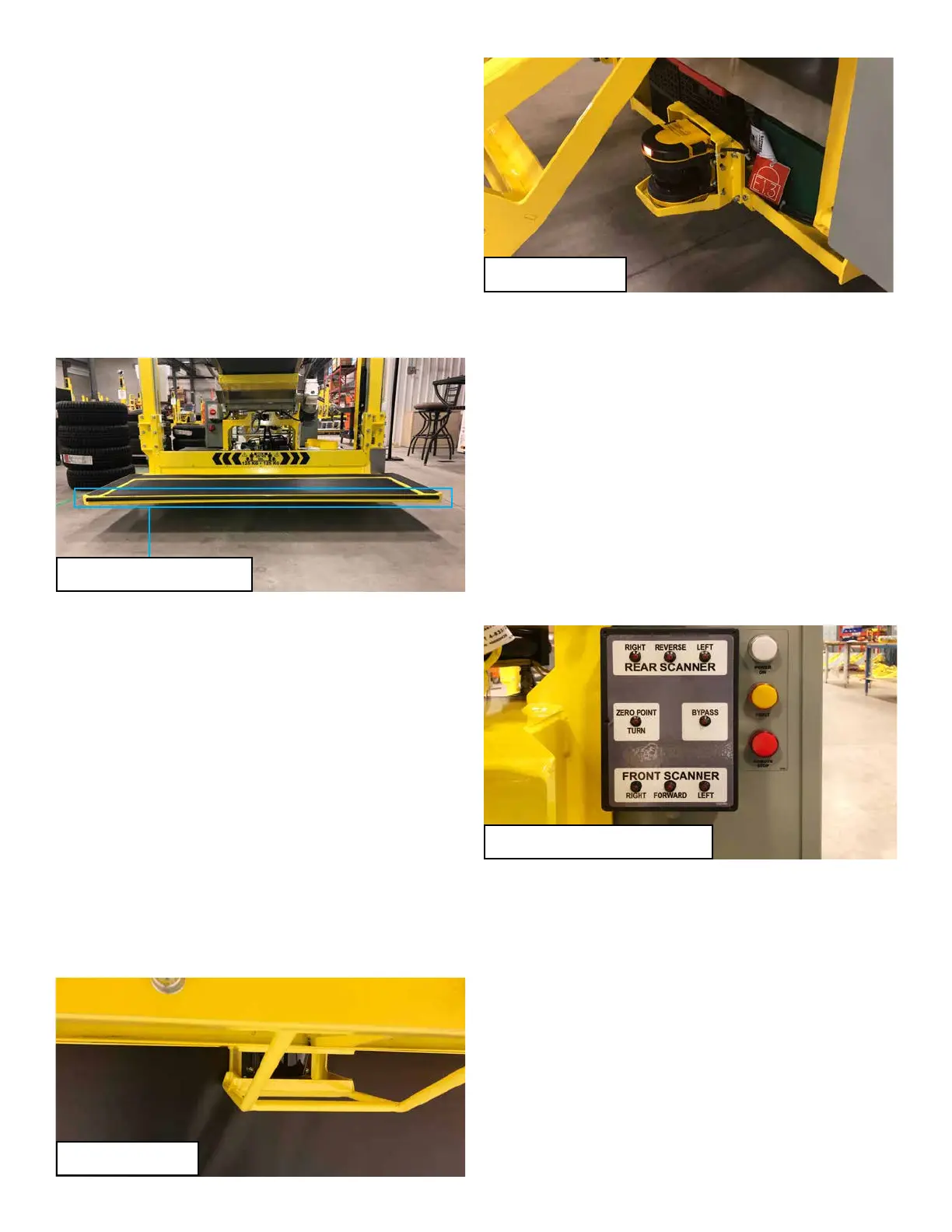

Front Area Scanner
Scanner LED Box (Control Panel)
Rear Area Scanner
Front Sensing Edge Switch
