STARTING THE MACHINE
IMPORTANT: Only persons who are appropriately trained and
qualied with the safe operation and service of this machine
should be allowed to carry out operation, installation, service or
maintenance.

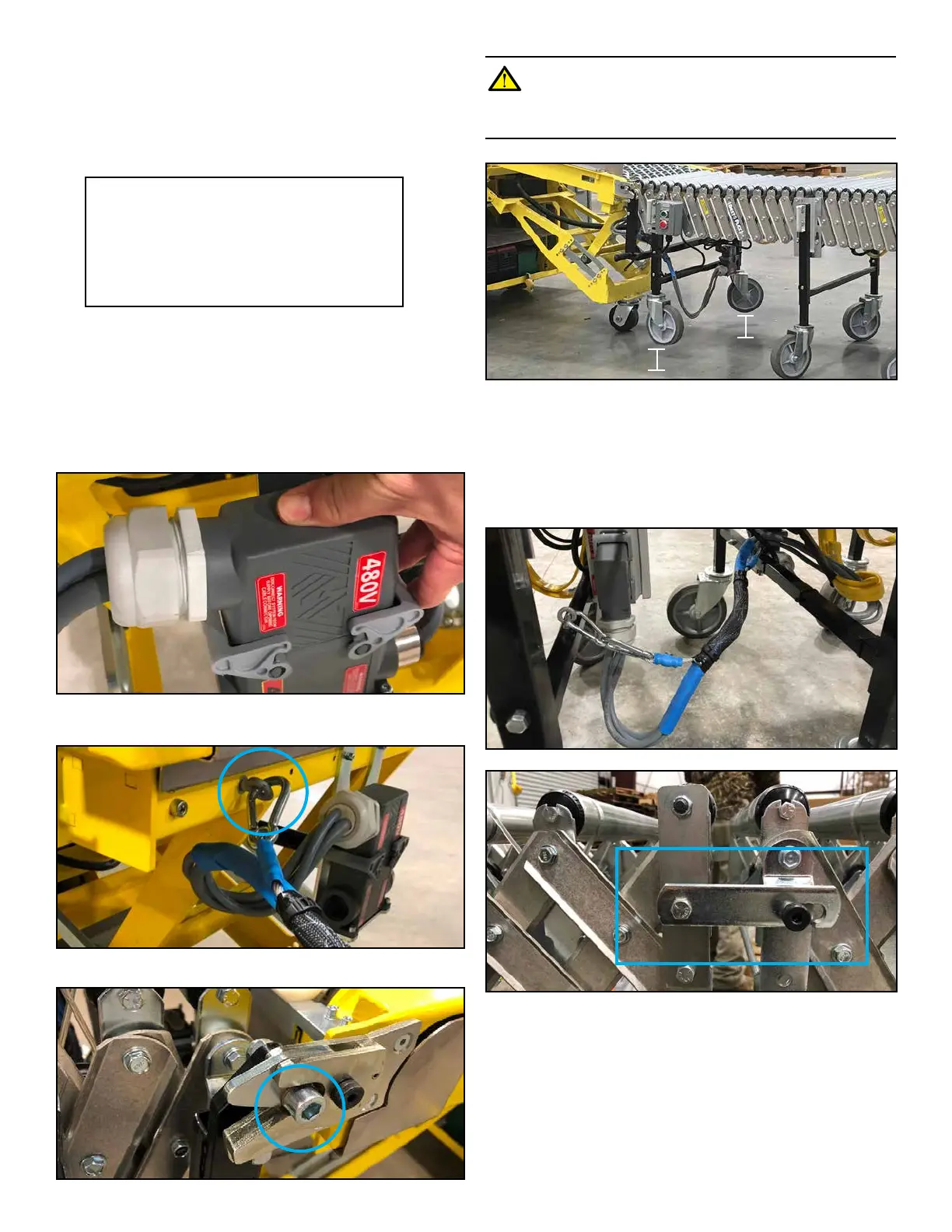

CONNECT RESTUFF-IT TO FLEX CONVEYOR 1
ALWAYS ensure power is OFF using AC Selector on left mast
prior to connecting unit.
1. Bring ex conveyor into position to unit.
2. Connect plug to receptacle.
3. Connect carabiner end of strain relief to eye bolt.
4. Lift and push ex conveyor into latching brackets.
Ensure front conveyor legs are raised 3 inches o󰀨 the
ground. If this step is not followed, damage will occur
to the ex conveyor. It is recommended that two people
connect conveyor to machine.
CONNECT CONVEYORS 1 AND 2
1. Bring both ex conveyors into position.
2. Connect cable to receptacle.
3. Connect strain relief cable.
4. Engage two hook plates.
3” clearance
Follow this sequence to start up machine:
1. Connect Restu󰀨-it
TM
to Flex Conveyor 1
2. Connect Flex Conveyor 1 and 2
3. Connect Conveyor to Remote Panel
4. Connect Power to Remote Panel
