860-7104-19 DTB Operation Manual

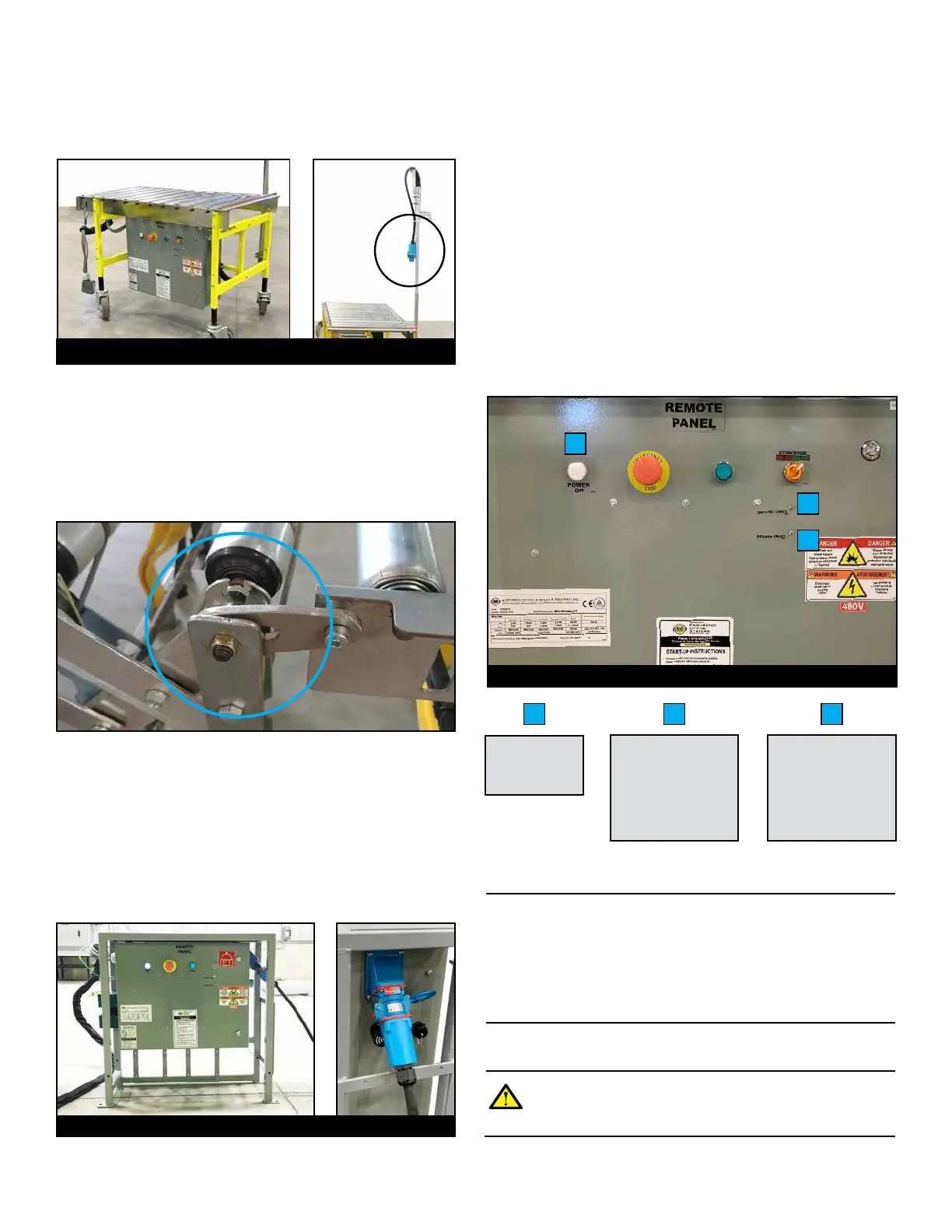

CONNECT CONVEYOR TO REMOTE PANEL
Method 1: Suspended Power Drop (connected to cable
in post in the Remote Section)
1. Bring Conveyor and Remote Section into position.
2. Connect cable from Remote Panel to receptacle at the end of
the Conveyor.
3. Connect strain relief.
4. Engage two hook plates of Remote Section onto the two
shafts on the Flex Conveyor.
Method 2: Conduit attached to the fused disconnect
(connected from fused disconnect to Remote Panel)
1. Bring Conveyor near Remote Panel.
2. Connect cable from Remote Panel to receptacle at the end
of Conveyor.
3. Connect strain relief.
CONNECT POWER TO REMOTE PANEL
Method 1:
1. Ensure power supply from the building is OFF.
2. Connect Remote Panel to facility’s power supply with
Meltric Connector at the end of the post in the Remote
Section.
3. Use Power Drop kit to ensure cables are o󰀨 the oor. Refer
to Power Drop kit information located under Facility Power
Supply.
Method 2:
1. Ensure power supply from building is OFF.
2. Connect cable from facility’s power supply to Remote
Panel with Meltric connector.
Start Light:
3-phase power
is present.
Green LED:
Ground check.
Cables connected
and ground
conductor in place.
Red LED: Ground
fault. Maintenance
required
to correct and
reset.
B
C
A
A B C
Remote Panel
NOTE: Customer power supply must be fed from a oor-mounted
disconnect near machine. Customer power supply cable
(suspended from above) is connected to Meltric connector at top
of post on remote section (Method 1) or directly connected to
an anchored Remote Panel (Method 2), ensuring absolutely NO
cables are on oor. NEVER unplug or plug in cables unless the
system is o󰀨 and isolated.
ALWAYS ENSURE POWER SUPPLY IS OFF BEFORE
CONNECTING OR DISCONNECTING ELECTRICAL
CABLES TO THE REMOTE PANEL.
Remote Section (Mobile)
Remote Panel (Anchored)
