38
860-7104-19 DTB Operation Manual
5. Select direction of product to be transferred.
6. To start conveyor, rotate the RUN control selector switch on
pivoting conveyor towards the front of the machine.
7. Adjust speed control dial to suit handling of product.
8. To STOP conveyor, rotate RUN control selector switch on
pivoting conveyor towards the back of the machine.
On loading mode, turn selector switch once. Belts on machine and
connected conveyor will stop.
NEVER overload conveyors.
NEVER allow motors to continue to run under a jammed product.
NEVER unplug conveyors with the power on.
PROCEDURE TO SAFELY DISCONNECT CONVEYOR
1. Turn unit o at remote section.
2. Mechanically disconnect sections.
3. Electrically unplug.
4. Store plug in storage receptacle.
Conveyor is powered and has multiple hazardous
pinch points. Do not put hands where parts are
moving and wear tted clothing.
X
X

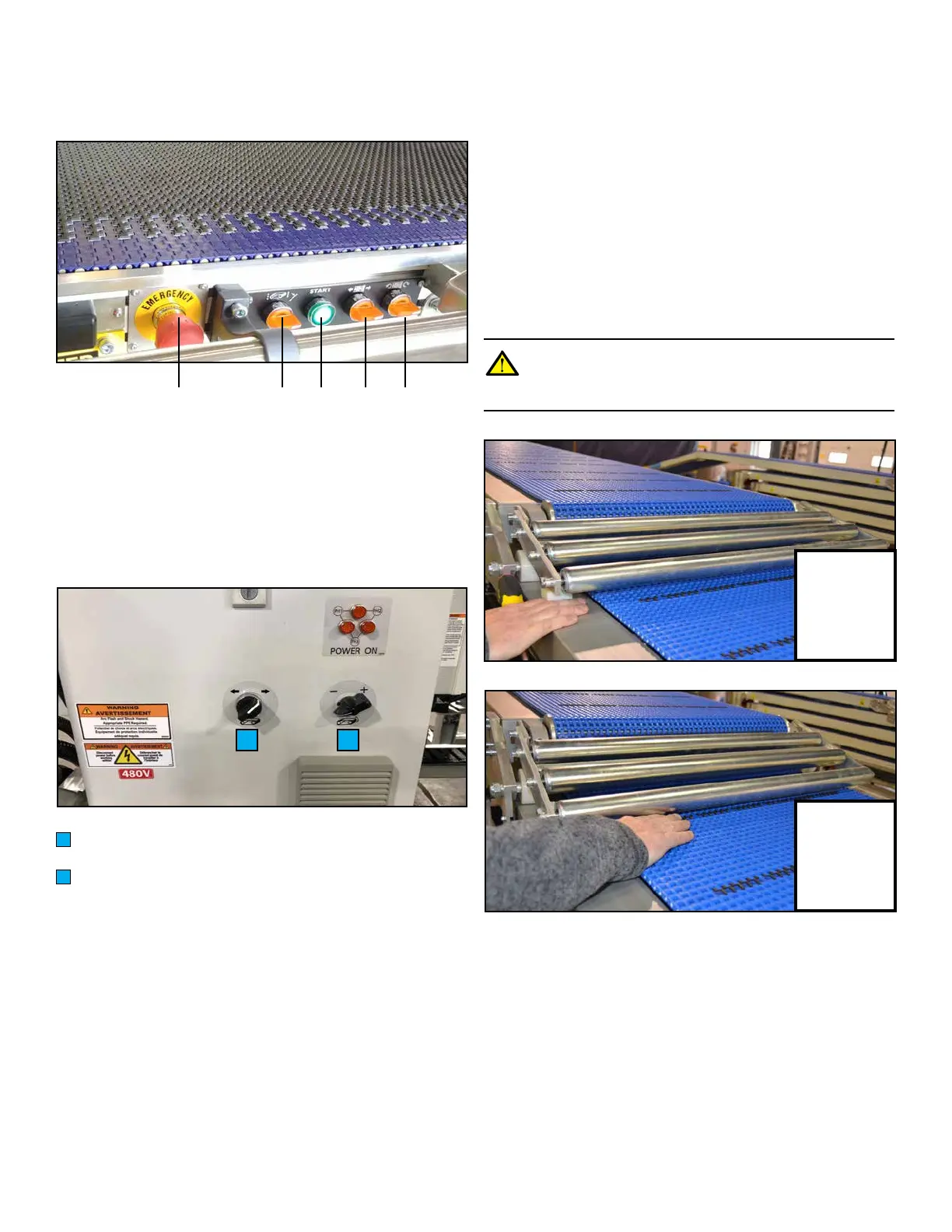

Conveyor Directional 3 position switch
(LOAD/STOP/UNLOAD)
Speed Control dial
A
B
A B
A - Emergency Stop
B - Conveyor Selector switch (RUN/OFF/JOG)
C - START button
D - Machine Travel switch (forward/reverse)
E - Machine Zero Turn switch
A B C D E
