860-7104-19 DTB Operation Manual
helpful for heavy packages. Packages must be minimum size of
8” long x 4” wide x 4” high.
LED constantly shows AMBER, then GREEN when product
travels freely.
Ideal for:
• Heavy packages.
• Loading near top of box wall.
• Gaps between packages are too small.
Belt never stops unless operator requests next package to
stop. To request package to stop, quickly tap the underside of
rotary handle (LH or RH side). Belt status LED will turn AMBER
indicating the next box will stop. Request must be made before
the package enters the rst sensor. Belts remain stopped until
package is removed from sensors.
Belt can be restarted from the conveyor RUN Selector Switch.
This is very helpful for heavy packages. Packages must be a
minimum size of 8” long x 4” wide x 4” high and gaps of 4 ft
between packages.
LED constantly shows GREEN, then AMBER to show that the
box is about to stop, and RED when product is fully stopped.
Ideal for:
• Light packages.
• Building lower two thirds of box wall.
Belts always run. Packages never stop at end of conveyor.
Machine sensors never stop the product.
LED always shows GREEN.
Ideal for:
• Very small packages.
• Use with two operators.
Belt stops for every package entering rst pair of sensors. Belts
remain stopped until package is removed from sensors. Belt can
be restarted from conveyor RUN selector switch. This is very
helpful for heavy packages.
LED constantly shows AMBER and RED when product is
stopped.
Ideal for:
• Heavy packages.
• Loading near top of box wall.
Belt stops for every package unless operator requests package to
pass through. To request package to pass through and not stop,
quickly tap underside of rotary handle (LH or RH side). Belt status
LED will turn green indicating next box will pass through.
Request must be made before package enters rst sensor.
Package stops when box is detected by rst sensor pair. Belts
remain stopped until package is removed from sensors. Belt can
be restarted from conveyor RUN selector switch. This is very

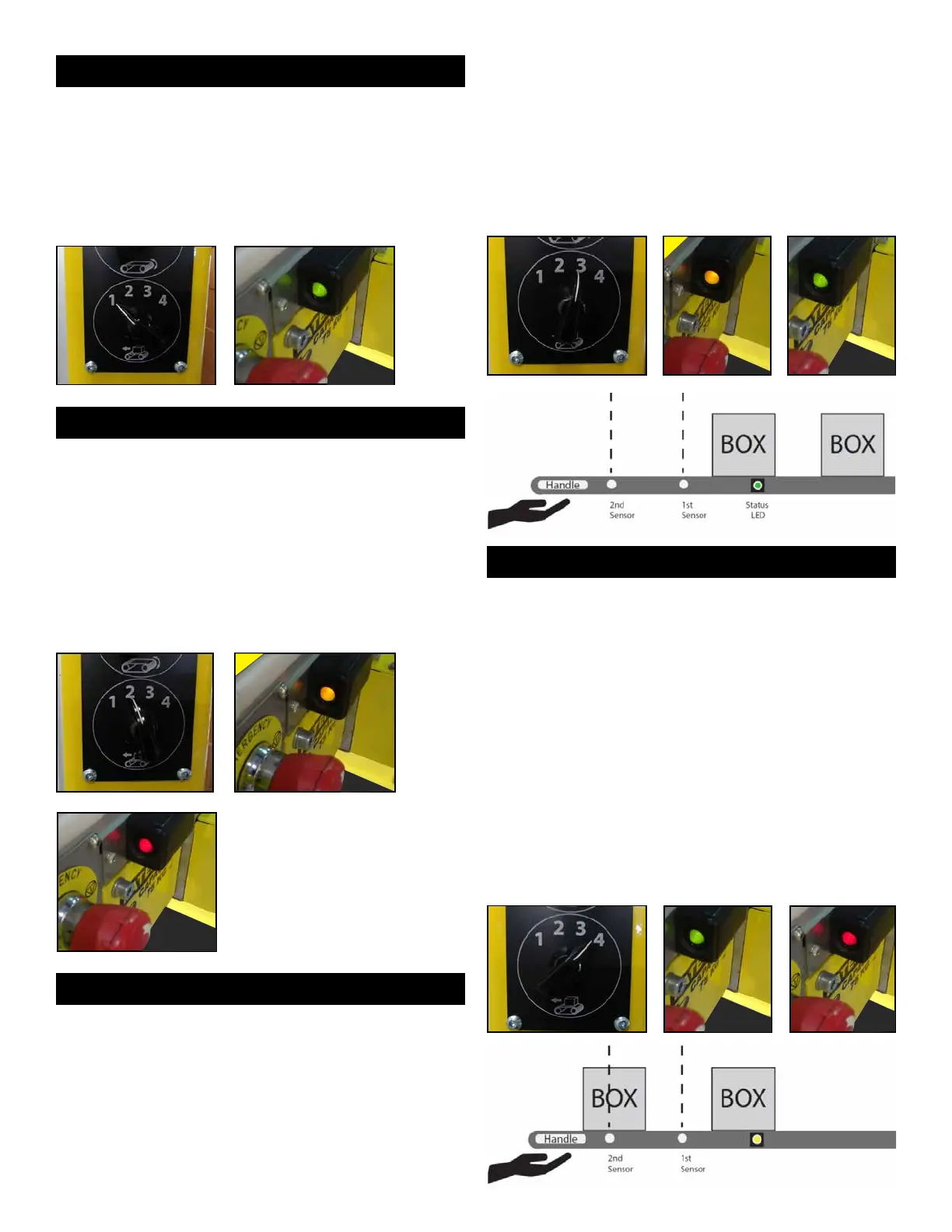

MODE 1 - NEVER STOP
MODE 2 - ALWAYS STOP
MODE 3 - CONTROLLED GO
MODE 4 - CONTROLLED STOP
