5/16" WASHER
5/16" X 1-1/2"
HEX BOLT
UNDERSIDE OF ROCK WALL AND FORT DECK
T-NUT
3/4"
ROCK WALL
(CENTER IT IN THE CUT
OUT AREA OF THE
FRONT FACE BOARD.)

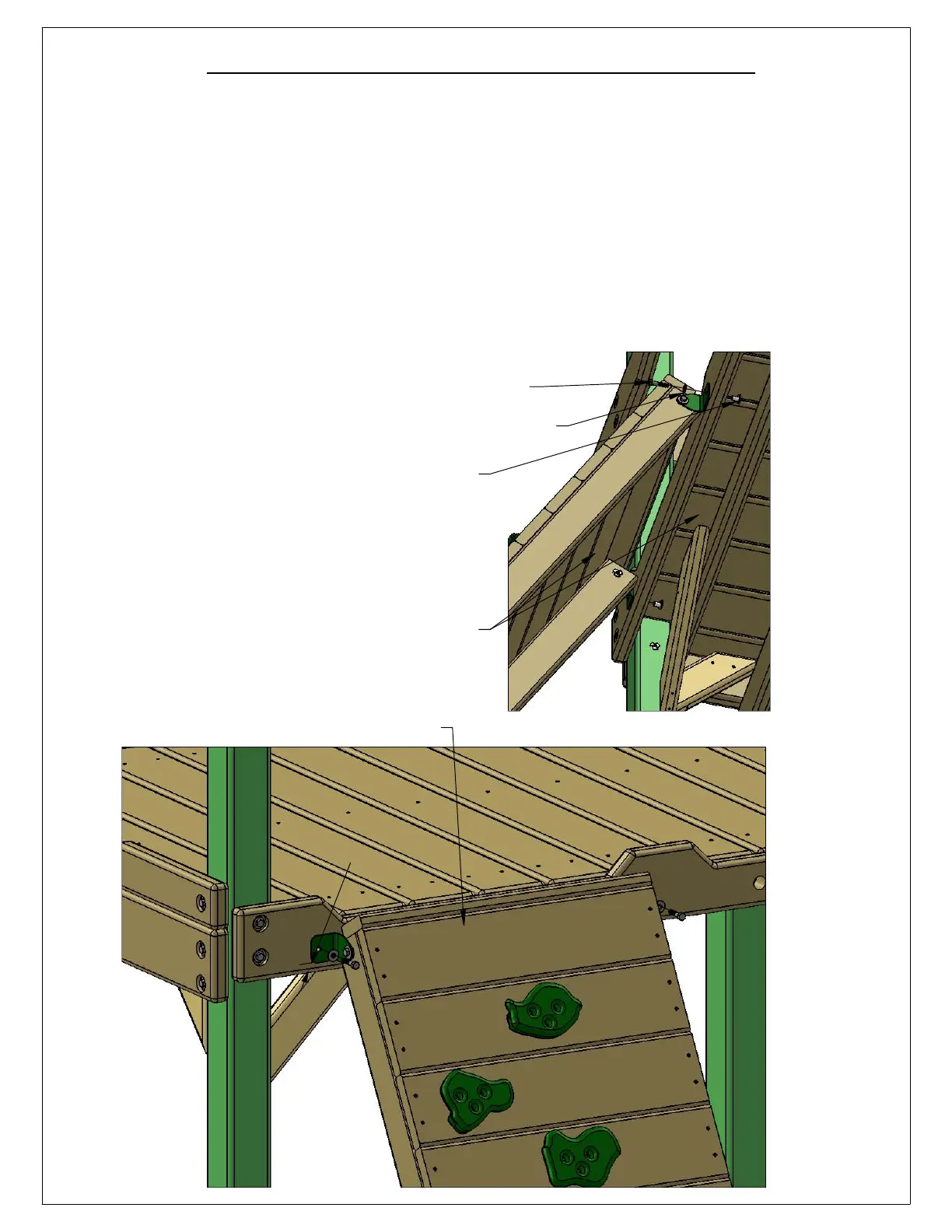

STEP 18: ATTACHING THE ROCK WALL
1: PLACE THE ROCK WALL INTO POSITION CENTERED ON THE FRONT - LEFT CUT OUT AREA
OF THE FORT AS SHOWN BELOW. THE GREEN BRACKETS SHOULD BE 3/4" ABOVE THE
BOTTOM OF THE FRONT FACE BOARD. USING THE 90 GREEN BRACKETS AS A TEMPLATE;
DRILL A 3/8” HOLE THROUGH THE FRONT FACE BOARD.
2: GO UNDERNEATH THE DECK TO INSERT A T-NUT INTO THE BACKSIDE OF THE 3/8” HOLES
IN THE FRONT FACE BOARD.
3: ATTACH THE ROCK WALL WITH 5/16 X 1-1/2” BOLTS AND 5/16” WASHERS.
4: WHEN THE BRACKETS ARE SECURE, AND THE ROCK WALL IS IN ITS FINAL POSITION;
TIGHTEN THE 5/16 X 1-1/2” BOLTS ON THE ROCK WALL SIDES.
