Gorilla Treasure Trove II User Manual

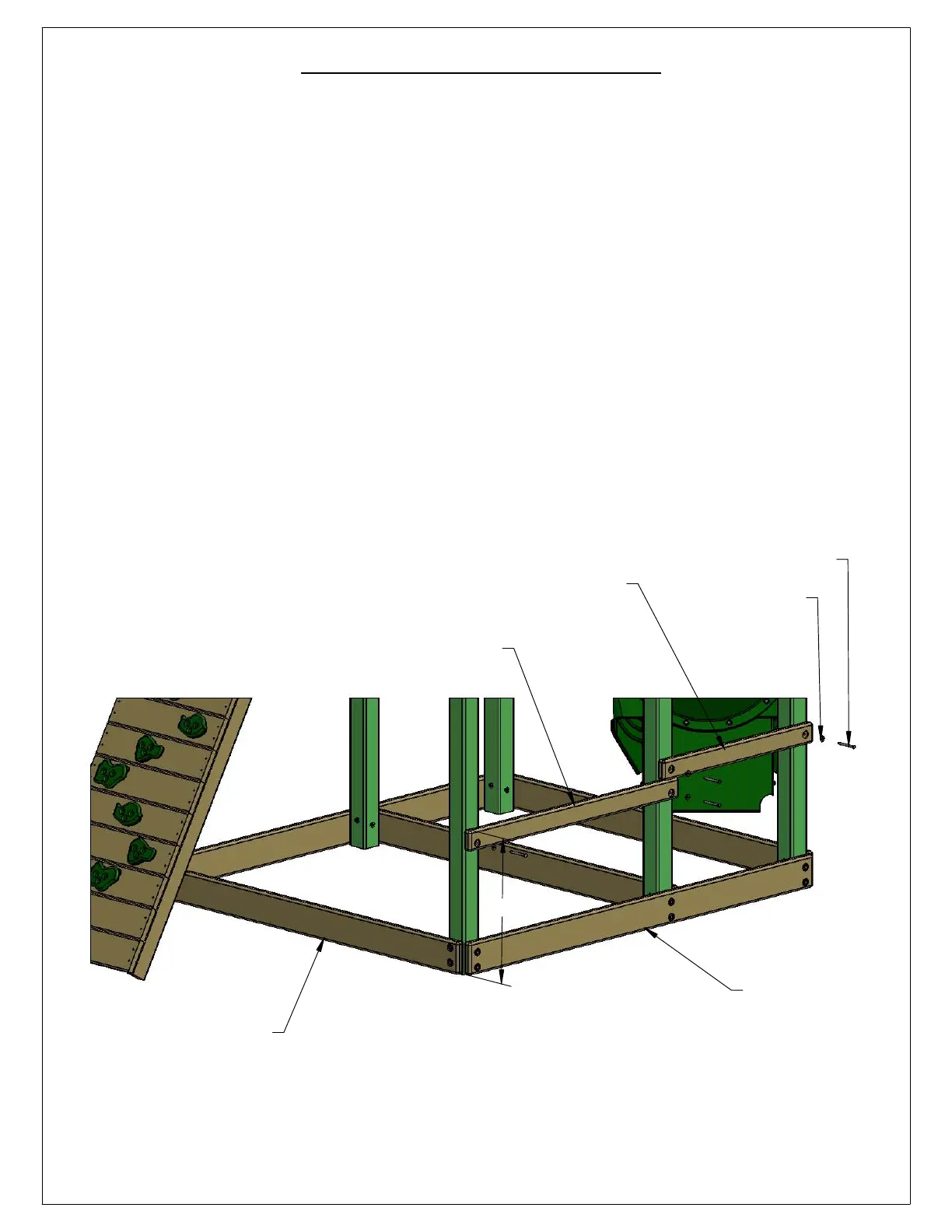

1: MEASURE 24" FROM THE BOTTOM OF THE CORNER POSTS ON THE RIGHT SIDE OF THE FORT. MARK THESE
POSITIONS ON THE OUTSIDE OF THE CORNER POSTS. ATTACH THE 2 X 4 X 47-1/2" SAFETY BOARD WITH OFFSET
HOLES ON THE CORNER POSTS WITH 5/16 X 3-1/2" LAG SCREWS AND 5/16 WASHERS.
2: PLACE THE 2 X 4 X 34" SAFETY BOARD (UPPER LEVEL) ON TOP OF THE 2 X 4 X 47-1/2" SAFETY BOARD
(LOWER LEVEL). ATTACH IT WITH 5/16" X 3-1/2" LAG SCREWS AND 5/16" WASHERS.
NOTE: THE OFFSET HOLES CAN BE PLACED UP OR DOWN IN THIS STEP.
STEP 56: SAFETY BOARDS
5/16" WASHER
SAFETY BOARD
2 X 4 X 47-1/2"
FRONT OF FORT
5/16" X 3-1/2"
LAG SCREW
2 X 4 X 34"
SAFETY BOARD
RIGHT SIDE
OF FORT
24"
101
