Gorilla Treasure Trove II User Manual

OF THE T-NUT.
STEERING
1" BELOW CENTER
WHEEL
DRILL 3/16" HOLE
INSERTWASHER
WHEEL
STEERING
SCREW
LAG
2-1/2"
STEERING
WHEEL
CAP
1: GO TO THE REAR CENTER POST ON THE DECK (UPPER LEVEL).
2: DRILL A 3/16" PILOT HOLE 1" BELOW THE CENTER OF THE T-NUT. DRILL THE HOLE 2" DEEP.
3: PLACE THE STEERING WHEEL INSERT INSIDE THE STEERING WHEEL.
4: USE THE 2-1/2" LAG SCREW AND WASHER TO FASTEN THE STEERING WHEEL TO THE REAR
CENTER POST. DO NOT OVER-TIGHTEN THE LAG SCREW OR THE STEERING WHEEL WILL
NOT TURN.
5: PLACE THE STEERING WHEEL CAP OVER THE STEERING WHEEL AND SNAP IT INTO THE
STEERING WHEEL INSERT.

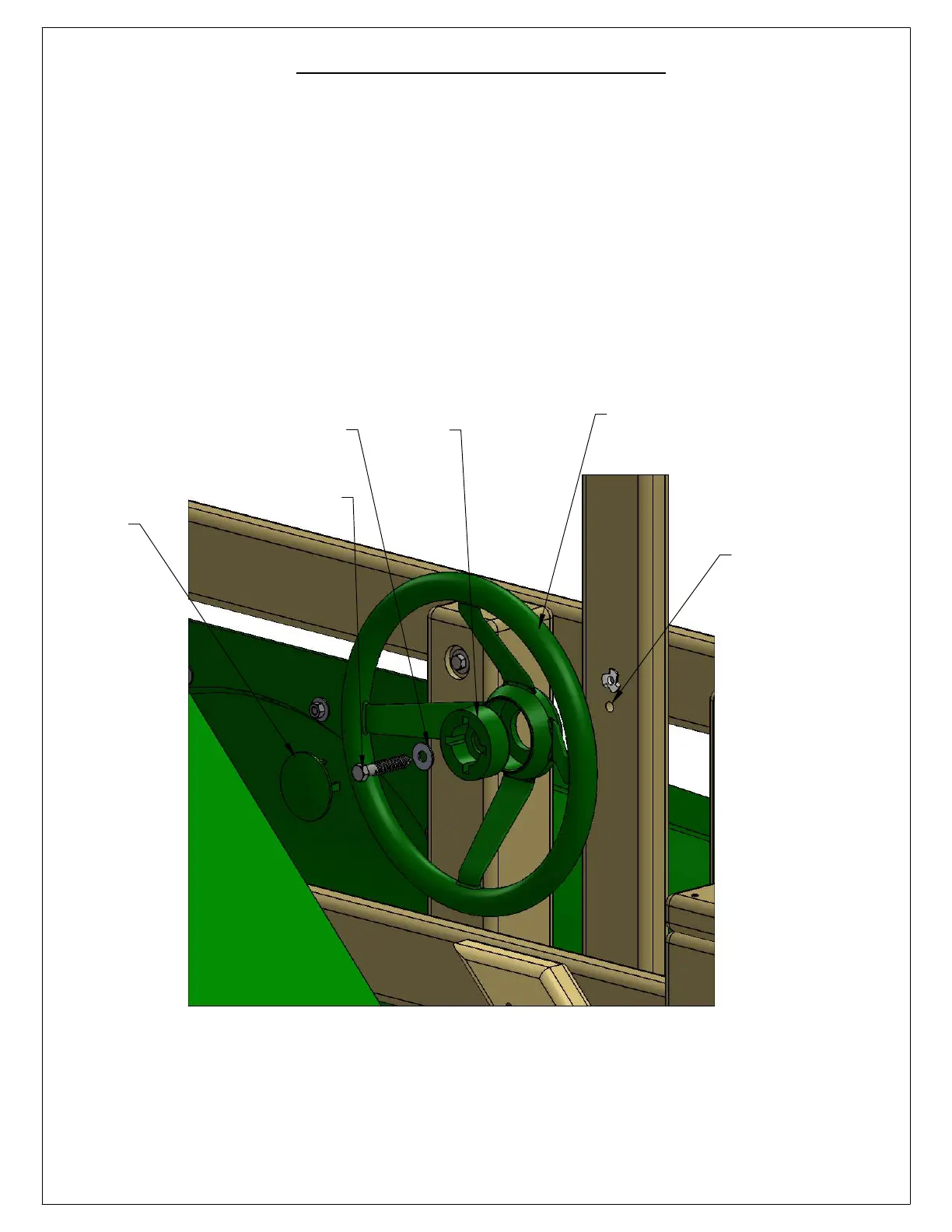

STEP 69: STEERING WHEEL
114
