HEX BOLT
2 X 4 X 36-3/4"
5/16 X 4-1/2"
(OFFSET DOWN)
BOARD
5/16" WASHER
TOP PANEL
2 X 6 X 36-3/4"
SANDBOX BOARD
REAR OF TOWER
B
A
5: DO NOT INSTALL LAG SCREWS AT THIS TIME.
C

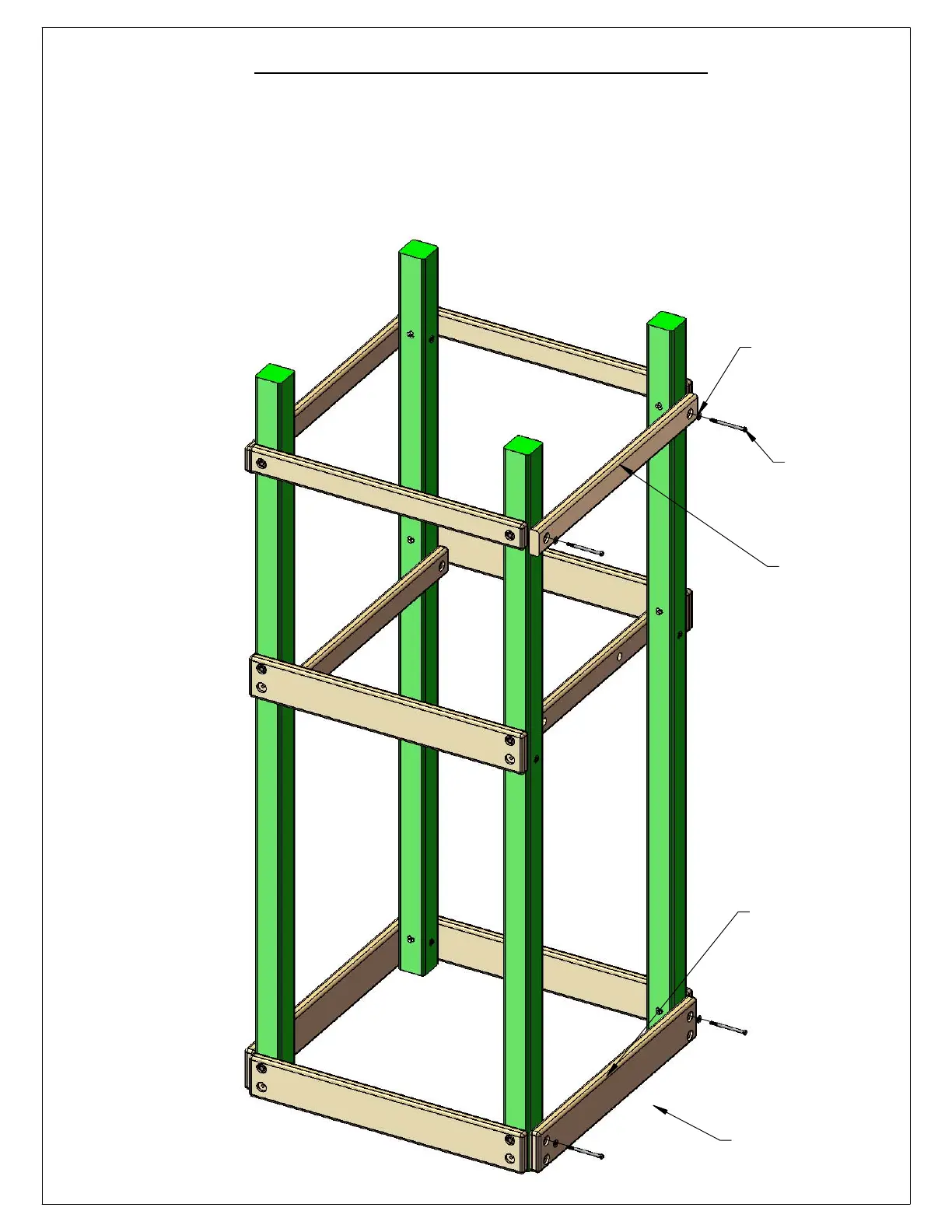

STEP 6: REAR FRAME ASSEMBLY
1: PLACE THE 2 X 6 X 36-3/4" SANDBOX BOARD ON THE REAR OF THE CORNER POSTS. THE HOLES IN THE
SANDBOX BOARD SHOULD BE OFFSET DOWN.
2: USE 5/16 X 4-1/2" HEX BOLTS AND 5/16" WASHERS TO ATTACH THE TOP HOLES OF THE SANDBOX BOARD TO THE
T-NUTS INSTALLED ON THE CORNER POSTS. THE BOTTOM HOLES WILL BE USED LATER.
3: PLACE THE 2 X 4 X 36-3/4" TOP PANEL BOARD ON THE REAR OF THE CORNER POSTS.
4: USE 5/16 X 4-1/2" HEX BOLTS AND 5/16" WASHERS TO ATTACH THE HOLES OF THE TOP PANEL BOARD TO
THE T-NUTS INSTALLED ON THE CORNER POSTS.
