Gorilla Treasure Trove II User Manual

3/8" WASHER
3/8" LOCK NUT
CARRIAGE BOLT
3/8 X 3-1/2"
BOLT CAP
SWING BEAM PLATE

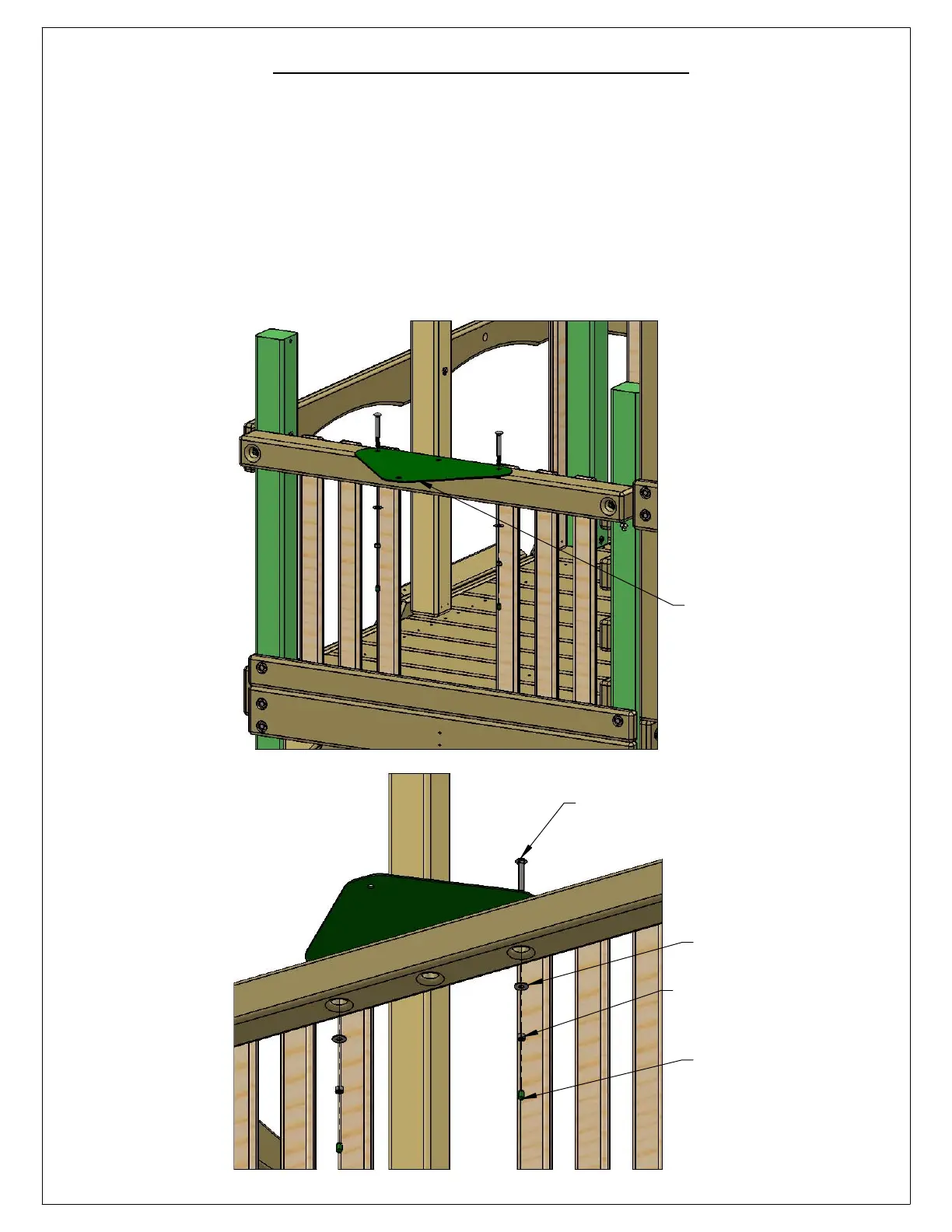

STEP 45: SWING BEAM PLATE
1: PLACE THE SWING BEAM PLATE ON TOP OF THE SWING BEAM MOUNT, LINING UP THE
PILOT HOLES.
2: FASTEN THE SWING BEAM PLATE TO THE SWING BEAM MOUNT USING 3/8" X 3-1/2"
CARRIAGE BOLTS ON TOP AND 3/8" LOCK NUTS WITH 3/8" WASHERS FROM UNDERNEATH.
USE BOLT CAPS TO COVER ANY EXPOSED THREADS.
3: LEAVE THE MIDDLE HOLE EMPTY, IT WILL BE USED LATER.
4: IF NECESSARY USE LOCKING PLIERS TO HOLD CARRIAGE BOLTS IN PLACE WHEN
INSTALLING.
90
