Gorilla Treasure Trove II User Manual

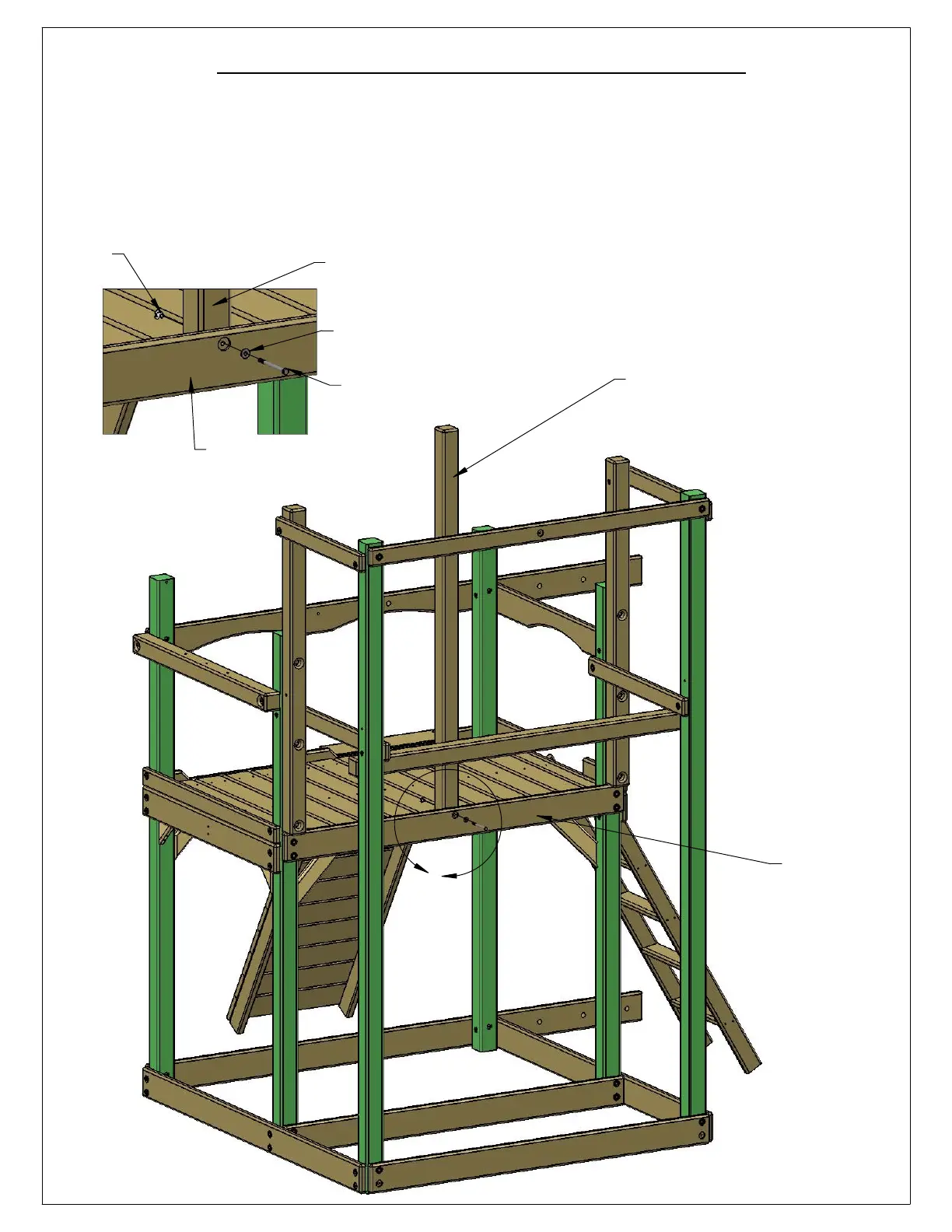

STEP 26: LOWER LEVEL CENTER POST
1: HAMMER A T-NUT INTO THE 4 X 4 X 71-7/8" REAR CENTER POST LOWER LEVEL.
2: ATTACH THE LOWER LEVEL CENTER POST TO THE MIDDLE HOLE OF THE 2 X 6 X 70" BACK
PANEL BOARD. USE A 5/16" X 4-1/2" HEX BOLT AND A 5/16" WASHER TO ATTACH THE
BOARDS TOGETHER.
3: HAVE AN ASSISTANT HOLD THIS BOARD UP FOR YOU AND PROCEED TO STEP 27.
4 X 4 X 71-7/8"
LOWER LEVEL
REAR CENTER POST
2 X 6 X 70"
BACK PANEL
BOARD
A
BACK PANEL BOARD
REAR CENTER POST
SCALE 1 : 10
DETAIL A
LOWER LEVEL
T-NUT
5/16" WASHER
4 X 4 X 71-7/8"
2 X 6 X 70"
5/16" X 4-1/2" HEX BOLT
71
