FRONT POST
HEX BOLT
5/16" WASHER
2 X 6 X 78"
2 X 6 X 47-1/2"
TOP PANEL BOARD
2 X 6 X 47-1/2"
SIDE SANDBOX BOARD-LEFT
BOTTOM PANEL BOARD
4 X 4 X 96"
HEX BOLT
LEFT SIDE OF FORT
FRONT OF FORT
5/16" WASHER
(LEFT SIDE)
5/16" X 4-1/2"
5/16" WASHER
5/16" X 4-1/2"
HEX BOLT
5/16" X 4-1/2"
4 X 4 X 96"
MIDDLE
POST
(LEFT SIDE)

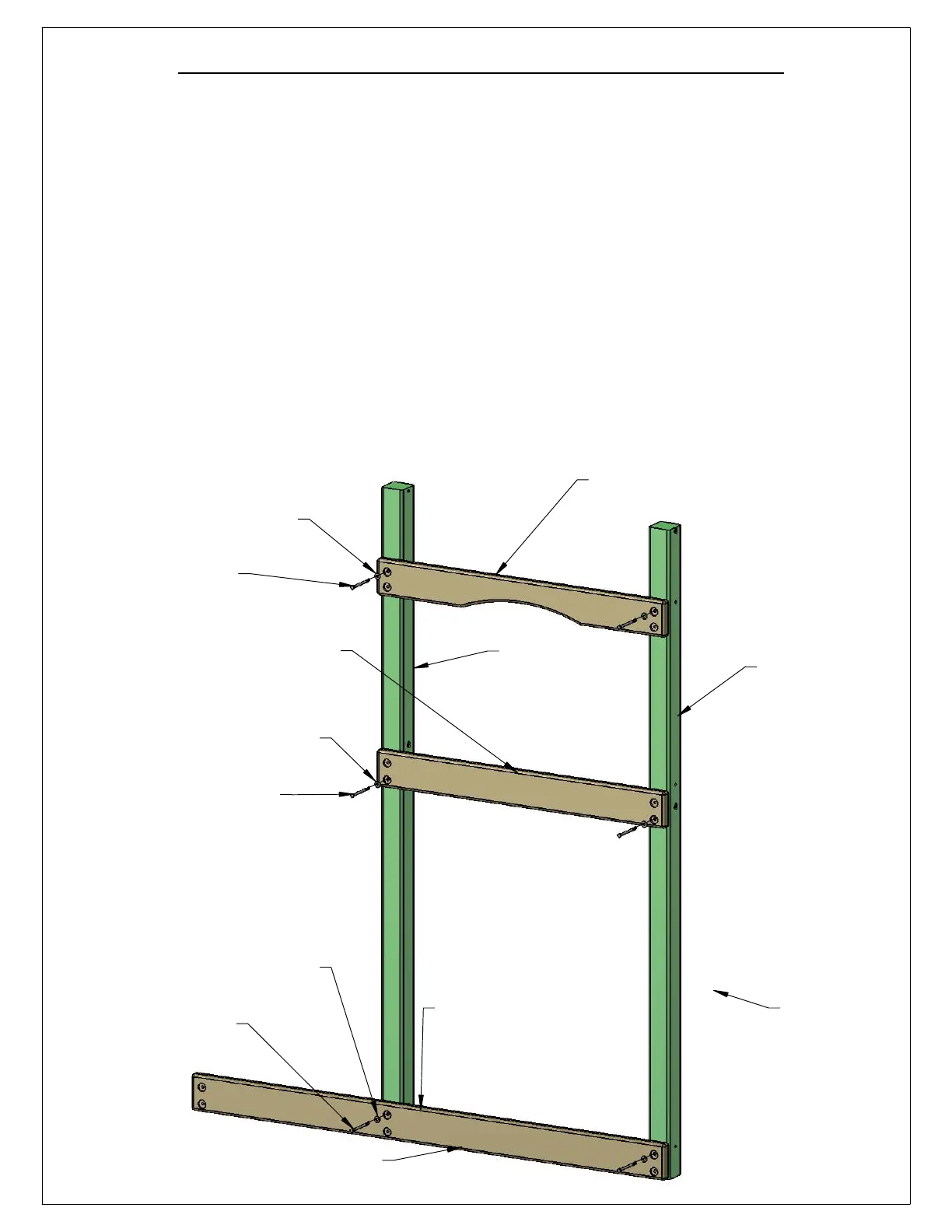

STEP 3: ASSEMBLING THE LEFT SIDE FRAME
1: LAY THE LEFT SIDE CORNER POSTS ON THE GROUND IN THEIR PROPER ORIENTATION.
2: LAY THE 2 X 6 X 78" SIDE SANDBOX BOARD - LEFT ON TOP OF THE LEFT SIDE CORNER POSTS AT THE BOTTOM
OF THE CORNER POSTS. THE HOLES IN THE SIDE SANDBOX BOARD - LEFT MUST BE OFFSET DOWN.
3: USE 5/16 X 4-1/2" HEX BOLTS AND 5/16" WASHERS TO ATTACH THE TOP HOLES OF THE SIDE SANDBOX BOARD
- LEFT TO THE T-NUTS INSTALLED ON THE CORNER POSTS. THE BOTTOM HOLES WILL BE USED LATER.
4: LAY THE 2 X 6 X 47-1/2" BOTTOM PANEL BOARD ON TOP OF THE LEFT SIDE CORNER POSTS IN THE MIDDLE OF
THE CORNER POSTS. THE HOLES IN THE BOTTOM PANEL BOARD MUST BE OFFSET DOWN.
5: USE 5/16 X 4-1/2" HEX BOLTS AND 5/16" WASHERS TO ATTACH THE BOTTOM HOLES OF THE BOTTOM PANEL
BOARD TO THE T-NUTS INSTALLED ON THE CORNER POSTS. THE TOP HOLES WILL BE USED LATER.
6: LAY THE 2 X 6 X 47-1/2" TOP PANEL BOARD ON TOP OF THE LEFT SIDE CORNER POSTS. THE HOLES IN THE TOP
PANEL BOARD MUST BE OFFSET DOWN.
7: USE 5/16 X 4-1/2" HEX BOLTS AND 5/16" WASHERS TO ATTACH THE TOP HOLES OF THE TOP PANEL BOARD TO
THE T-NUTS INSTALLED ON THE CORNER POSTS. THE BOTTOM HOLES WILL BE USED LATER.
