NO LAG SCREW HERE
LAG SCREW
5/16" X 3-1/2"
5/16" WASHER
3/4"

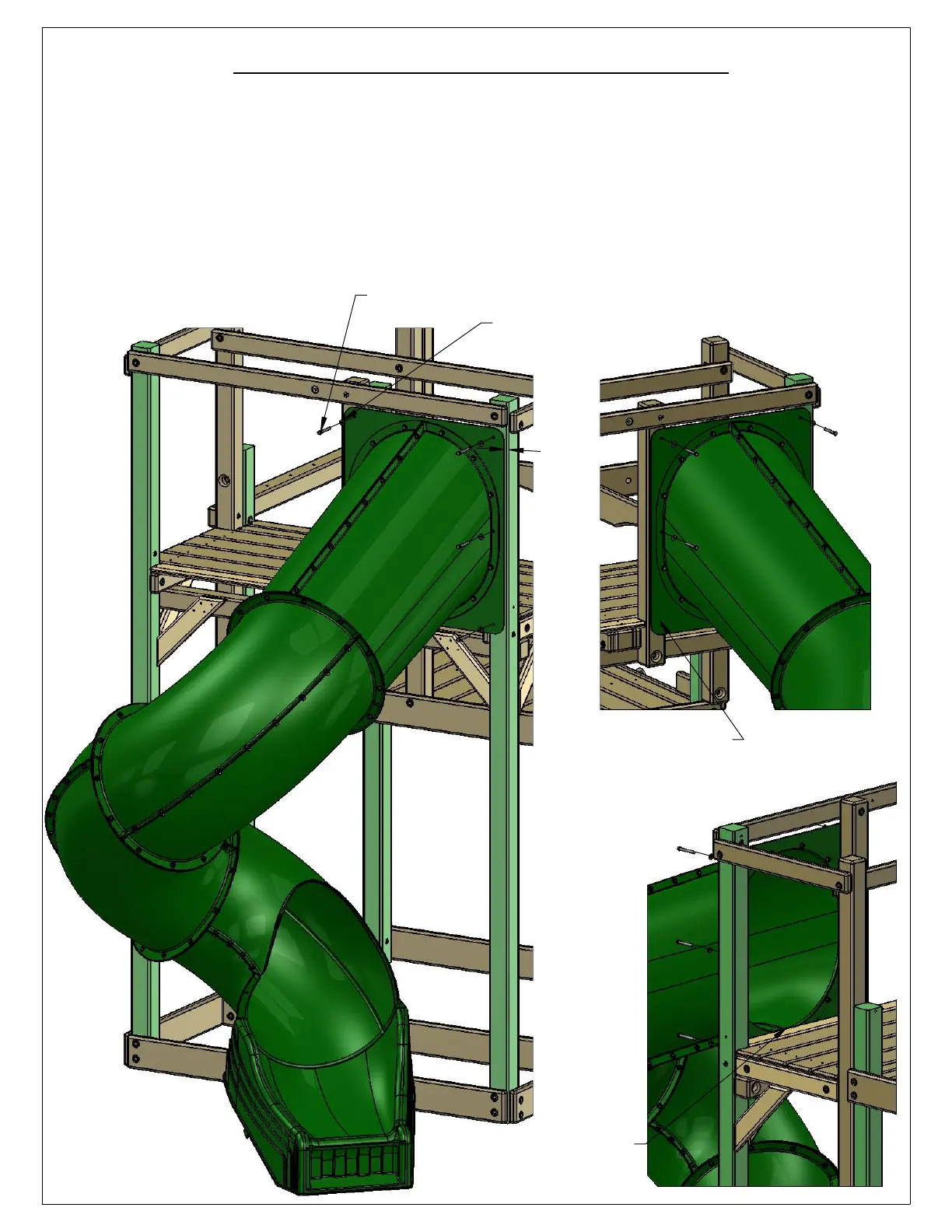

STEP 38: RADICAL RIDE TUBE SLIDE
1: ASSEMBLE THE RADICAL RIDE TUBE SLIDE ACCORDING TO THE DIRECTIONS INCLUDED WITH THE
SLIDE.
2: PLACE THE SLIDE FACEPLATE AT THE OPENING AT THE REAR OF THE PLAY SET. THE SIDE OF THE
FACE PLATE SHOULD BE 3/4" AWAY FROM THE CORNER POST SIDE.
3: THE BOTTOM OF THE SLIDE OPENING SHOULD BE FLUSH WITH THE UPPER LEVEL DECK.
4: ATTACH THE SLIDE FACE PLATE TO THE CORNER POST AND RAD RIDE CENTER POST WITH 5/16" X
3-1/2" LAG SCREWS AND 5/16" WASHERS. NOTE THERE WILL NOT BE A LAG SCREW ON THE
BOTTOM ON THE RAD RIDE CENTER POST SIDE.
SLIDE
OPENING
FLUSH TO
DECK
