Gorilla Treasure Trove II User Manual

PANEL SLATS (4 PIECES)
RIGHT SIDE UPPER LEVEL
PANEL SLATS (5 PIECES)
REAR-RIGHT SIDE UPPER LEVEL
" SPACING
8
5
2
2
3
4
"
5/4 X 3 X 34-1/2"
PANEL SLAT
(4 ON RIGHT SIDE)
5/4 X 3 X 34-1/2"
PANEL SLAT
(5 ON REAR-RIGHT SIDE)
"
2
1
2
2
7
8
" SPACING

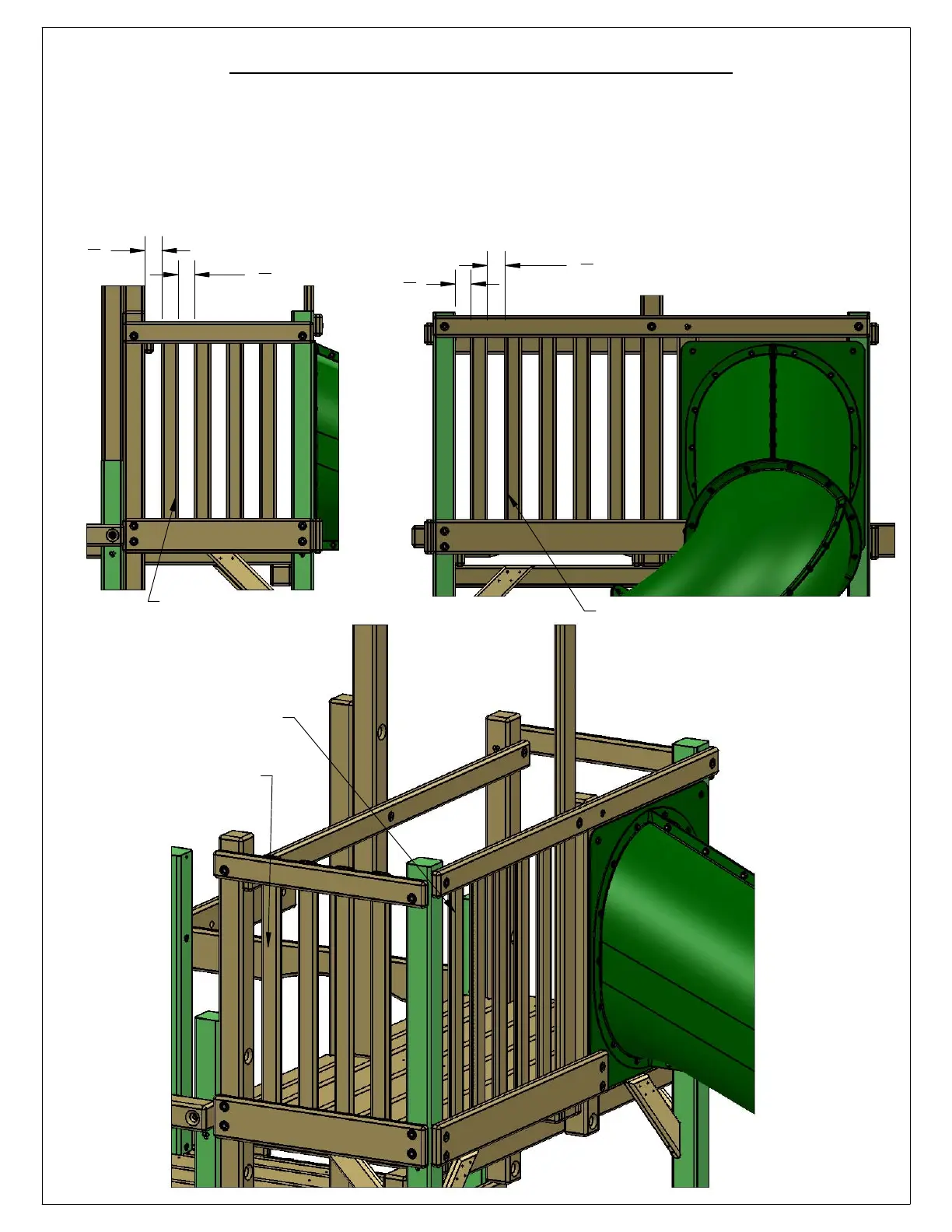

STEP 41: UPPER LEVEL PANEL SLATS
1: 5/4 X 3 X 34-1/2" PANEL SLATS WILL BE INSTALLED ON THE RIGHT AND REAR-RIGHT SIDES
OF THE PLAY SET. THE PANEL SLATS WILL BE INSTALLED ON THE INSIDE OF THE BOTTOM
PANEL BOARDS AND RAILINGS.
2: SPACE THE PANEL SLATS IN THE OPENINGS AS SHOWN BELOW. ATTACH EACH PANEL
SLAT WITH TWO #8 X 2" WOOD SCREWS.
86
