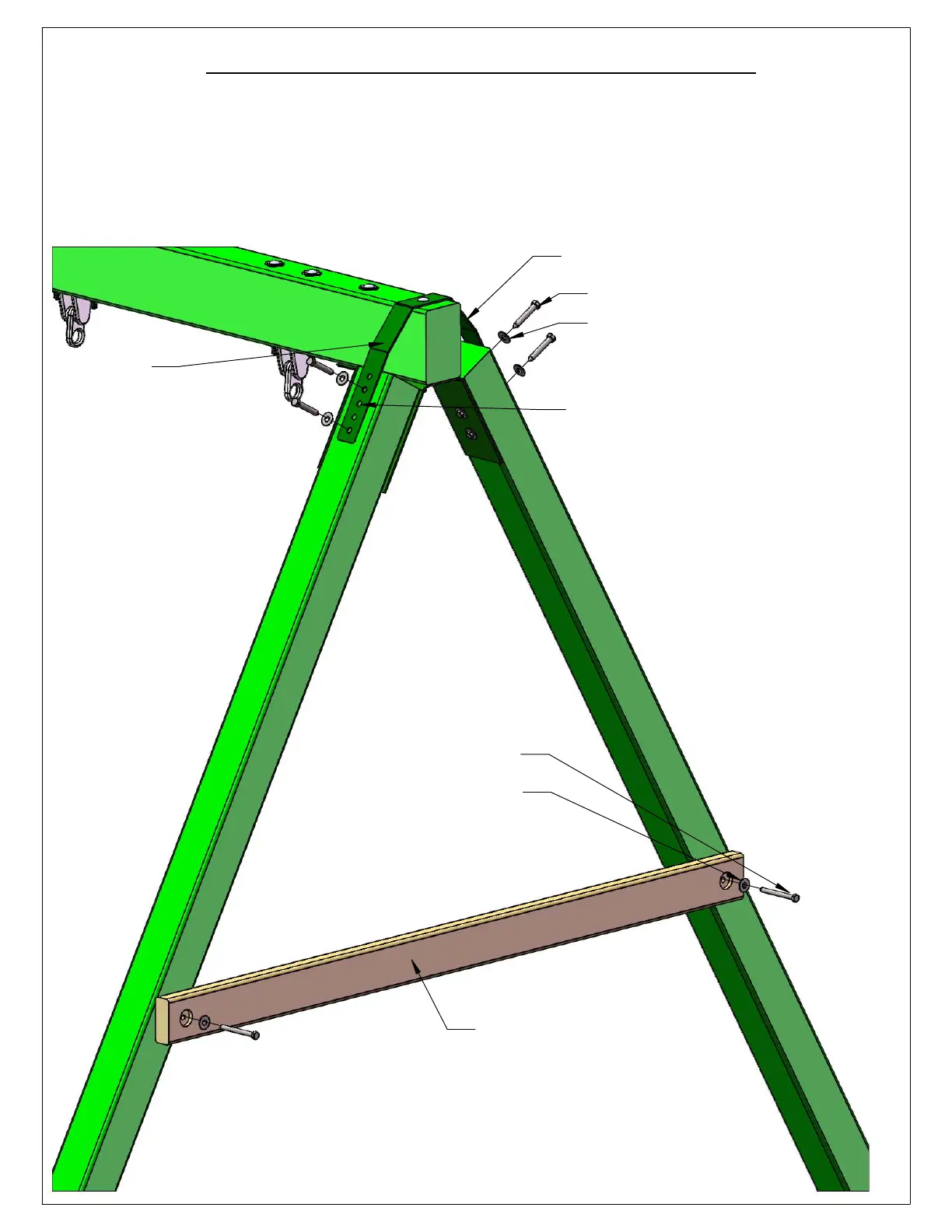

STEP 52: SWING LEG CROSS-MEMBER
1: POSITION THE 2 X 4 X 58" SWING LEG CROSS-MEMBER AGAINST THE SWING BEAM LEGS.
2: LEVEL CROSS-MEMBER AND MARK THE LOCATION OF THE SECURING HOLES INSIDE THE CROSS-MEMBER HOLES.
3: USE 3/8 X 3-1/2" LAG SCREWS WITH 3/8" WASHERS TO SECURE THE CROSS-MEMBER TO THE SWING BEAM LEGS.
4: CHOOSE TWO HOLES IN THE SUB BRACKET THAT DO NOT INTERFERE WITH THE OTHER LAG SCREWS IN THE SWING
LEG. DRILL 11/64" HOLES BY 2-1/2" DEEP INTO 2 HOLES IN THE SUB BRACKET. INSTALL TWO 3/8" X 2-1/2" LAG SCREWS
WITH WASHERS. REPEAT ON THE OTHER SIDE OF THE SUB BRACKET.
3/8 X 3-1/2"
3/8" WASHER
CROSS-MEMBER
2 X 4 X 58"
3/8" WASHER
SUB BRACKET
LAG SCREW
SUB BRACKET
3/8" X 2-1/2" LAG SCREW
CHOOSE HOLE LOCATIONS
THAT WILL NOT INTERFERE
WITH THE OTHER LAG SCREWS
IN THE SWING LEGS
