2 X 6 X 102"
ROPE LADDER RUNNER
2 X 6 X 70"
FRONT FACE
WASHER
5/16"
(FRONT LEFT STYLE)
(OFFSET UP)
(FRONT LEFT STYLE)
(OFFSET UP)
(OFFSET UP)
BOARD
2 X 6 X 102"
ROPE LADDER SUPPORT
5/16" X 4-1/2"
HEX BOLT
HOLES
FOR
CLATTER
BRIDGE

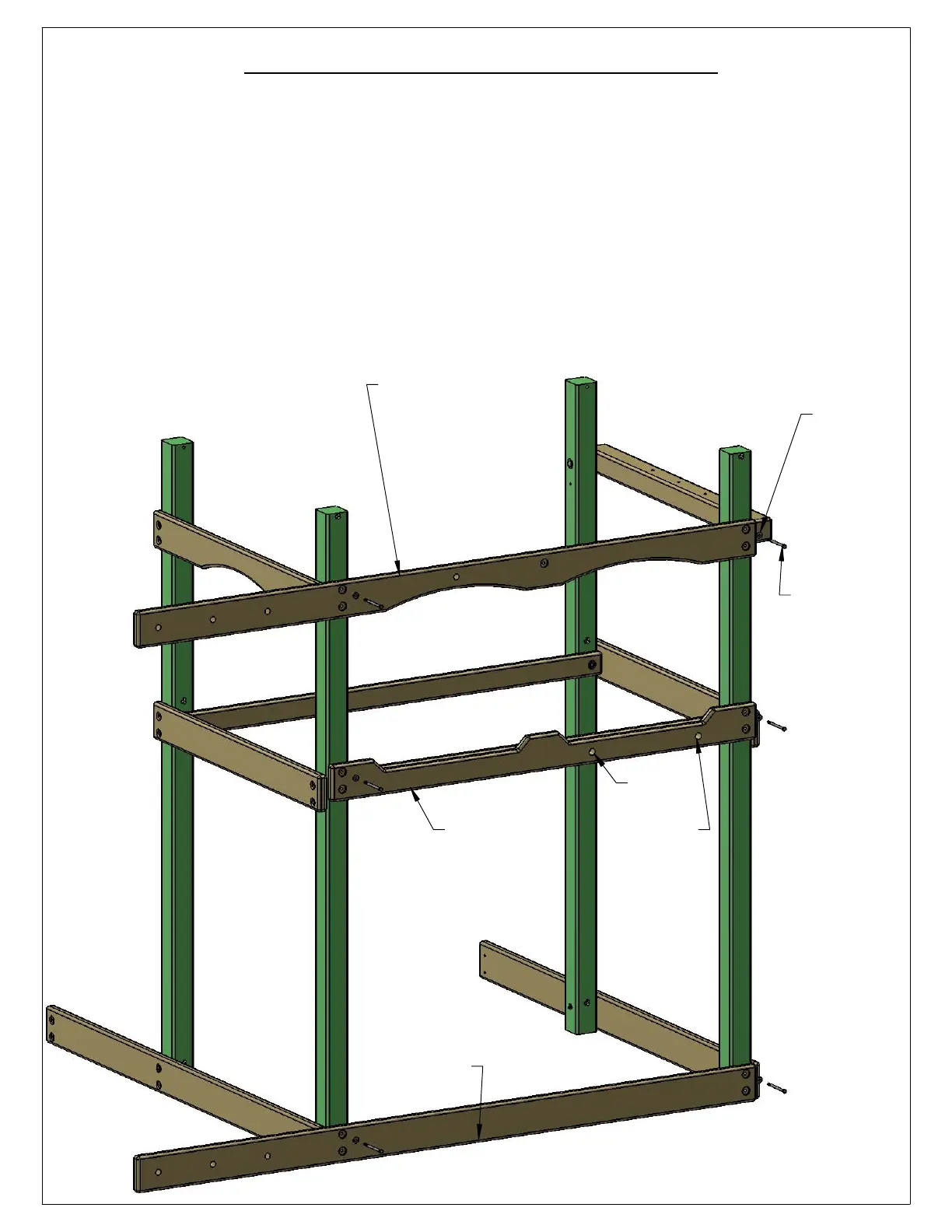

STEP 6: FRONT FRAME ASSEMBLY
1: PLACE THE 2 X 6 X 102" ROPE LADDER RUNNER ON THE FRONT OF THE CORNER POSTS. THE HOLES IN THE
ROPE LADDER RUNNER SHOULD BE OFFSET UP.
2: USE 5/16 X 4-1/2" HEX BOLTS AND 5/16" WASHERS TO ATTACH THE TOP HOLES OF THE ROPE LADDER RUNNER
TO THE T-NUTS INSTALLED IN THE CORNER POSTS. THE BOTTOM HOLES WILL BE USED LATER.
3: PLACE THE 2 X 6 X 70" FRONT FACE BOARD WITH NOTCHES ON THE FRONT OF THE CORNER POSTS. THE HOLES
IN THE FRONT FACE BOARD SHOULD BE OFFSET UP.
4: USE 5/16 X 4-1/2" HEX BOLTS AND 5/16" WASHERS TO ATTACH THE TOP HOLES OF THE FRONT FACE BOARD TO
THE T-NUTS INSTALLED IN THE CORNER POSTS. THE BOTTOM HOLES WILL BE USED LATER.
5: PLACE THE 2 X 6 X 102" ROPE LADDER SUPPORT ON THE FRONT OF THE CORNER POSTS. THE HOLES IN THE
ROPE LADDER SUPPORT SHOULD BE OFFSET UP.
6: USE 5/16 X 4-1/2" HEX BOLTS AND 5/16" WASHERS TO ATTACH THE TOP HOLES OF THE ROPE LADDER SUPPORT
TO THE T-NUTS INSTALLED IN THE CORNER POSTS.
