THE BACK SIDE OF
THE CORNER
POST
THE FLANGE OF
THE T-NUT
SHOULD BE ON
DETAIL A
SCALE 2 : 13
THE
FLANGE
OF THE
T-NUT
LOOKS
LIKE
THIS.
(OFFSET UP)
(OFFSET UP)
FRONT OF TOWER
2 X 4 X 36-3/4"
2 X 6 X 36-3/4"
SANDBOX BOARD
BOTTOM PANEL BOARD
TOP PANEL BOARD
5/16" WASHER
2 X 6 X 36-3/4"
5/16 X 4-1/2"
HEX BOLT
A
7: DO NOT INSTALL LAG SCREWS AT THIS TIME.
C

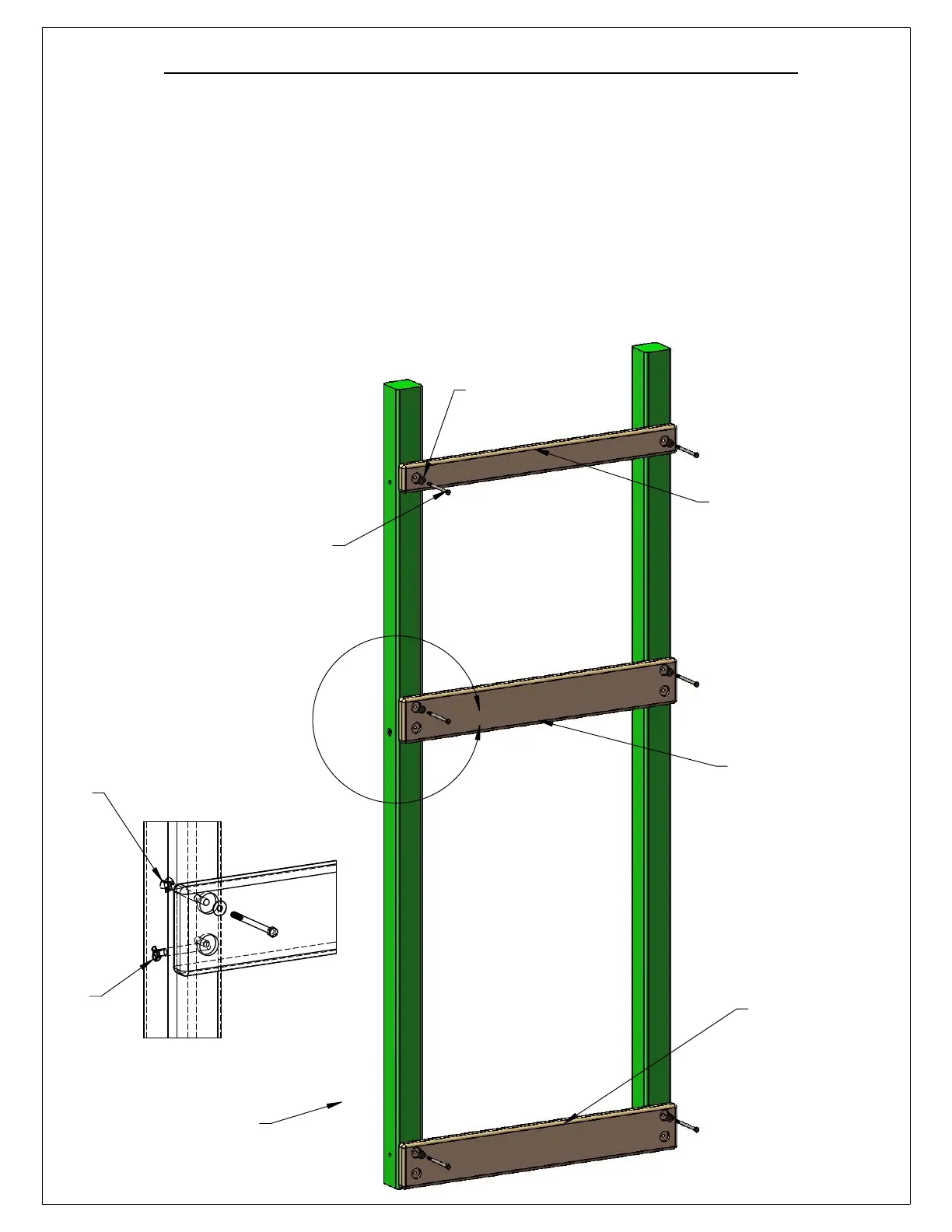

STEP 2: ASSEMBLING THE RIGHT SIDE FRAME
1: LAY THE 2 X 6 X 36-3/4" SANDBOX BOARD ON TOP OF THE RIGHT SIDE CORNER POSTS AT THE BOTTOM OF THE
CORNER POSTS. THE COUNTERSUNK HOLES IN THE SANDBOX BOARD MUST BE OFFSET UP.
2: USE 5/16 X 4-1/2" HEX BOLTS AND 5/16" WASHERS TO ATTACH THE TOP HOLES OF THE SANDBOX BOARD TO THE
T-NUTS INSTALLED ON THE CORNER POSTS. THE BOTTOM HOLES WILL BE USED LATER.
3: LAY THE 2 X 6 X 36-3/4" BOTTOM PANEL BOARD ON TOP OF THE RIGHT SIDE CORNER POSTS IN THE MIDDLE OF
THE CORNER POSTS. THE COUNTERSUNK HOLES IN THE BOTTOM PANEL BOARD MUST BE OFFSET UP.
4: USE 5/16 X 4-1/2" HEX BOLTS AND 5/16" WASHERS TO ATTACH THE TOP HOLES OF THE BOTTOM PANEL BOARD
TO THE T-NUTS INSTALLED ON THE CORNER POSTS. THE BOTTOM HOLES WILL BE USED LATER.
5: LAY THE 2 X 4 X 36-3/4" TOP PANEL BOARD ON TOP OF THE RIGHT SIDE CORNER POSTS.
6: USE 5/16 X 4-1/2" HEX BOLTS AND 5/16" WASHERS TO ATTACH THE COUNTERSUNK HOLES OF THE TOP PANEL
BOARD TO THE T-NUTS INSTALLED ON THE CORNER POSTS.
D
