Gorilla Treasure Trove II User Manual

A
B
STEP 4: DECK SUPPORTS
C
WASHERS FROM THE INSIDE OF THE CORNER POST.
YOU WILL NEED AN EXTRA PERSON FOR THIS STEP.

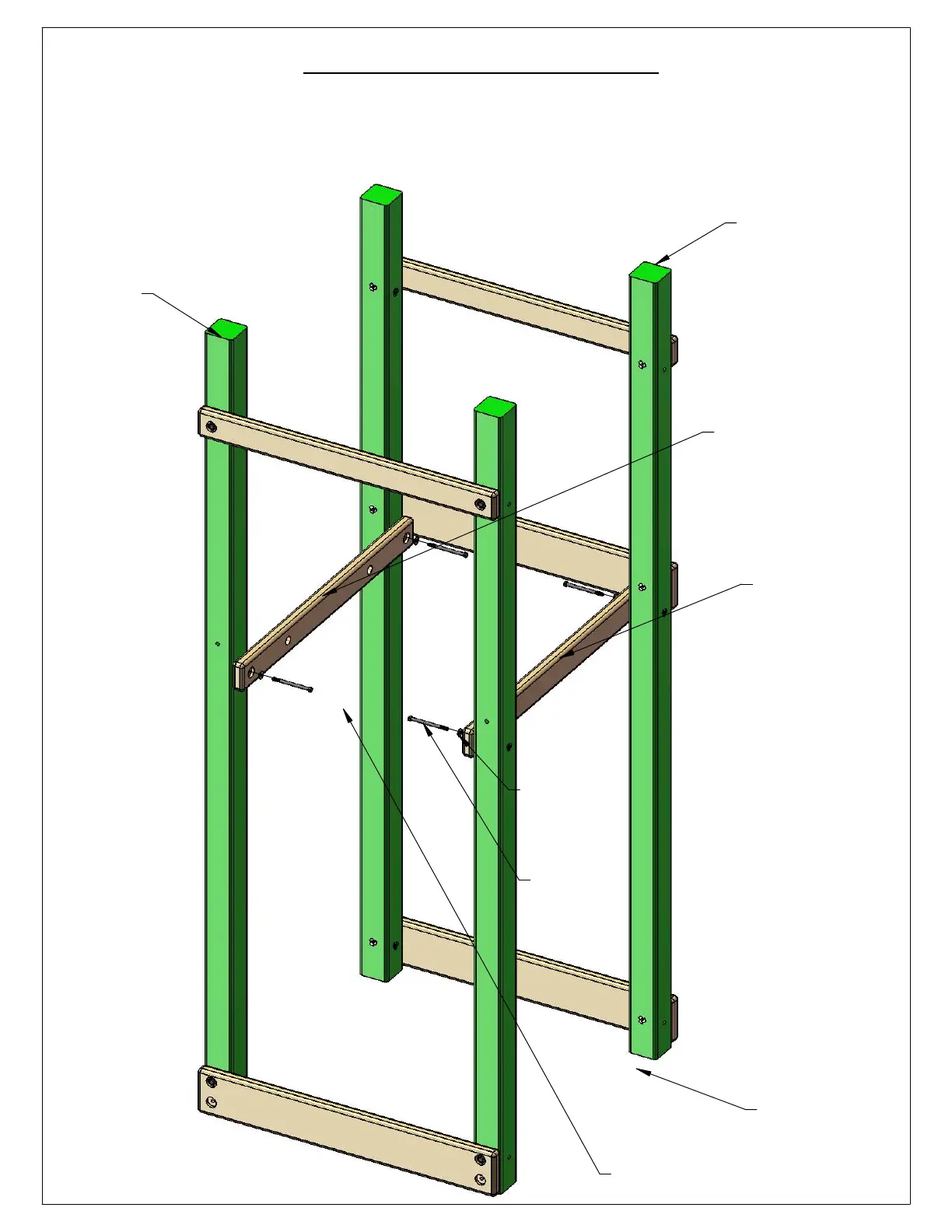

1: WITH HELP, STAND UP THE LEFT AND RIGHT SIDE ASSEMBLIES.
2: FASTEN THE 2 X 4 X 36-3/4" DECK SUPPORTS TO THE HOLES AT 54-1/2" WITH 5/16 X 4-1/2" HEX BOLTS AND 5/16"
D
FRONT OF
TOWER
DECK SUPPORT
5/16" WASHER
2 X 4 X 36-3/4"
HEX BOLT
5/16 X 4-1/2"
RIGHT SIDE
FRAME
CLARITY.
NOT SHOWN FOR
2 X 6 BOTTOM
PANEL BOARD
FRAME
LEFT SIDE
2 X 4 X 36-3/4"
SAFETY BOARD
122
