6 Measuring Direct, Alternating and
Pulsating Voltage – V Function
You can measure direct voltage, as well as sinusoidal alternating
voltage with frequencies ranging from 45 to 65 Hz with this test
instrument.

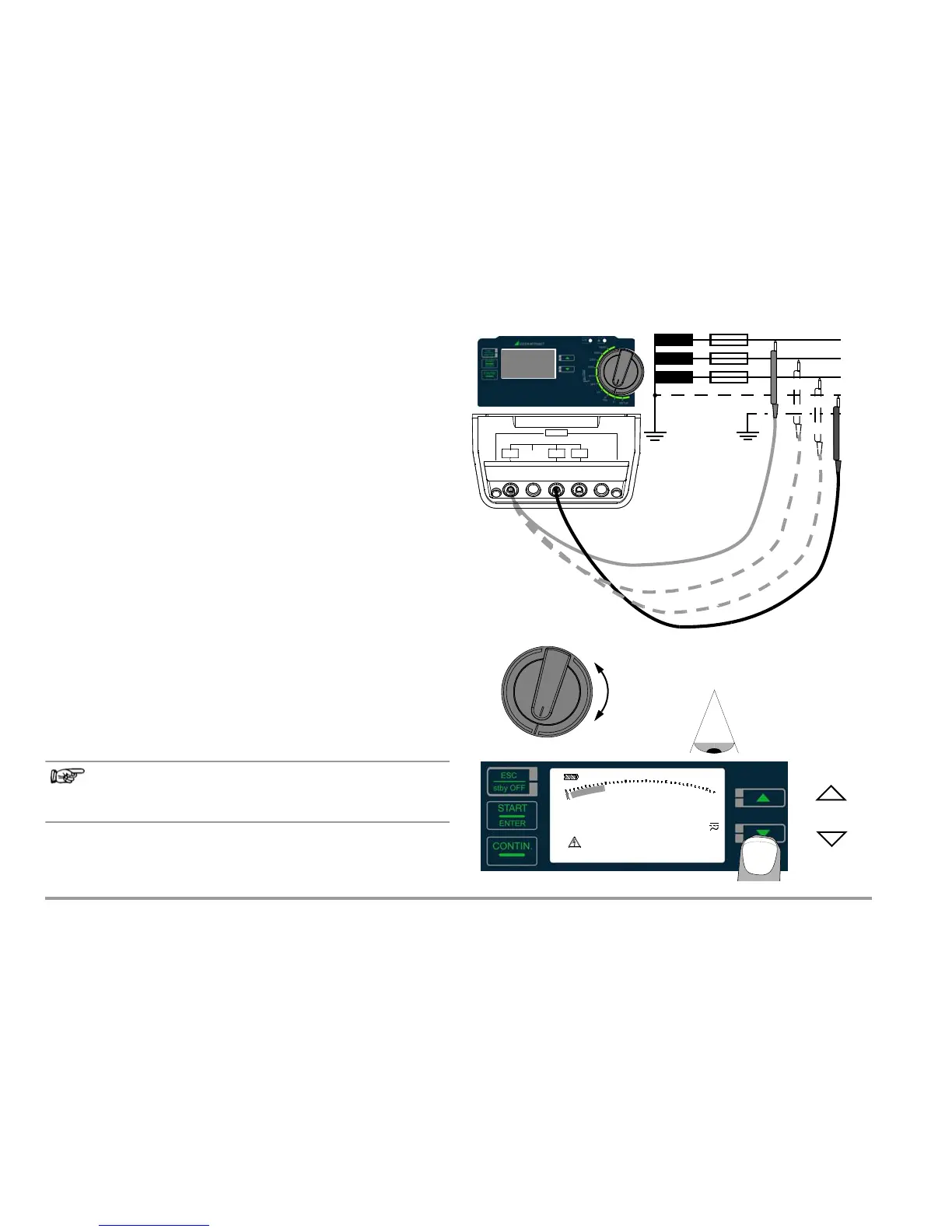

Ð Select the V measuring function with the rotary switch.
Ð Select the desired voltage type with the scroll keys:
direct voltage (DC),
alternating voltage (AC TRMS)
or pulsating voltage (DC + AC TRMS)
Ð Connect the measurement cables to the + and COM jacks.
Ð Contact the measuring point with both test probes.
The measured value is displayed directly (without pressing the
START key) in analog format at the bar graph and in digital format
at the 7-segment display.
Ð After completing the measurement, switch the instrument off
by turning the rotary switch to the OFF position.
The ESC, START and CONTIN. keys are disabled in this case.
Note
Input impedance for the voltage measuring range is
10 M.
L1
L2
N
PE
L3
R
B
R
E
Max.
1.2 kV
U
+
COM
+ COM SHIELD
V
TRMS
AC
DC
0
1
0
0
0
V
390
11
0
V
2
3
0
V
DC / AC
DC
AC
V
