21

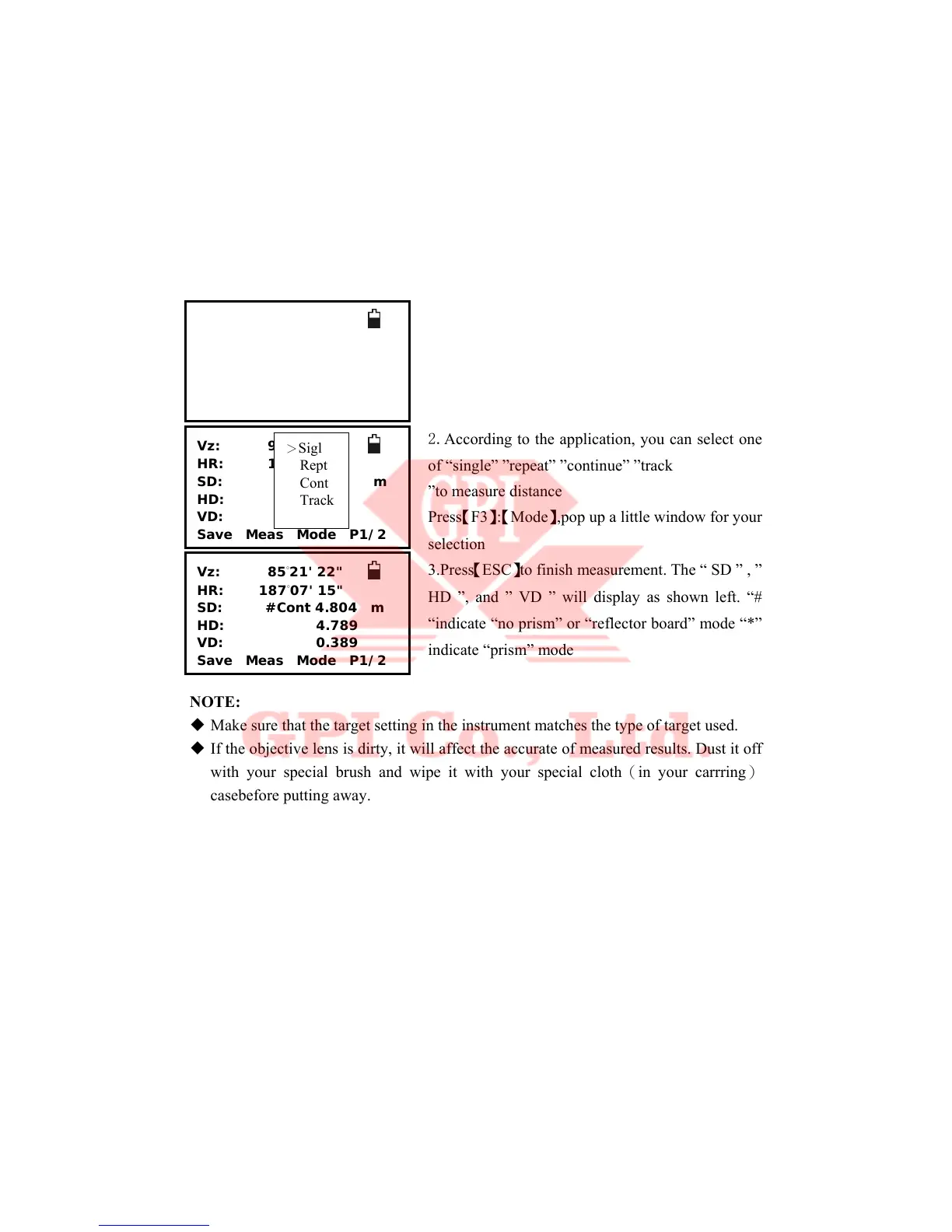

5. Distance Measurement
Please set the following items before distance measurement：
【Procedure of distance measurement】
1.Aim at the target. Press F2:【MEAS】at P1 in the
measure mode.
Press F1:【Save】will start measuring and save the
result
2.According to the application, you can select one
of “single” ”repeat” ”continue” ”track
”to measure distance
Press【F3】:【Mode】,pop up a little window for your
selection
3.Press【ESC】to finish measurement. The “ SD ” , ”
HD ”, and ” VD ” will display as shown left. “#
“indicate “no prism” or “reflector board” mode “*”
indicate “prism” mode
NOTE:
Make sure that the target setting in the instrument matches the type of target used.
If the objective lens is dirty, it will affect the accurate of measured results. Dust it off
with your special brush and wipe it with your special cloth（in your carrring）
casebefore putting away.
If an object with a high reflective factor（metal, white surface）exists between the
instrument and the target when measuring, the accuracy of the measured results will
be affected.
An angle is also able to be measured when distance measurement.
# or * means measuring distance, at end of ”single”, ”repeat” mode measuring ,the
symbol will disappear automatically. you can press【ESC】finish measurement then
the symbol also disappear.
Vz: 92°18' 22"
HR: 187°07' 15"
SD: m
HD:
VD:
Save Meas Mode P1
