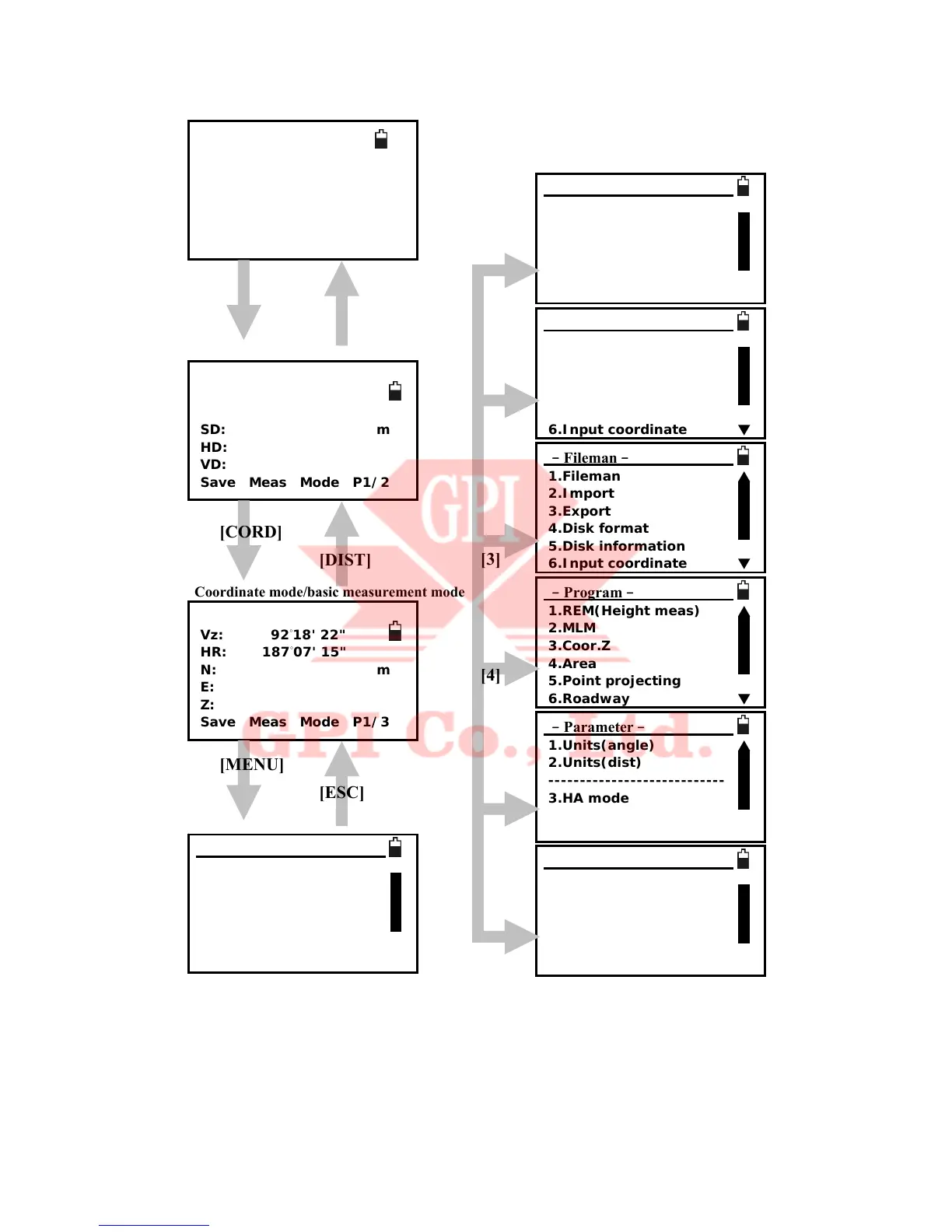

3.4 Mode Diagram
–Setout–
1.Setup station ▲
2.Setup BSS
3.Setout
4.Odd coordinate
5.Intersection
6.Input coordinate ▼
–Fileman–
1.Fileman ▲
2.Import
3.Export
4.Disk format
5.Disk information
6.Input coordinate ▼
–Program–
1.REM(Height meas) ▲
2.MLM
3.Coor.Z
4.Area
5.Point projecting
6.Roadway ▼
–Parameter–
1.Units(angle) ▲
2.Units(dist)
----------------------------
3.HA mode
4.VA mode
5.EDM mode
▼
–Calibration–
1.Index error ▲
2.Tilt error
----------------------------
3.Add Const
4.Mul Const
▼
–Collection–
1.Select file ▲
2.Setup station
3.Setup BSS
4.Sequence of collection
5.Collection
▼
Vz: 92°18' 22"
HR: 187°07' 15"
Save Set0 SetA P1
/
2
Vz: 92°18' 22"
HR: 187°07' 15"
SD: m
HD:
VD:
Save Meas Mode P1/2
Dist mode/basic measurement
Vz: 92°18' 22"
HR: 187°07' 15"
N: m
E:
Z:
Save Meas Mode P1/3
Menu mode
–Menu–
1.Collection ▲
2.Setout
3.Fileman
4.Program
5.parameter
6.Calibration ▼
[DIST]
[ANG]
[CORD]
[DIST]
[MENU]
[ESC]
廴 Angle mode / basic measurement mode
[1]
[3]
[2]
[4]
[5]
[6]
Coordinate mode/basic measurement mode
