GPI GPI-122 User Manual

33
2. Aim at the prism to start EDM, if you need the
coordinate of A0 you should set the height of prism
to zero. if you need the coordinate of A1 you
should set the height of prism to the real height.
3. The result is shown as the picture on the left.
Press F4:【Enter】to accept the result.
4. The result of target point is shown as the picture
on the left. if you wish to display
coordinate then you must press【CORD】,or if you
wish display distance then you must press【DIST】.
5. When you press F1:【Next】,you will be informed
to save the result, if nessary you can press【ENT】
to save the result.

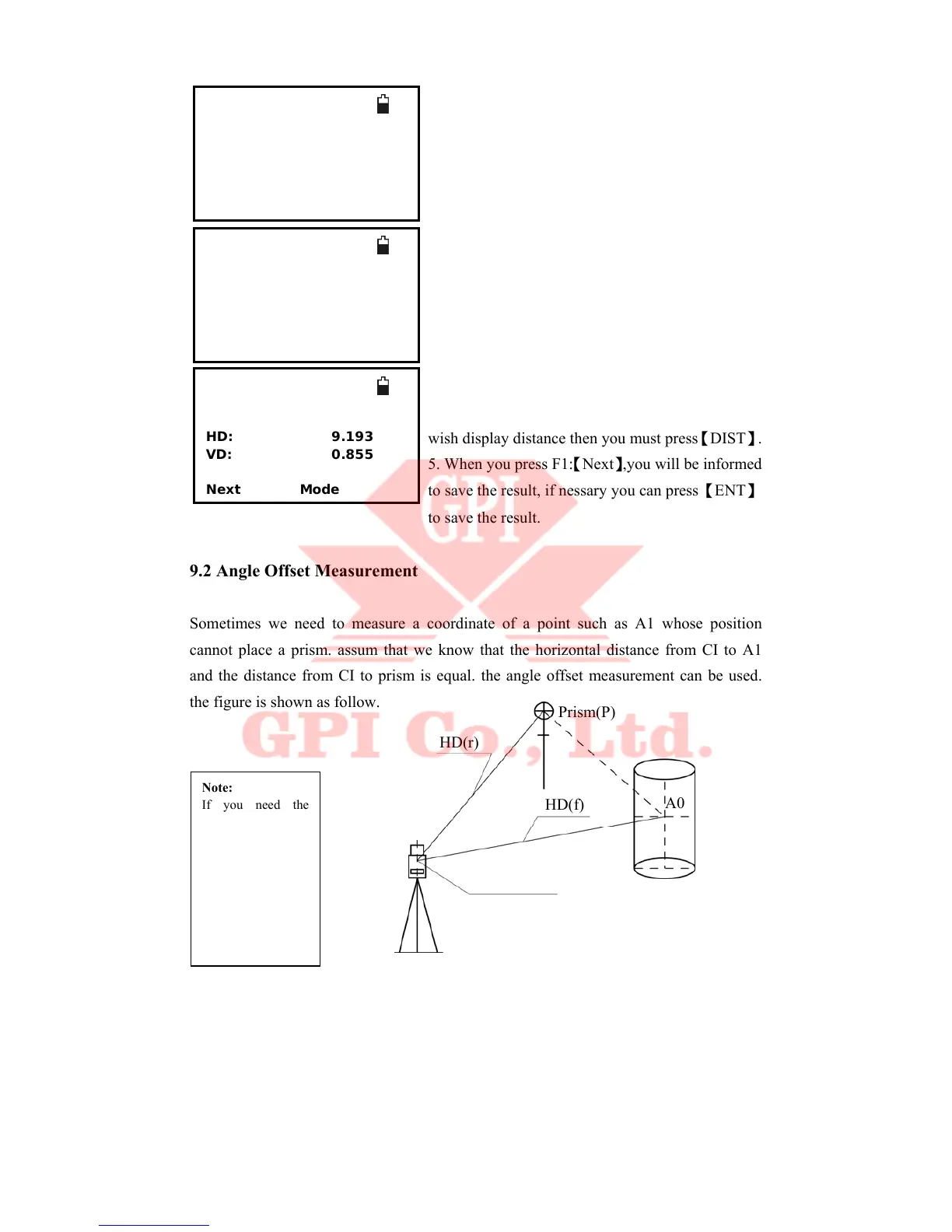

9.2 Angle Offset Measurement
Sometimes we need to measure a coordinate of a point such as A1 whose position
cannot place a prism. assum that we know that the horizontal distance from CI to A1
and the distance from CI to prism is equal. the angle offset measurement can be used.
the figure is shown as follow.
Offset (dist)–Prism
HR: 356°50' 27"
SD:
HD:
VD:
Meas T.H.
Mode
Offset (dist)–Prism
HR: 356°50' 27"
SD: 4.387
HD: 4.373
VD: 0.855
Meas Mode Enter
Offset (dist)–Target
HR: 31°40' 09"
SD: 14.902
HD: 9.193
VD: 0.855
Next Mode
HD(r)
Prism(P)
A0
Center of instrument(CI)
A1
HD(f)
HD(r)=HD(f)
HD(r)=Horizontal distance from CI to P
HD(f)= Horizontal distance from CI to A0
Note:
If you need the
coordinate of A0
you should set the
height of prism to
zero. if you need
the coordinate of
A1 you should set
the height of prism
to the real height.
