next alphabet ‘U’ is relational with【7】.click
【7】,’SS’ will present in inputbox, click【7】
again ‘ST’ will present in inputbox, click【7】
again, ’SU’ will present in input box.
4. Click【5】, ’SUN’ will present in input box.
5. Press【F3】,switch into Number input mode
6. Press【1】,’SUN1’ will present in input box
7. Press【F3】,switch into Alphabet input mode
8. Press【1】,’SUN1A’ will present in input box
9. Press【F4】,the cerat will shift into STN input box, because the STN coordinate is
Number attribute, the prompt “Alph.” automatically switch into “Num.”,
10. Input【±】,【1】,【2】,【3】,【.】,【4】,【5】,【6】in turn,
11. Press【ENT】，end dialog

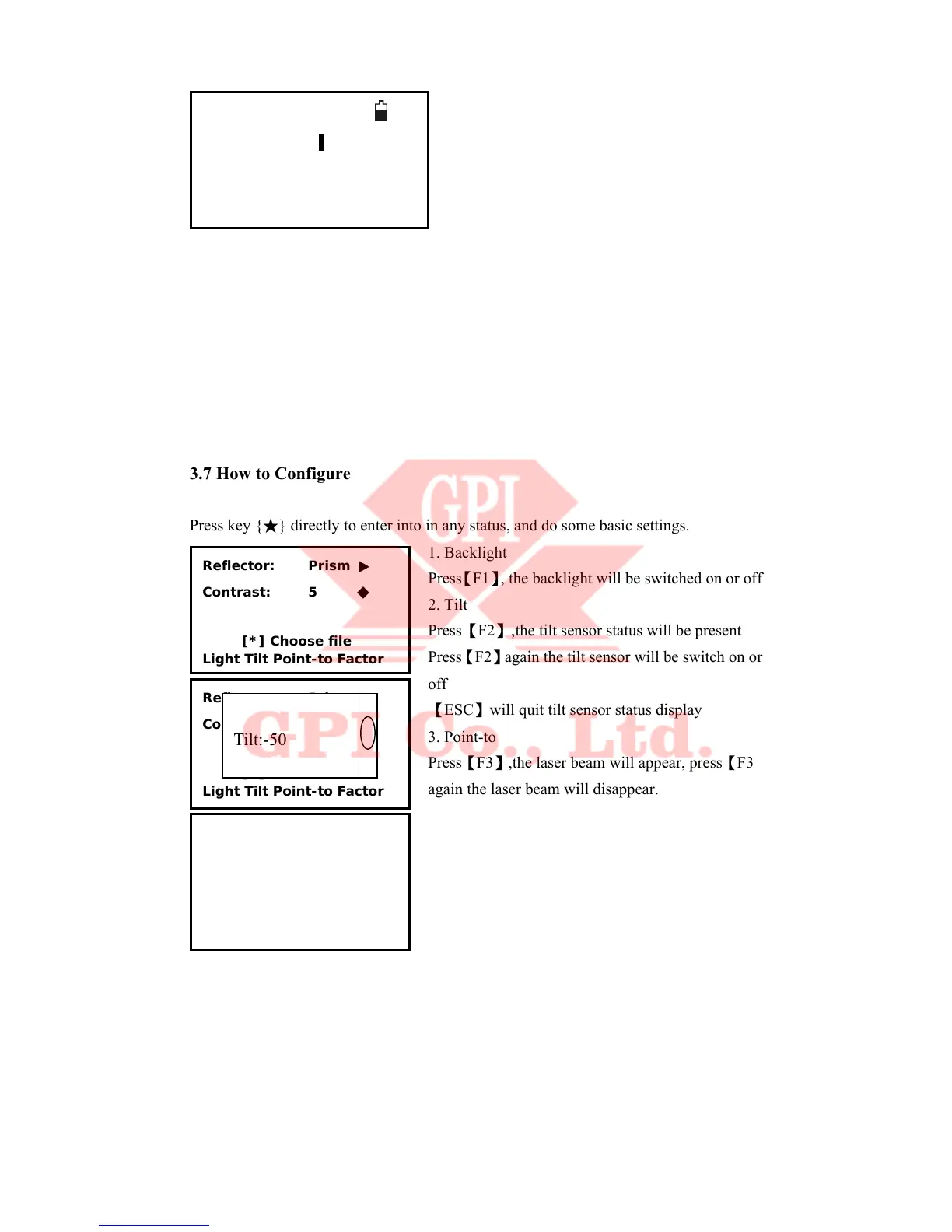

3.7 How to Configure
Press key {★} directly to enter into in any status, and do some basic settings.
1. Backlight
Press【F1】, the backlight will be switched on or off
2. Tilt
Press【F2】,the tilt sensor status will be present
Press【F2】again the tilt sensor will be switch on or
off
【ESC】will quit tilt sensor status display
3. Point-to
Press【F3】,the laser beam will appear, press【F3】
again the laser beam will disappear.
4. Reflecting object
Press the EDM mode will be switched between
“prism”,” no prism” and “reflector board”
5. LCD contrast
Press
▼▲,will increase or decrease the value of
contrast
Setup station
Pt.name SUN .
STN
STE
STZ
B.S. Clear Num. Enter
Reflector: Prism 彡
Contrast: 5 ◆
[*] Choose file
Light Tilt Point-to Factor
Temperature: 25 ℃
Press: 1013.0 hPa
Prism const: 0 mm
PPM: 4ppm
Signal:
B.S. Clear Sigal Enter
Reflector: Prism 彡
Contrast: 5 ◆
[*] Choose file
Light Tilt Point-to Factor
Tilt:-50
