39

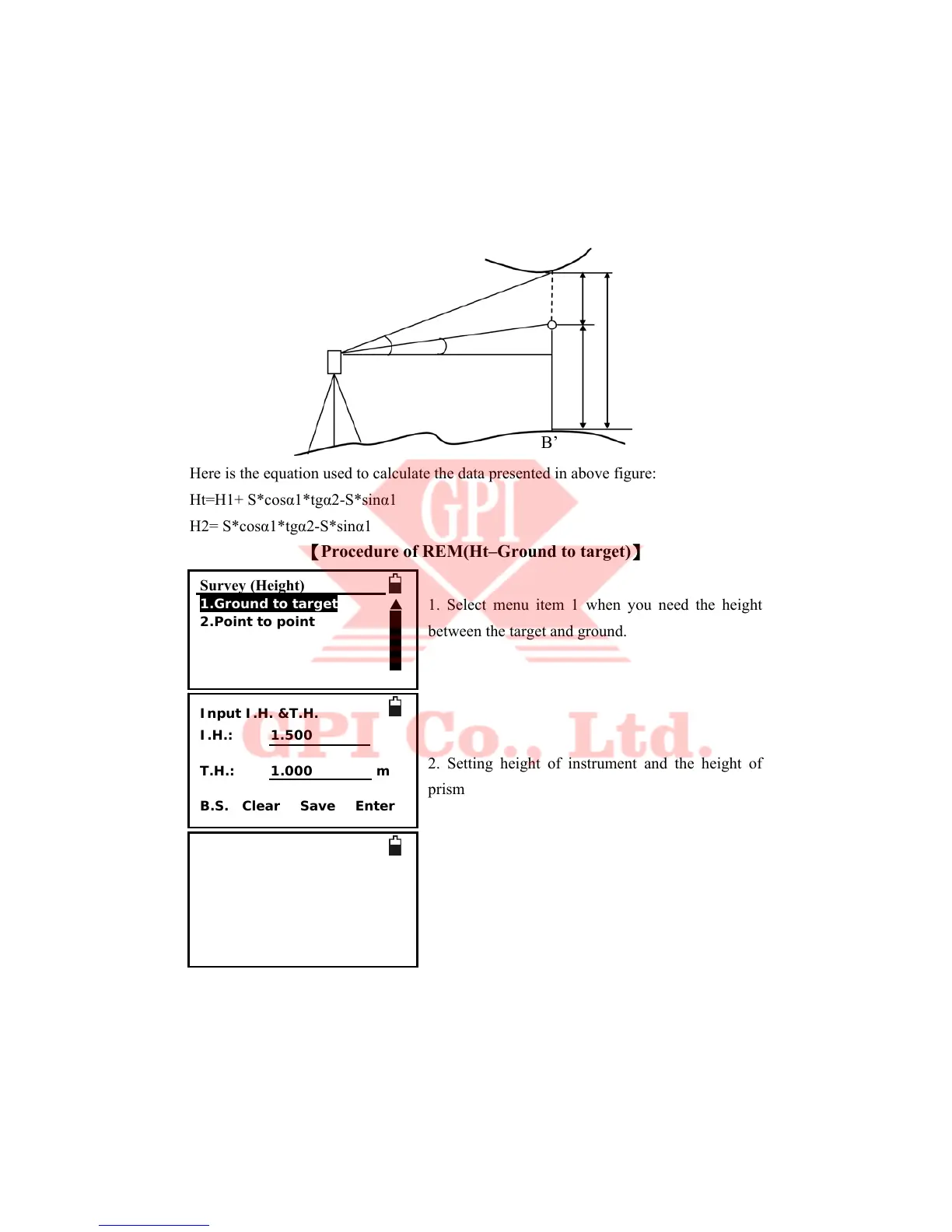

11. Height measurement (REM)
REM is a function used to measure the coordinate and height to a point where a target
cannot be directly installed such as power lines, overhead cables or bridges, etc.
Here is the equation used to calculate the data presented in above figure:
Ht=H1+ S*cosα1*tgα2-S*sinα1
H2= S*cosα1*tgα2-S*sinα1
Procedure of REM(Ht–Ground to target)
1. Select menu item 1 when you need the height
between the target and ground.
2. Setting height of instrument and the height of
prism
3. Press F1:Measto start EDM then you can
obtain the horizontal distance between the
instrument and the target. Press F4:Enterto
accept the measurement data
Target point B
H2
H1
Ht
S
B’
α1
α2
Survey (Height)
1.Ground to target
2.Point to point
Input I.H. &T.H.
I.H.: 1.500
T.H.: 1.000 m
B.S. Clear Save Enter
Height-Prism
Vz: 88°18' 22"
HR: 1°46' 31"
HD: 4.827m
Meas Mode Enter
