40
4. Then VDdifference of heightappear, first
display the height of prism.
5.If you rotate the telescope then VD will change,
when you aim at the target the VD is the difference
of height between the target and ground.

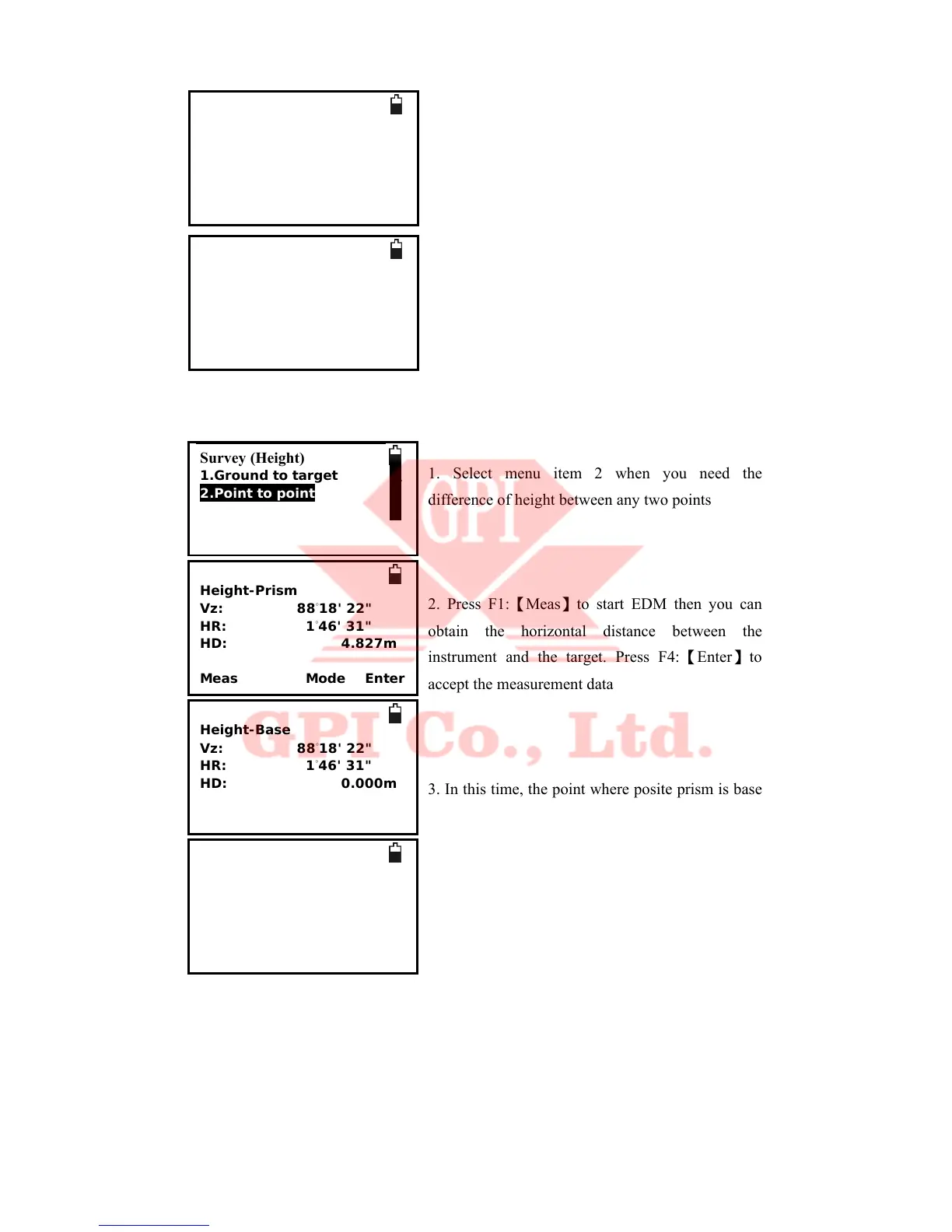

Procedure of REM(H2—point to point)
1. Select menu item 2 when you need the
difference of height between any two points
2. Press F1:Measto start EDM then you can
obtain the horizontal distance between the
instrument and the target. Press F4:Enterto
accept the measurement data
3. In this time, the point where posite prism is base
point.
4. The VD will change when you rotate telescope. If
you need setting another base point then you can aim
at another base point and press F2:Next A.
Height-Gnd to target
Vz: 88°18' 22"
HR: 1°46' 31"
HD: 1.000m
T.H. HDist
Height-Gnd to target
Vz: 88°06' 28"
HR: 1°46' 31"
HD: 1.017m
T.H. HDist
Survey (Height)
1.Ground to target
2.Point to point
Height-Prism
Vz: 88°18' 22"
HR: 1°46' 31"
HD: 4.827m
Meas Mode Enter
Height-Base
Vz: 88°18' 22"
HR: 1°46' 31"
HD: 0.000m
Enter
Height-Target
Vz: 88°56' 52"
HR: 1°46' 31"
HD: 0.626m
Next A. HDist
