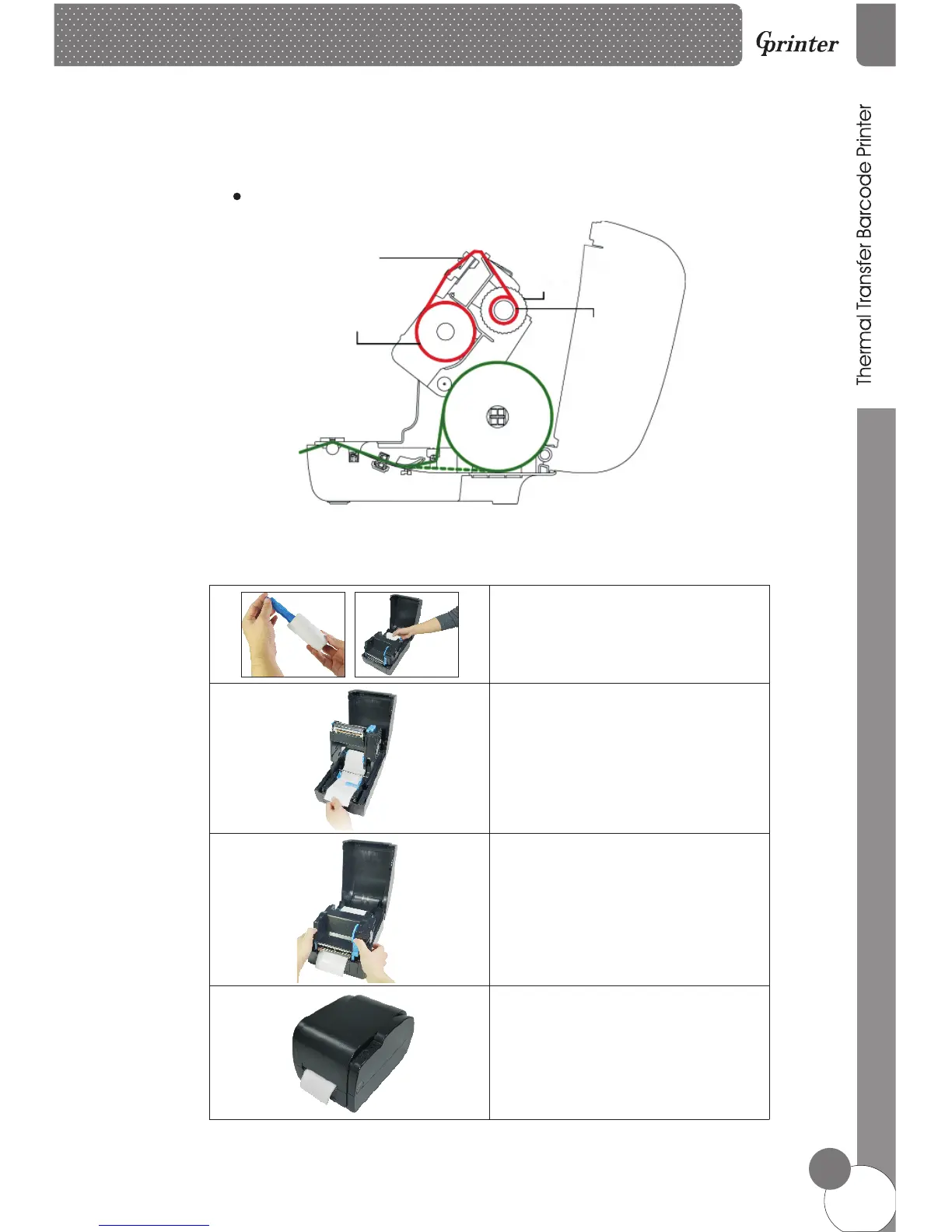

Ribbon installation diagram
Print head
Ribbon
Gear for ribbon take-up
Empty paper tube
<Picture 7>
( ) Paper installation
1.Open printer top cover;
Insert blue label supply hub into label roll
and fix onto printer.
2.Press Push button to open print head to
install label paper same as picture
showing.
3.Close the print head by pressing two arrow
locations. Confirm print head two sides are
closed correctly to ensure you get printing
in good quality.
4.Close printer top cover.
