GPX DZ3 - Checking;Replacing Relays and OBD Plug Position; Battery Inspection; Spark Plug Inspection

27

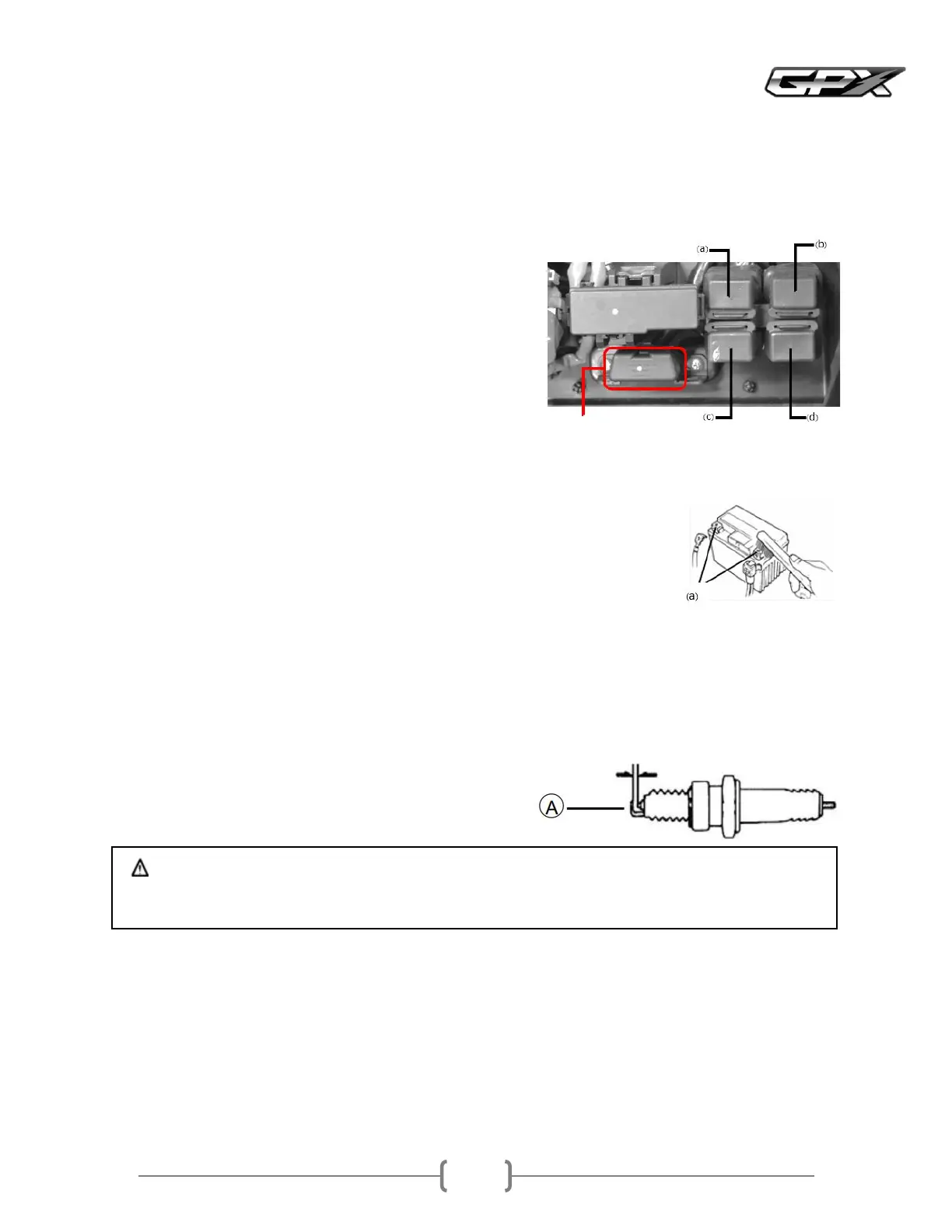

Checkingreplacing relays and OBD plug position
Open the seat, you will see the battery cover
Press the locking clip that holds the battery cover to open it, you will see  relays inside
Check for abnormalities in the relays
Replace the relay if there is any abnormality of the device as shown in the table below
Functions of various relays
aRadiator cooling fan  bFuel pump
cHeadlight dEFI system control
Battery Inspection
This motorcycle has a maintenancefree battery, so there is no need to check and add electrolyteThe battery is located at
the rear of the luggage compartmentTo remove the battery, follow these instructions
Turn off the ignition
Press the locking clip holding the battery cover to open it, revealing the battery inside
Remove the battery strap and remove the battery
Disconnect the negative battery terminal, then the positive terminal
Clean the battery terminals awith a solution of baking soda and water
Reinstall the battery by reversing the removal procedure
Spark Plug Inspection
Has the spark plug inspected by an authorized GPX dealerIf the electrode is dirty or the insulator is damaged, replace it
Measure the spark plug clearance Awith a feeler gaugeThe spark plug clearance should be approximately  ~  mm
If adjustment is required, carefully bend the electrode
Recommended Spark PlugsNGK CREKB NGK CREB
Spark Plug Gapmm
0708 mm
 Warning
Be careful of engine heat when checking spark plugs
OBD Plug
