Graco A Series Repair

Parts - Pump 16X414, 16X418
12 332922D

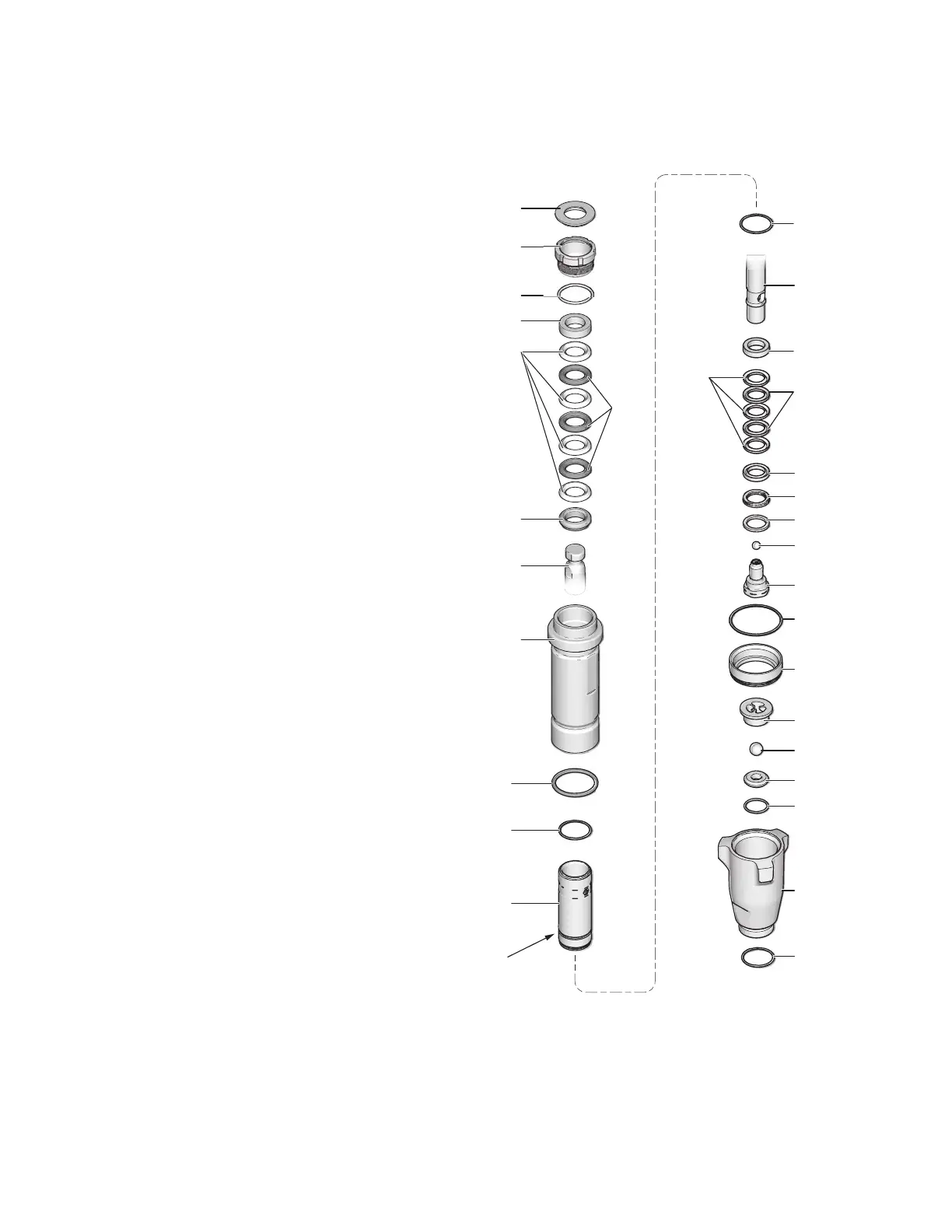

Parts - Pump 16X414, 16X418
Ref. Part Description Qty.
201*† 179810 SEAL, throat 1
202 193046 NUT, packing 1
203*† 192692 V-PACKING, throat, V-Max,
UHMWPE, blue
3
204*† 15C987 GLAND, male, throat, 1
205 CYLINDER, pump 1
16X450 Model 16X414
16X456 Model 16X418
206 BALL check 1
105444* Model 16X414 (Stainless steel)
119259† Model 16X418 (Ceramic)
207*† 156593 PACKING, o-ring 1
208*† 192693 V-PACKING, piston, V-MAX,
UHMWPE, blue
3
210 287877 VALVE, piston 1
212 KIT, seat, carbide 1
239922 Model 16X414,
includes 214, 215, 227
244571 Model 16X418
includes 214, 227
213 VALVE, intake (foot) 1
15C785 Model 16X414
287878 Model 16X418
214 BALL, check, inlet 1
105445* Model 16X414 (Stainless steel)
111453† Model 16X418 (Ceramic)
102972 Model 16X418 (Stainless steel)
215 GUIDE, ball 1
192624 Model 16X414
196967 Model 16X418
216*† 118503 WIPER, piston 1
217*† 178969 GLAND, female, piston 1
218*† 178939 V-PACKING, leather, piston 2
219*† 196880 GLAND, male, piston 1
220 248209 SLEEVE, cylinder 1
221*† 108526 O-RING, ptfe 1
222 ROD, piston 1
16X434 Model 16X414
16X440 Model 16X418
223*† 178940 V-PACKING, leather, throat 2
224*† 15C988 GLAND, female, throat 1
227 O-RING, ptfe 1
107079* Model 16X414
108526† Model 16X418
228*† 158776 O-RING 1
229*† 15C997 WASHER, backup 1
230* 118494 O-RING, fluoroelastomer
(Model 16X414)
1
231† 107098 O-RING (Model 16X418 only) 1
232 15G494 SPACER, sleeve
(Model 16X418 only)
1
* These parts are also included in Repair Kit 248212, which
may be purchased separately.
† These parts are also included in Repair Kit 24V063, which
may be purchased separately.
ti23511a
207
221
220
208
222
221
218
217
206
210
229
214
215
212
216
227
230
213
219
(Not an
O-ring groove)
231
232
222
205
204
203
223
224
202
201
228
