Graco A Series Repair

Parts - Pump 17N694, 17R042
332922D 17
Parts - Pump 17N694, 17R042
Ref. Part Description
Qty
.
201 112590 SEAL, throat 1
202 16X768 NUT, packing 1
203 193722 V-PACKING, throat, V-Max,
UHMWPE, blue
4
204 15G658 GLAND, male, throat 1
205 CYLINDER, pump 1
17R116 Model 17R042 (Chrome)
17N695 Model 17N694 (Maxlife)
206 BALL, check
17R047 Ceramic SI-N 1
107203 Stainless steel( 1
207 160325 PACKING, o-ring 1
208 193722 V-PACKING, piston, V-MAX,
UHMWPE, blue
4
210 249177 VALVE, piston 1
212 17N703 KIT, seat, carbide includes 214,
ceramic SI-N check ball 227, 233
1
213 17N698 VALVE, intake (foot) 1
214 BALL, check, inlet
17R046 Ceramic SI-N 1
107167 Stainless steel( 1
215 193391 GUIDE, ball 1
216 119636 WIPER, piston 1
217 189588 GLAND, female, piston 1
218 15E639 V-PACKING, piston, brown 3
219  189585 GLAND, male, piston 1
220 SLEEVE, cylinder, Chrome 1
248979 Model 17R042 (Chrome)
249121 Model 17N694 (Maxlife)
221 108822 O-RING, ptfe 2
222 ROD, piston 1
17R147 Model 17R042 (Chrome)
16X439 Model 17N694 (MaxLife)
223 112591 V-PACKING, leather, throat 3
224 15G657 GLAND, female, throat 1
227 107098 O-RING, ptfe 1
228 156593 O-RING 1
229 15J800 WASHER, backup 1
233 24E027 SPRING, intake, ball 1
 These parts are also included in Repair Kit 17R119
(ceramic SI-N balls), which may be purchased separately.
222
205
207
221
220
204
203
223
224
202
201
228

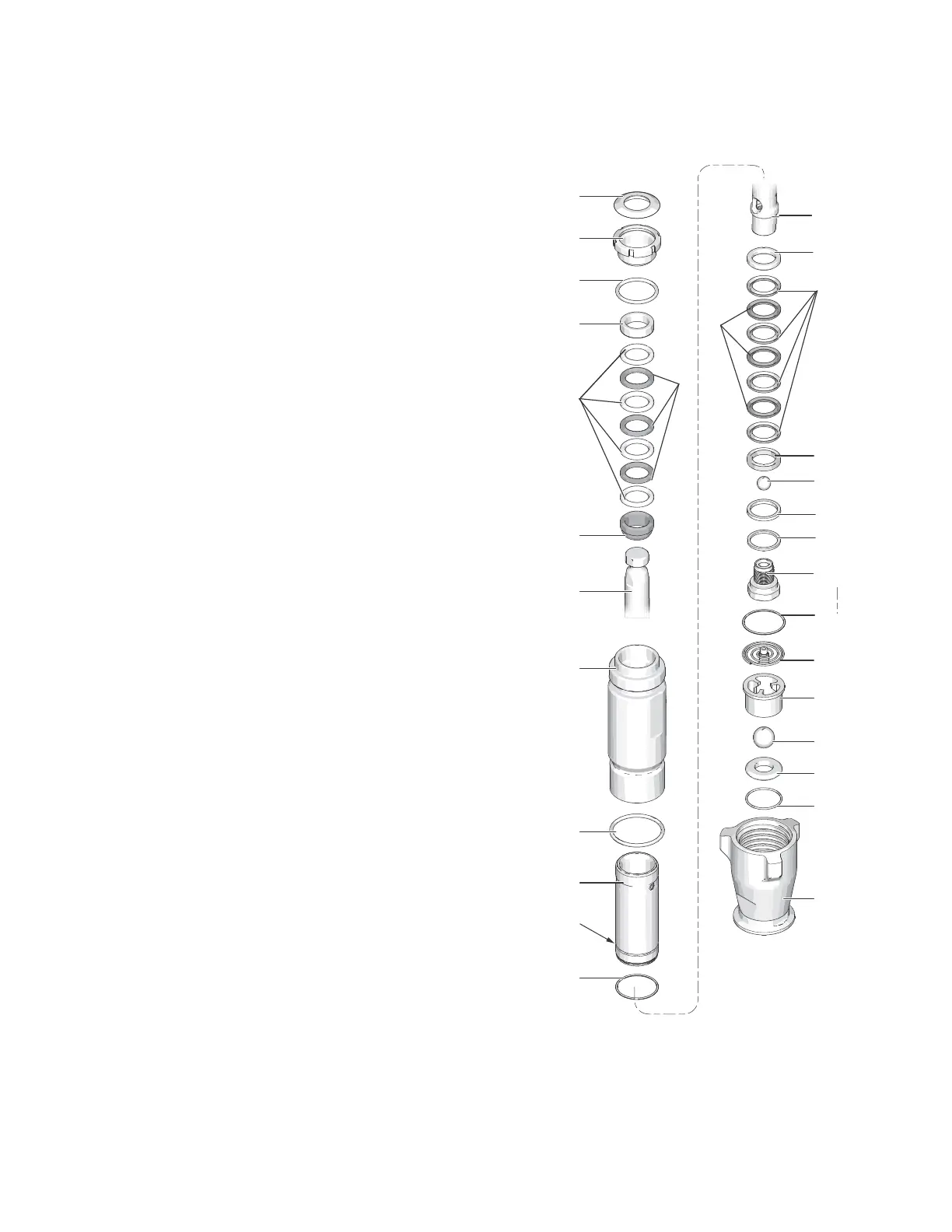

ti30823a
222
219
208
218
217
206
210
216
229
221
215
214
233
212
213
227
Not an
o-ring
groove
