Graco A Series Repair

Parts - Pump 17N693, 17R044
16 332922D
Parts - Pump 17N693, 17R044
Ref. Part Description
Qty
.
201 183171 SEAL, throat 1
202 193032 NUT, packing 1
203 193124 V-PACKING, throat, V-Max,
UHMWPE, blue
4
204 15C989 GLAND, male, throat 1
205 CYLINDER, pump 1
17N697 Model 17N693 (Maxlife)
17R115 Model 17R044 (Chrome)
206 BALL, check 1
101947 Stainless steel
124249
Ceramic, SI-N
207 160325 PACKING, o-ring 1
208 193125 V-PACKING, piston, V-MAX,
UHMWPE, blue
4
210 24U993 VALVE, piston 1
212 17N703 KIT, seat, carbide includes 214, 227,
233
1
213 17N698 VALVE, intake (foot) 1
214 BALL, check, inlet 1
17R046 Ceramic
, SI-N
107167 Stainless steel
215 16M658 GUIDE, ball 1
216 118504 WIPER, piston 1
217 183185 GLAND, female, piston 1
218 15E329 V-PACKING, piston, brown 3
219 183178 GLAND, male, piston 1
220 SLEEVE, cylinder 1
257031 Model 17N693 (Maxlife)
248210 Model 17R044 (Chrome)
221 107098 O-RING, ptfe 3
222 ROD, piston 1
16X436 Model 17N693 (Maxlife)
17R146 Model 17R044 (Chrome)
223 183175 V-PACKING, leather, throat 3
224 15C990 GLAND, female, throat 1
228 C20987 O-RING 1
229 15C998 WASHER, backup 1
231 108822 O-RING 1
232 16M291 SPACER, sleeve 1
233 24E027 SPRING, intake, ball 1
 These parts are also included in Repair Kit 17R114 (ceramic
balls SI-N), which may be purchased separately.

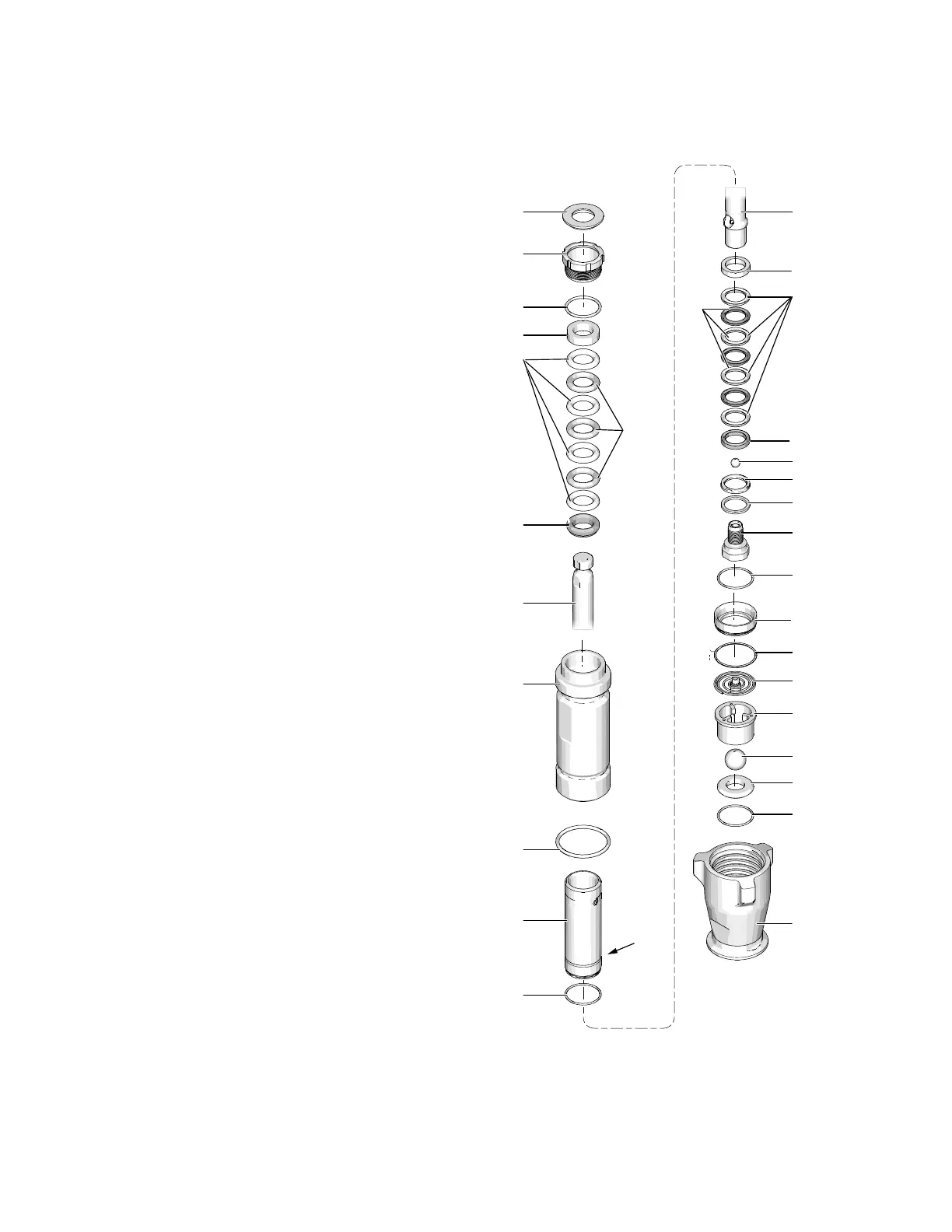

ti30822a
222
205
207
221
220
204
203
223
218
224
202
201 222
219
208
217
206
210
216
229
221
231
232
233
215
214
228
212
221
(Not an
O-ring
groove)
213
