Graco A Series Repair

Parts - Pump 16X419, 16X421, 16Y602
14 332922D

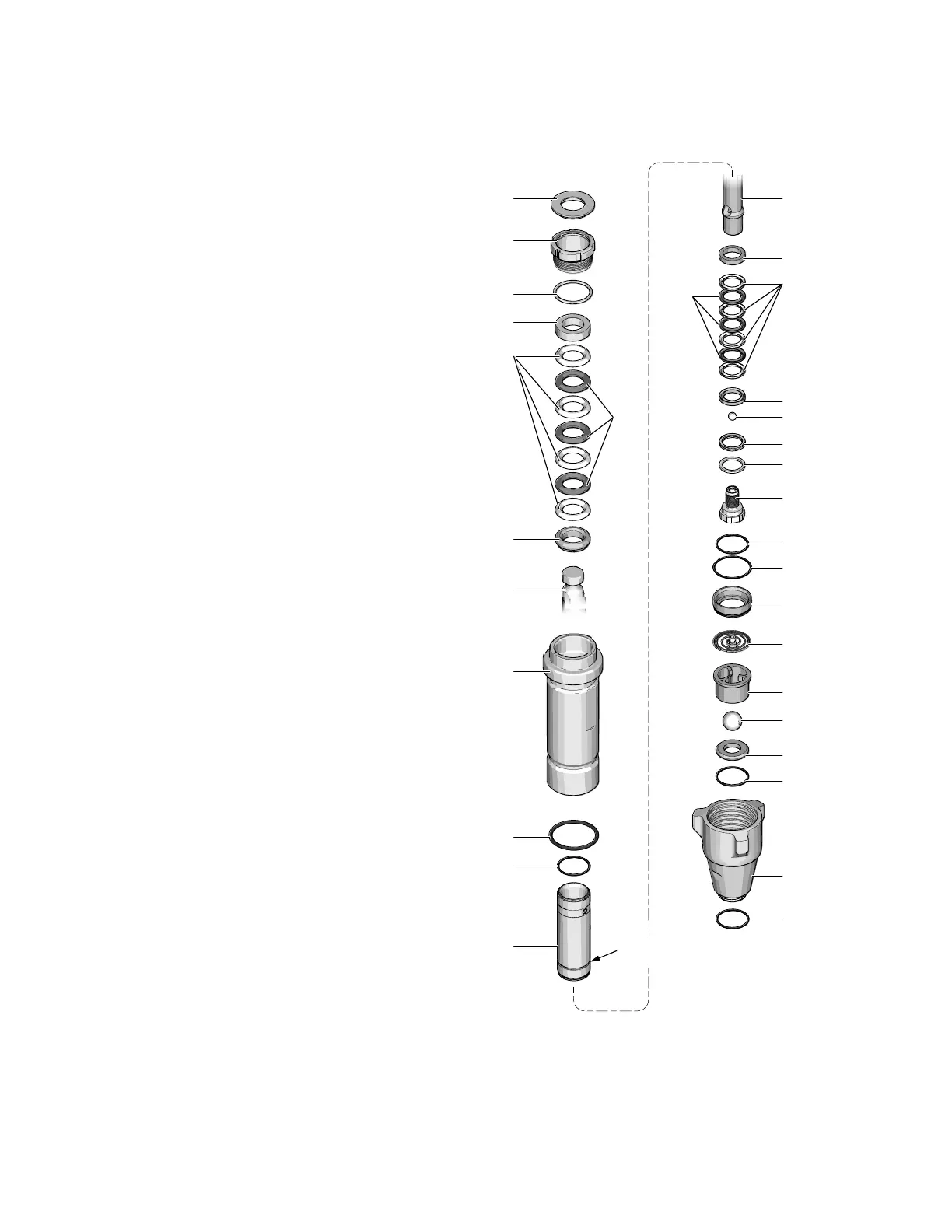

Parts - Pump 16X419, 16X421, 16Y602
Ref. Part Description Qty.
201*† 183171 SEAL, throat 1
202 193032 NUT, packing 1
203*† 193124 V-PACKING, throat, V-Max,
UHMWPE, blue
4
204*† 15C989 GLAND, male, throat 1
205 CYLINDER, pump 1
16X451 Model 16X419
16X457 Model 16X421
17A033 Model 16Y602
206 BALL, check 1
101947* Model 16X419 (Stainless steel)
116327†
Model 16X421, 16Y602 (Ceramic)
207 PACKING, o-ring 1
156633*† Model 16X419, 16X421
160325 Model 16Y602
208*† 193125 V-PACKING, piston, V-MAX,
UHMWPE, blue
4
210 24U993 VALVE, piston 1
212 KIT, seat, carbide 1
244199 Model 16X419 includes 214, 227
244571
Model 16X421 includes 214, 227
24N013 Model 16Y602 includes 214, 227, 233
213 VALVE, intake (foot) 1
15E654 Model 16X419
196753 Model
16X421
15A303 Model 16Y602
214 BALL, check, inlet 1
102972* Model 16X419 (Stainless steel)
111453† Model
16X421 (Ceramic)
118602 Model 16Y602(Ceramic)
107167 Model 16Y602 (Stainless steel)
215 GUIDE, ball 1
193027 Model 16X419, 16X420
196967 Model
16X421, 16Y599
16M658 Model 16Y602
216*† 118504 WIPER, piston 1
217*† 183185 GLAND, female, piston 1
218*† 15E329 V-PACKING, leather, piston 3
219*† 183178 GLAND, male, piston 1
220 SLEEVE, cylinder 1
248210 Model 16X419, 16X421, 16Y602
221*† 107098 O-RING, ptfe 2
222 ROD, piston 1
16X435 Model 16X419
16X441 Model 16X421, 16Y602
223*† 183175 V-PACKING, leather, throat 3
224*† 15C990 GLAND, female, throat 1
227 O-RING, ptfe 1
108526*† Model 16X419, 16X421
107098 Model 16Y602
228*† C20987 O-RING 1
229*† 15C998 WASHER, backup 1
230* 118494 O-RING, fluoroelastomer
(Model 16X419 only)
1
231 108822 O-RING (Model 16Y602 only) 1
232 16M291 SPACER, sleeve (Model 16Y602 only) 1
233 24E027 SPRING, intake, ball (Model 16Y602 only) 1
* These parts are also included in Repair Kit 248213 (stainless steel
balls), which may be purchased separately.
† These parts are also included in Repair Kit 249189 (ceramic balls),
which may be purchased separately.
 These parts are also included in Repair Kit 24M830, which may be
purchased separately.
ti23510a
222
205
207
221
220
204
203
223
218
224
202
201 222
219
208
217
206
210
216
229
221
231
232
233
215
214
228
212
213
230
227
(Not an O-ring groove)
