Graco A Series Repair

Parts - Pump 16X420, 16Y599
332922D 13
Parts - Pump 16X420, 16Y599
Ref. Part Description
Qty
.
201*† 183171 SEAL, throat 1
202 193032 NUT, packing 1
203*† 193124 V-PACKING, throat, V-Max,
UHMWPE, blue
4
204*† 15C989 GLAND, male, throat 1
205 CYLINDER, pump 1
16X452 Model 16X420
16X461 Model 16Y599
206 BALL, check 1
101947* Model 16X420 (Stainless steel)
116327†
Model 16Y599 (Ceramic)
207 PACKING, o-ring 1
156633*† Model 16X420, 16Y599
208*† 128779 V-PACKING, piston, UHMWPE, blue
Model 16X420, 16Y599
4
210 24U993 VALVE, piston 1
212 KIT, seat, carbide 1
244199 Model 16X420 includes 214, 227
244571 Model 16Y599 includes 214, 227
213 VALVE, intake (foot) 1
15E654 Model 16X420
196753 Model
16Y599
214 BALL, check, inlet 1
102972* Model 16X420 (Stainless steel)
111453† Model
16Y599 (Ceramic)
215 GUIDE, ball 1
193027 Model 16X420
196967 Model
16Y599
216*† 118504 WIPER, piston 1
217*† 183185 GLAND, female, piston 1
218*† 128296 V-PACKING, brown poly seal
Model 16X420, 16Y599
3
219*† 183178 GLAND, male, piston 1
220 SLEEVE, cylinder 1
257031 Model 16X420, 16Y599
221*† 107098 O-RING, ptfe 2
222 ROD, piston 1
16X436 Model 16X420
16X441 Model 16Y599
223*† 183175 V-PACKING, leather, throat 3
224*† 15C990 GLAND, female, throat 1
227 O-RING, ptfe 1
108526*† Model 16X420, 16Y599
228*† C20987 O-RING 1
229*† 15C998 WASHER, backup 1
230* 118494 O-RING, fluoroelastomer
(Model 16X419, 16X420 only)
1
* These parts are also included in Repair Kit 17K162 (stain-
less steel balls), which may be purchased separately.
† These parts are also included in Repair Kit 17K475 (ceramic
balls), which may be purchased separately.

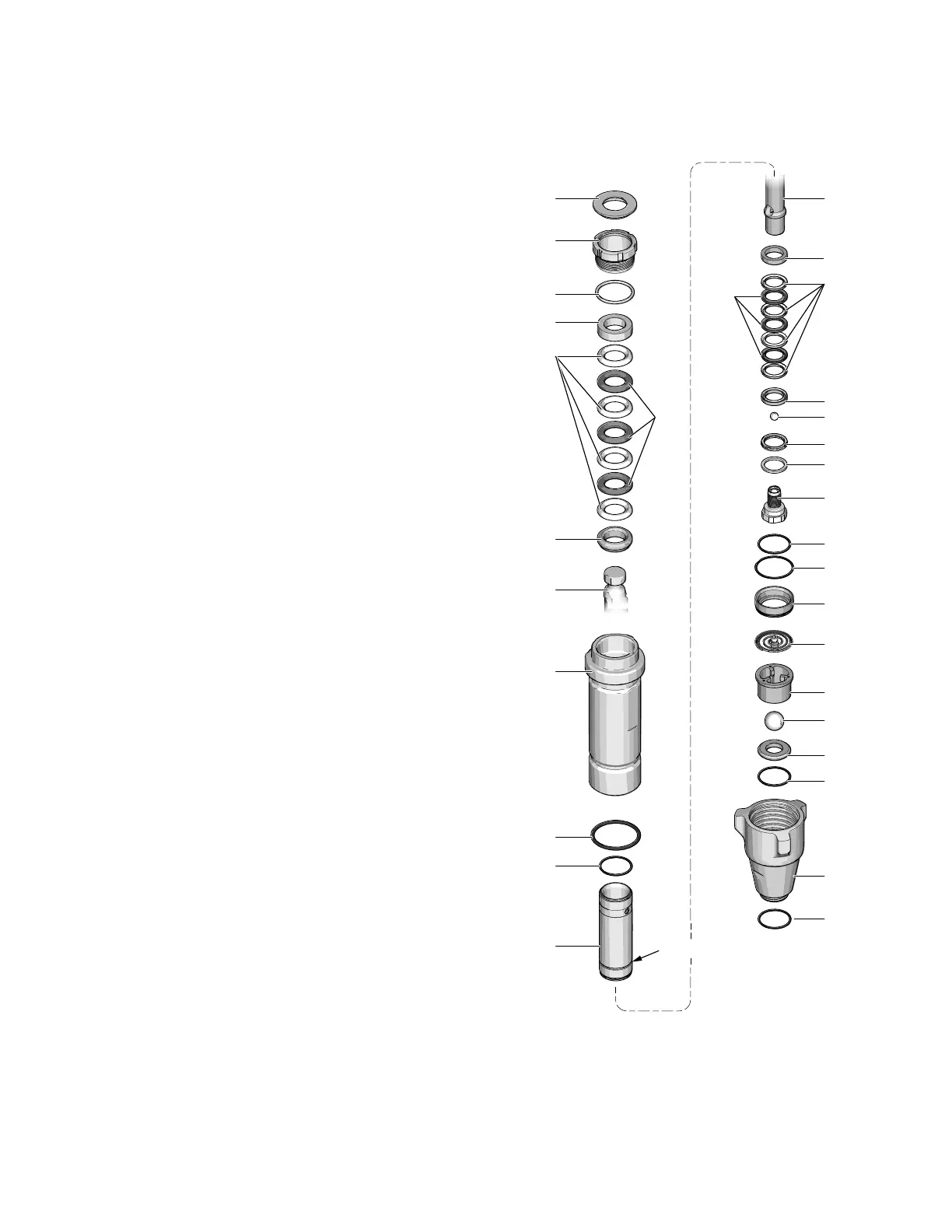

ti23510a
222
205
207
221
220
204
203
223
218
224
202
201 222
219
208
217
206
210
216
229
221
231
232
233
215
214
228
212
213
230
227
(Not an O-ring groove)
