Graco A Series Repair

Parts - Pump 16X426, 16X427
332922D 15
Parts - Pump 16X426, 16X427
Ref. Part Description
Qty
.
201* 112590 SEAL, throat 1
202 16X768 NUT, packing 1
203* 193722 V-PACKING, throat, V-Max,
UHMWPE, blue
4
204* 15G658 GLAND, male, throat 1
205 CYLINDER, pump 1
16X455 Model 16X426
16X460 Model 16X427
206 BALL, check 1
107203* Model 16X426 (Stainless steel)
118601 Model 16X427 (Ceramic)
207* 160325 PACKING, o-ring 1
208* 193722 V-PACKING, piston, V-MAX,
UHMWPE, blue
4
210 249177 VALVE, piston 1
212 KIT, seat, carbide 1
240918 Model 16X426 includes 214, 227
(stainless steel check ball)
16X467 Model 16X426 includes 214, 227, 233
(ceramic check ball)
24N013 Model 16X427, includes 214, 227,
233
213 VALVE, intake (foot) 1
15E655 Model 16X426
15A303 Model 16X427
214 BALL, check, inlet 1
107167* Model 16X426 (Stainless steel)
118602 Model 16X427 (Ceramic)
215 GUIDE, ball 1
198505 Model 16X426
193391 Model 16X427
216* 119636 WIPER, piston 1
217* 189588 GLAND, female, piston 1
218 V-PACKING, leather, piston 3
15E639* 16X426, 16X427
219*  189585 GLAND, male, piston 1
220 249121 SLEEVE, cylinder, MaxLife 1
221* 108822 O-RING, ptfe 2
222 ROD, piston 1
16X439 Model 16X426
16X443 Model 16X427
223* 112591 V-PACKING, leather, throat 3
224* 15G657 GLAND, female, throat 1
227* 107098 O-RING, ptfe 1
228* 156593 O-RING 1
229* 15J800 WASHER, backup 1
230 118494 O-RING, fluoroelastomer
(Model 16X426 only)
1
233 SPRING, intake, ball 1
249770 Model 16X426
24E027 Model 16X427
* These parts are also included in Repair Kit 249123 (stain-
less steel balls), which may be purchased separately.
 These parts are also included in Repair Kit 17A578
(ceramic balls), which may be purchased separately.

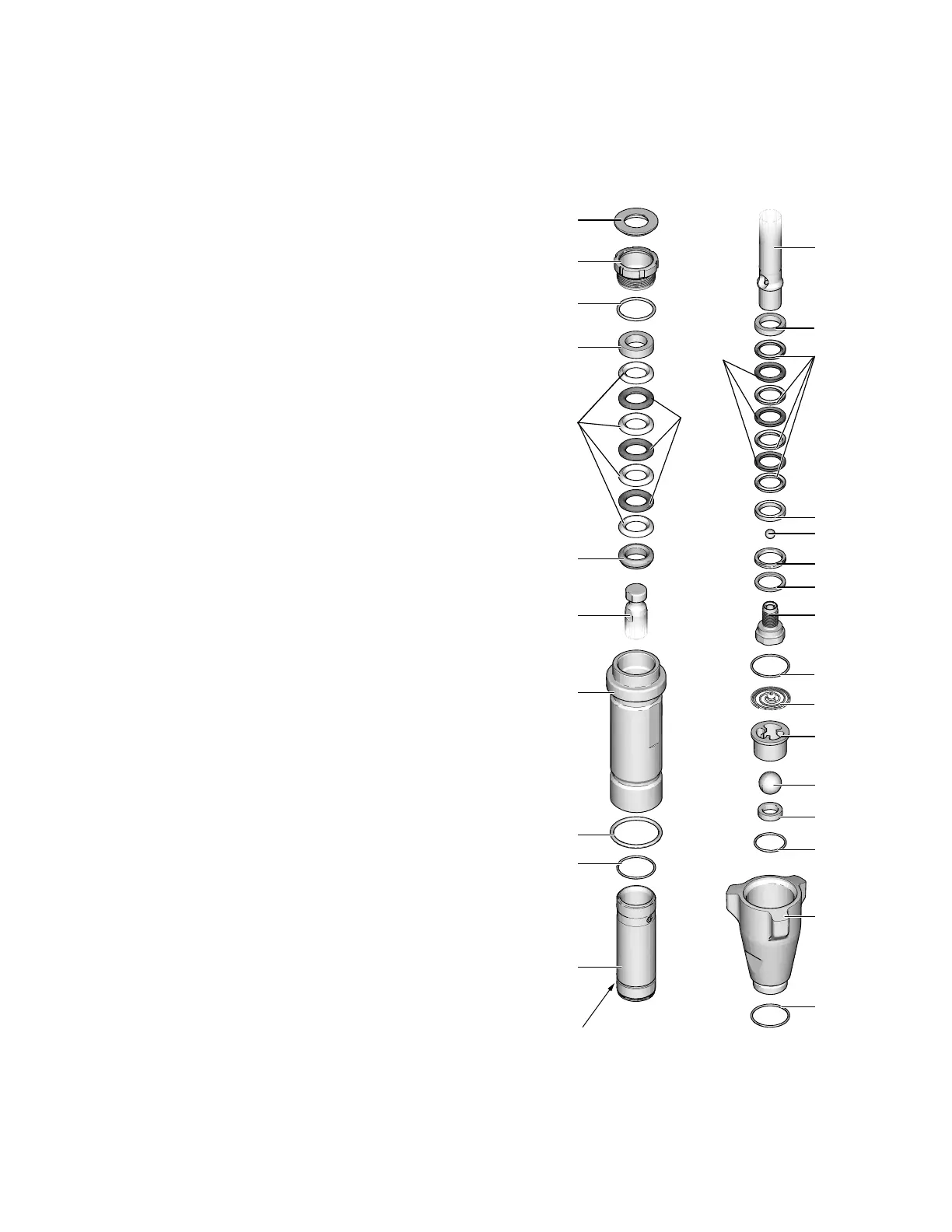

222
205
207
221
220
204
203
223
224
202
201
228
ti23507b
222
219
208
218
217
206
210
216
229
221
233
215
214
212
213
230
227
Not an
o-ring groove
