Service
3A6584A 7

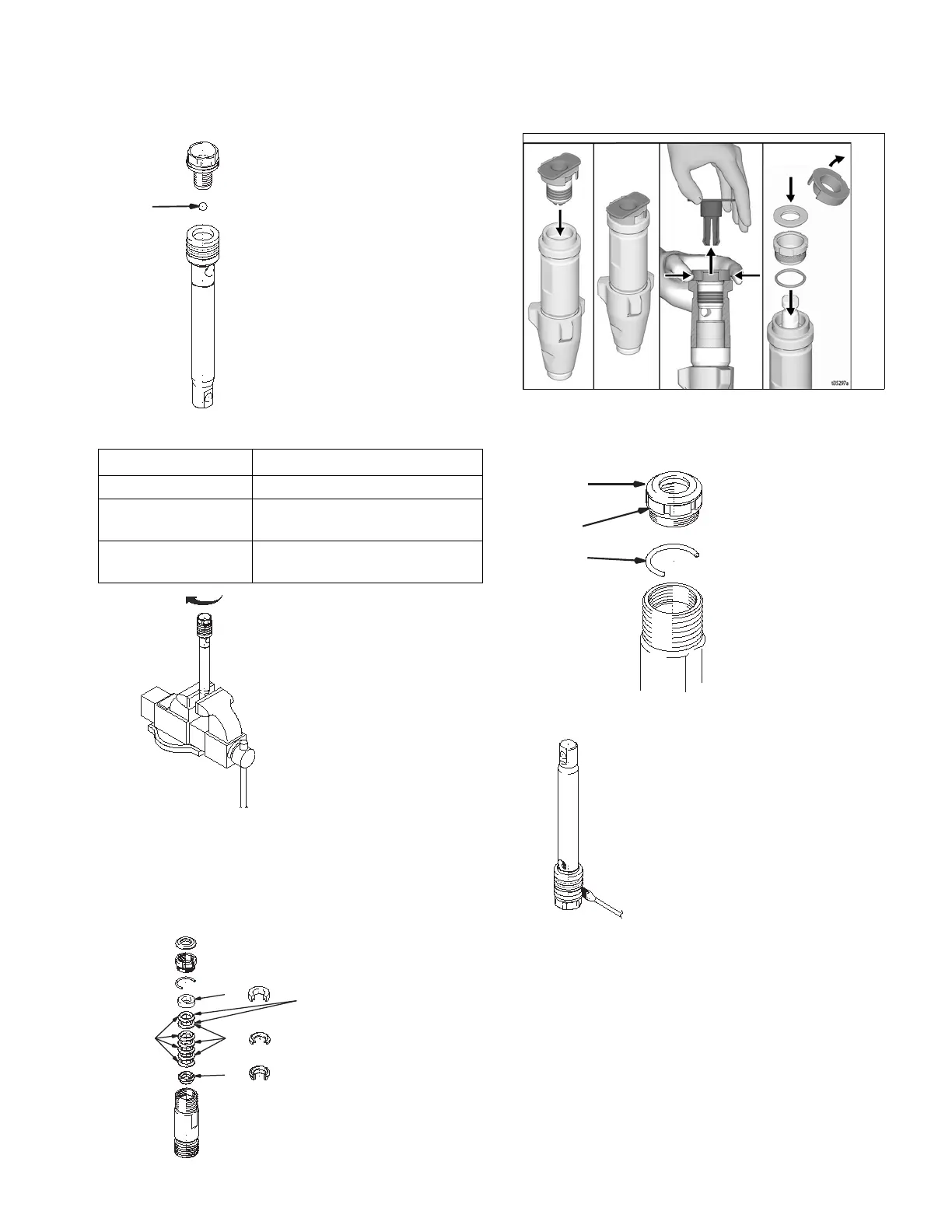

2. Install ball (206) in piston rod. If thread sealant is
applied to piston valve threads, make sure that none
gets on ball.
3. Tighten piston valve to piston rod as specified:
4. A) For all non-QuikPak Repair Kits.
Soak all leather packings in SAE 30W oil for one
hour minimum prior to assembly. Place male gland
(204) in cylinder. Alternately stack UHMWPE (203)
and leather packings (223) (note orientation). Place
female gland (224) in top of cylinder seat packings.
B) For all QuikPak Piston Repair Kits (provided
pre-soaked in oil).
5. Install seal (201) into packing nut (202). Install
o-ring (228) onto packing nut. Loosely install
packing nut into cylinder.
6. Grease piston packings.
NOTE: Do not slide piston assembly into top of sleeve as
this may damage piston packing.
Models Torque
16Y598, 17H828 27 ± 3 ft-lb.(36.6 ± 4.1 N•m)
16Y706, 17H829,
17H830
55 ± 3 ft-lb.(74.6 ± 4.1 N•m)
16X423, 17H831,
25E689
100 ± 5 ft-lb.(136 ± 7 N•m)
