Graco Check-Mate 800 - 24 W152, Pump with Carbon Filled Seals24 W153, Pump with Glass Filled Seals

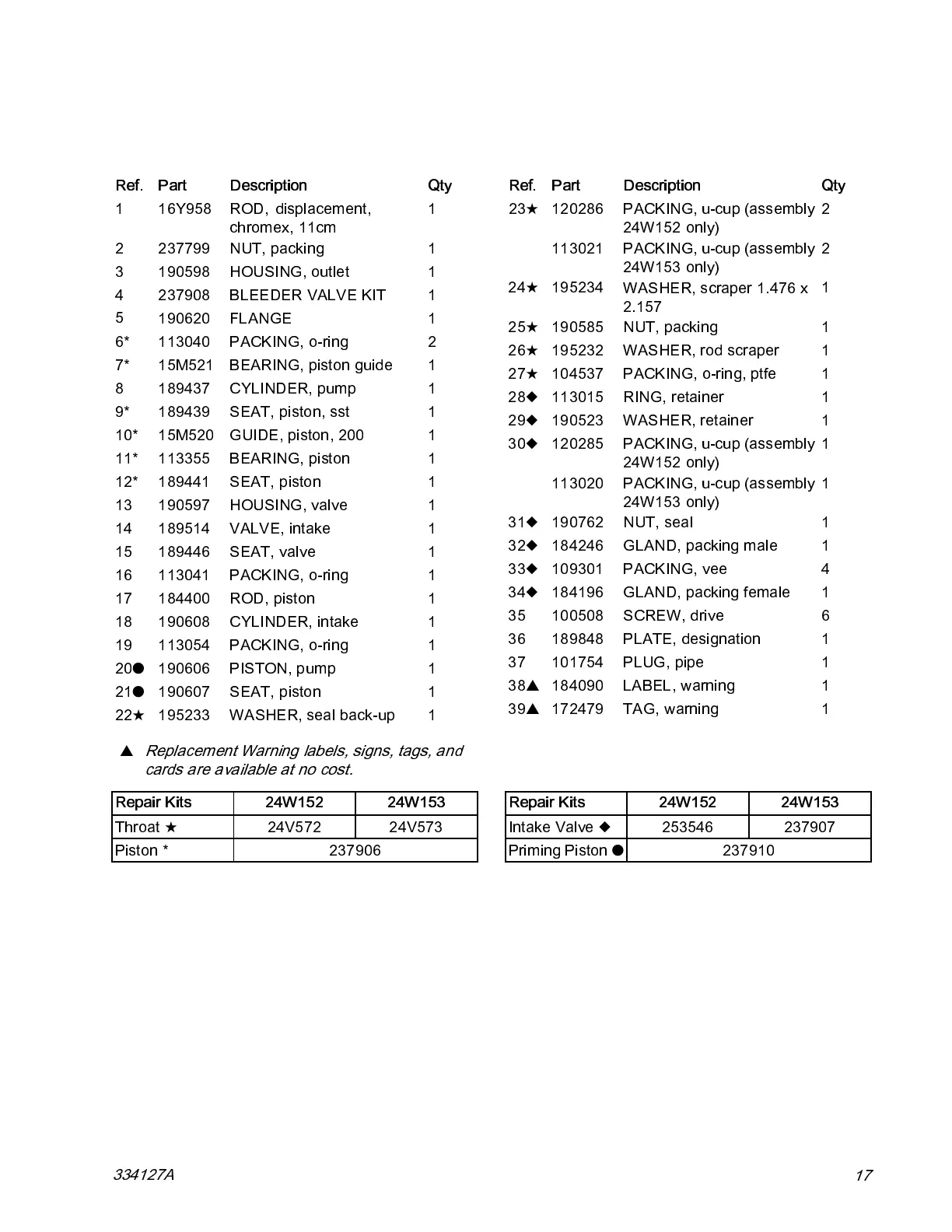

Parts
24W152, Pump with Carbon Filled Seals
24W153, Pump with Glass Filled Seals
Ref.
Part Description
Qty
1 16Y958
ROD, d isplacement,
chromex, 11cm
1
2 237799 NUT, packing 1
3 190598
HOUSING , outlet
1
4 237908 BLEED ER VALVE KIT 1
5
190620
FLANGE
1
6*
113040
PACKING , o-ring
2
7*
15M521
BEARING , pi sto n gu id e
1
8 189437
CYLINDER, pump
1
9*
189439
SEAT, piston, sst
1
10*
15M520
GUIDE, piston, 200
1
11*
113355
BEARING , piston
1
12*
189441
SEAT, piston
1
13 190597
HOUSING , valve
1
14 189514 VALVE, intake 1
15 189446
SEAT, valve
1
16 113041
PACKING , o-ring
1
17 184400
ROD, piston
1
18 190608
CYLINDER, intake
1
19 113054
PACKING , o-ring
1
20
 190606
PISTO N, pump
1
21
 190607
SEAT, piston
1
22
★ 195233
WASHER, seal back-up
1
Ref.
Part Description
Qty
23
★ 120286
PACKING, u-cup (assembly
24W152 only)
2
113021
PACKING, u-cup (assembly
24W153 only)
2
24
★ 195234
WASHER, scraper 1.476 x
2.157
1
25
★ 190585 NUT, packing 1
26
★ 195232
WASHER, rod scraper
1
27
★ 104537
PACKING, o-ring, ptfe
1
28
 113015
RING, retainer
1
29
 190523
WASHER, retainer
1
30
 120285
PACKING, u-cup (assembly
24W152 only)
1
113020 PA CKI NG , u -cup (assembly
24W153 only)
1
31
 190762 NUT, seal 1
32
 184246
GLAND, packing male
1
33
 109301
PACKING, vee
4
34
 184196
GLAND , pac k ing female
1
35 100508
SCREW, drive
6
36 189848 PLATE, designation 1
37 101754
PLUG, pipe
1
38
▲ 184090 LA BEL, warning 1
39
▲ 172479
TAG, warning
1
▲
Replacement Warning labels, signs, tags, and
cards are available at no cost.
Repair Kits
24W152 24W153
Throat ★ 24V572 24V573
Piston * 237906
Repair Kits
24W152 24W153
Intake Valve  253546 237907
Priming Piston  237910
334127A
17
