Component Identication
Component Identification

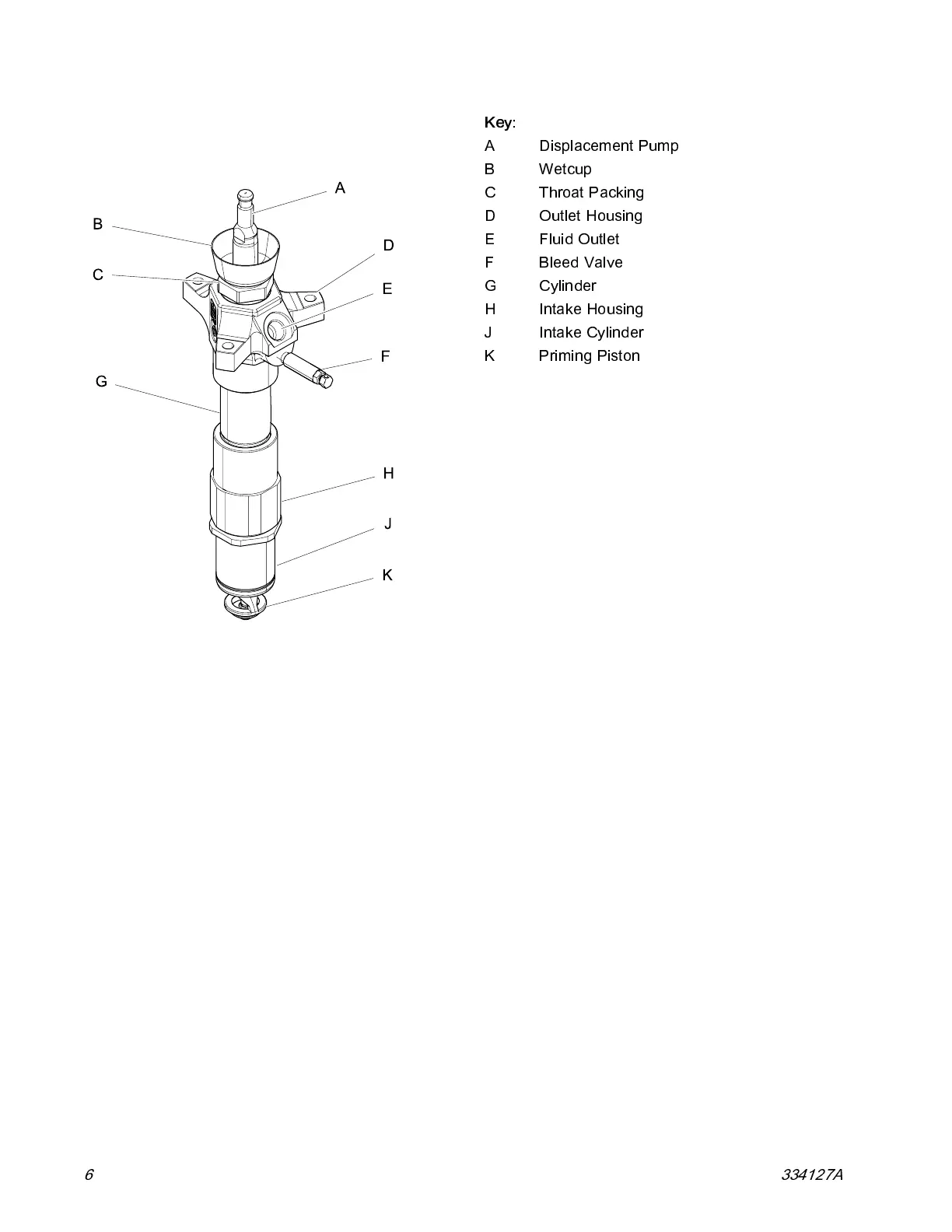

Key:
A Displacement Pump
BWetcup
C
Throat Packing
D
Outlet Housing
E
Fluid Outlet
FBleedValve
G Cylinder
H Intake Housing
J
Intake Cylinder
KPrimingPiston
