Graco Check-Mate 800 - 55 Gallon (200 Liter) Pumps; 24 W150, Pump with Carbon Filled Seals24 W151, Pump with Glass Filled Seals

Parts

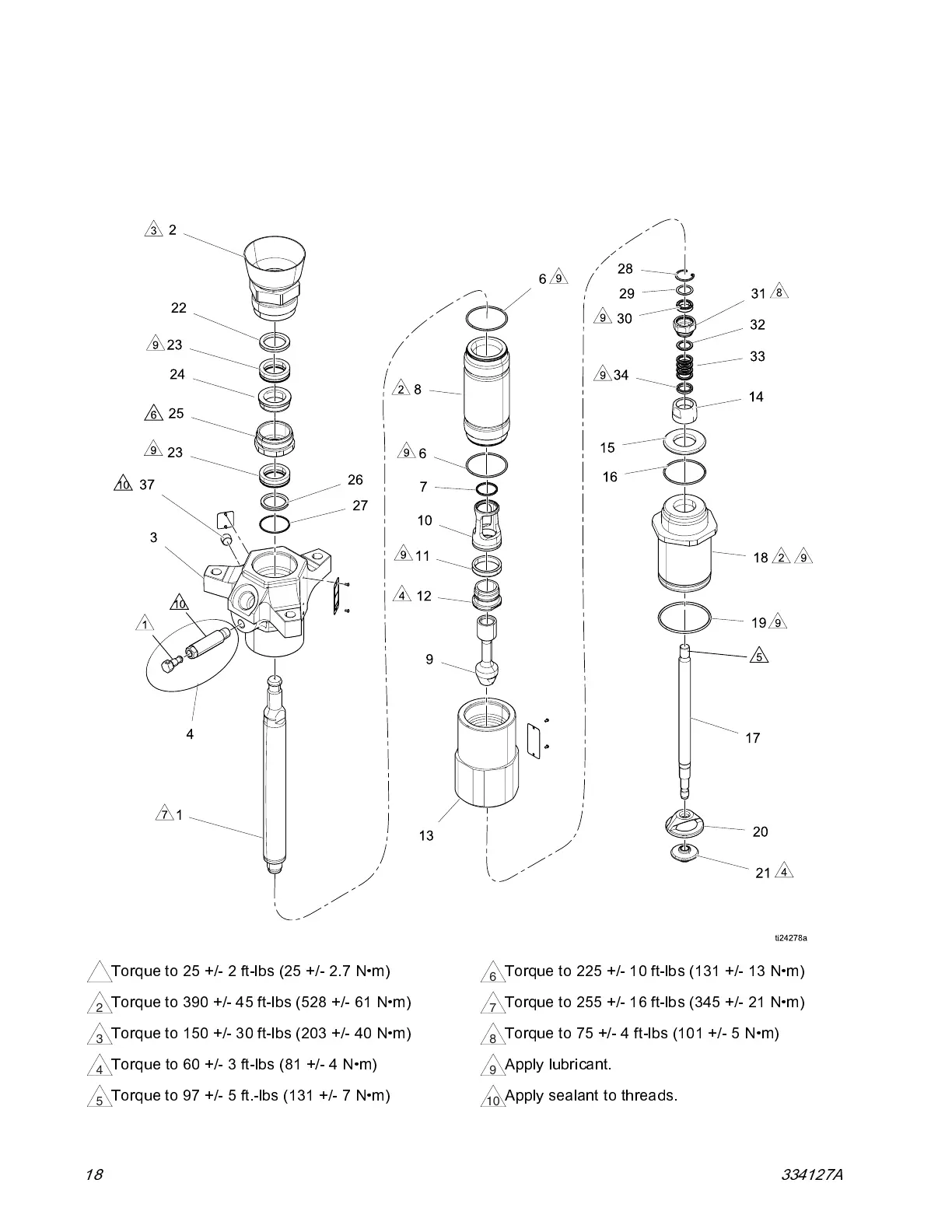

55 Gallon (200 Liter) Pumps
24W150, Pump with Carbon Filled Seals
24W151, Pump with Glass Filled Seals
1
Torque t o 25 +/- 2 ft-lbs (25 +/- 2.7 N•m)
2
Torque to 390 +/- 45 ft-lbs (528 +/- 61 N•m)
3
Torque to 150 +/- 30 ft-lbs (203 +/- 40 N•m)
4
Torque to 60 +/- 3 ft-lbs (81 +/- 4 N•m)
5
Torque t o 97 +/- 5 ft.-lbs (131 +/- 7 N•m)
6
Torque to 225 +/- 10 ft-lbs (131 +/- 13 N•m)
7
Torque to 255 +/- 16 ft-lbs (345 +/- 21 N•m)
8
Torque t o 75 +/- 4 ft-lbs (101 +/- 5 N•m)
9
Apply lubricant.
10
App ly sealant to threads.
18 334127A
