Graco Check-Mate 800 - Technical Specifications

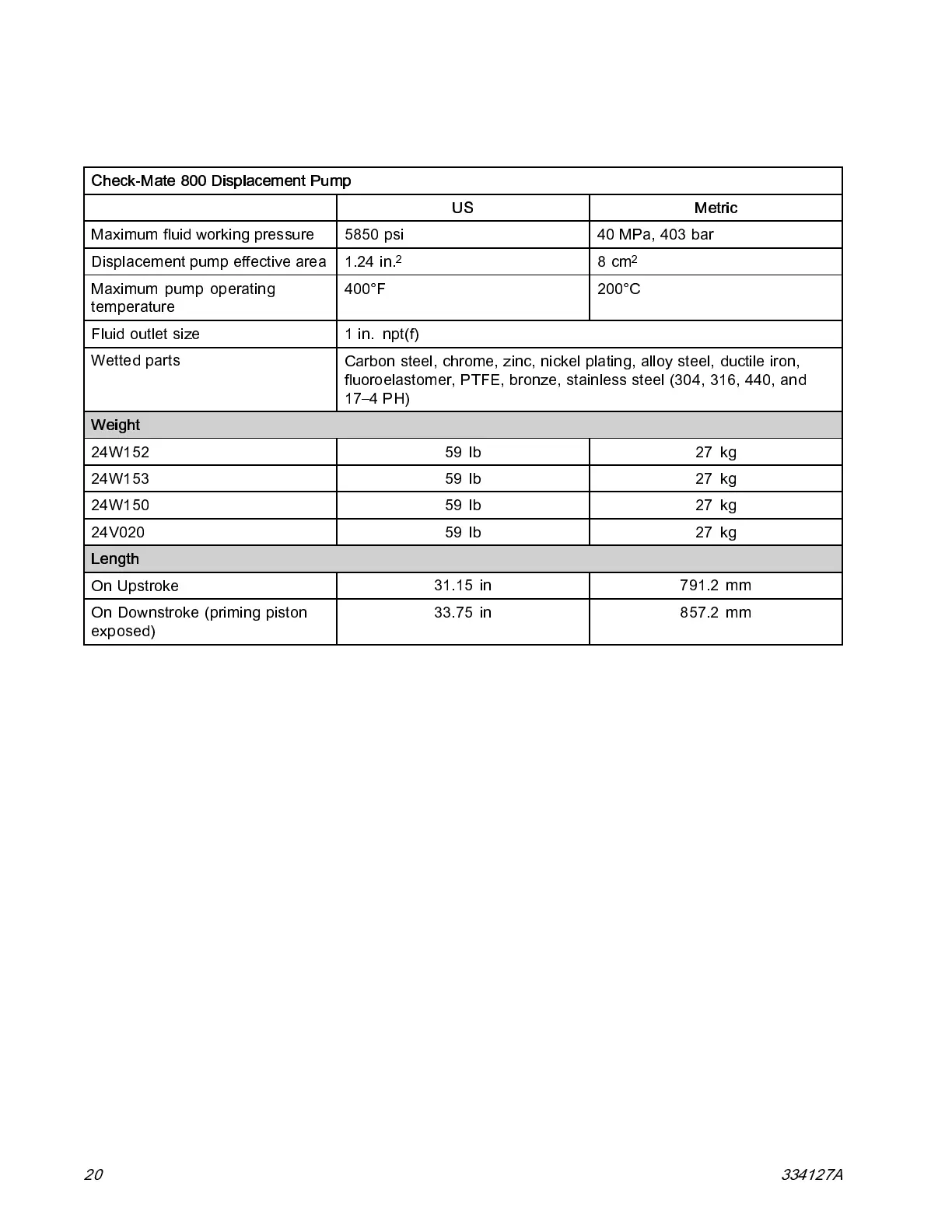

Technical Specifications
Technical Specifications
Check-Mate 800 Displacement Pump
US
Metric
Maximum fluid working pressure
5850 psi 40 MPa, 403 bar
Displacement pump effective area 1.24 in.
2
8cm
2
Maximum pump operating
temperature
400°F 200°C
Fluid outlet size
1 in. npt(f)
Wetted parts
Carbon steel, chrome, zinc, nickel plating, alloy stee l, ductile iron,
fluoroelastomer, PTFE, bronze, stainless steel (304, 316, 440, and
17–4 PH)
Weight
24W152 59 lb 27 kg
24W153 59 lb 27 kg
24W150 59 lb 27 kg
24V020 59 lb 27 kg
Length
On Upstroke
31.15 in 791.2 mm
On Downstroke (priming piston
exposed)
33.75 in 857.2 mm
20 334127A
