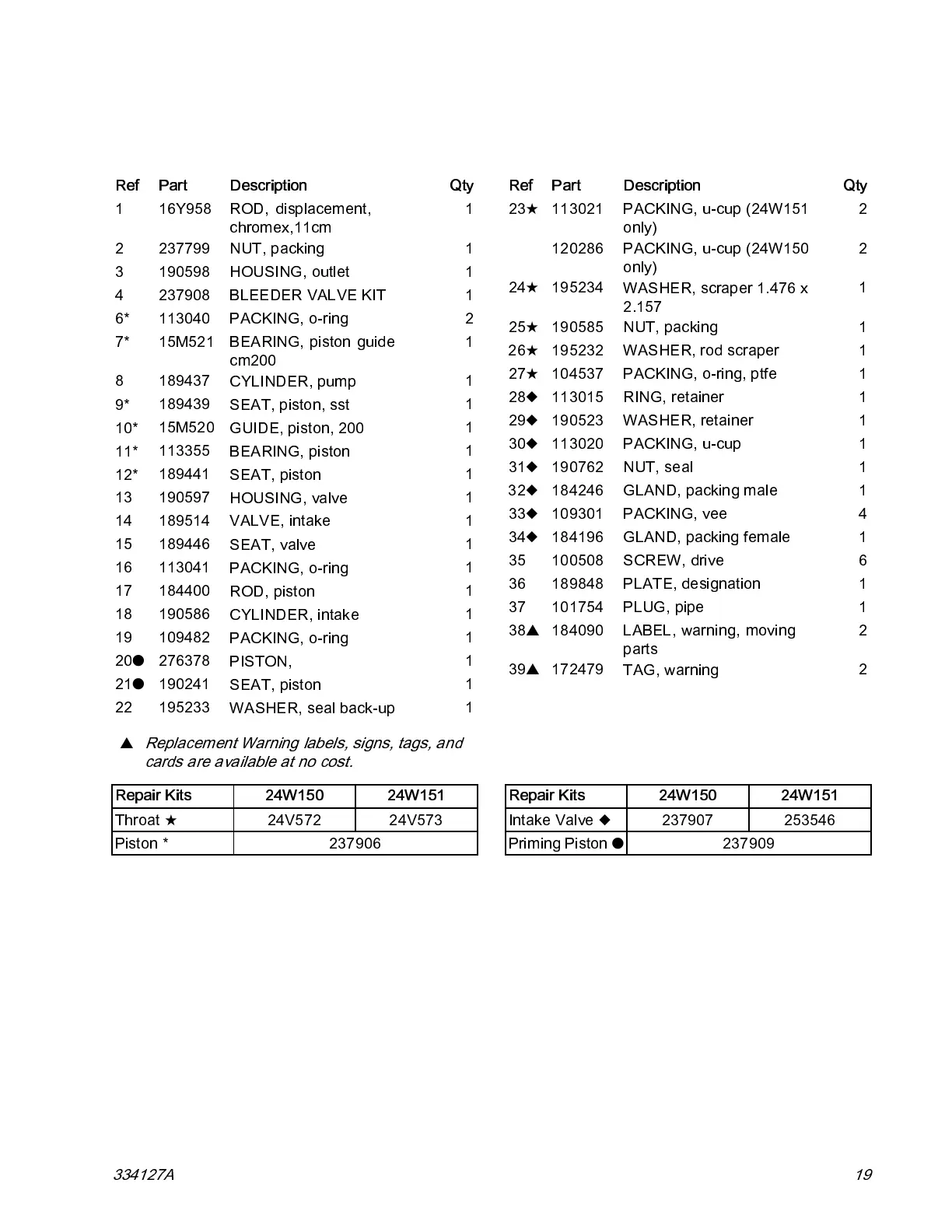

Graco Check-Mate 800 - 24 W150, Pump with Carbon Filled Seals24 W151, Pump with Glass Filled Seals

Parts
24W150, Pump with Carbon Filled Seals
24W151, Pump with Glass Filled Seals
Ref
Part Description
Qty
1 16Y958
ROD, displacement,
chromex,11cm
1
2 237799 NUT, packing 1
3 190598
HOUSING , outlet
1
4 237908 BLEEDER VALVE KIT 1
6*
113040
PAC KING, o-ring
2
7*
15M521
BEARING, piston guide
cm200
1
8 189437
CYLINDER, pump
1
9*
189439
SEAT, piston, sst
1
10*
15M520
GUIDE , pi s ton, 200
1
11*
113355
BEARING, piston
1
12*
189441
SEAT, piston
1
13 190597
HOUSING , valv e
1
14 189514 VALVE, intake 1
15 189446
SEAT, valve
1
16 113041
PAC KING, o-ring
1
17 184400
ROD, piston
1
18 190586
CYLINDER, intake
1
19 109482
PAC KING, o-ring
1
20
 276378
PISTON,
1
21
 190241
SEAT, piston
1
22 195233
WA SHER, seal back-up
1
Ref
Part Description
Qty
23
★ 113021
PAC KING, u-cup (24W151
only)
2
120286
PAC KING, u-cup (24W150
only)
2
24
★ 195234
WASHER, scraper 1.476 x
2.157
1
25
★ 190585 NUT, packing 1
26
★ 195232
WASHER, rod scraper
1
27
★ 104537
PAC KING , o-ring , p tfe
1
28
 113015
RING, retainer
1
29
 190523
WASHER, retainer
1
30
 113020
PACKING, u-cup
1
31
 190762 NUT, seal 1
32
 184246
GLAND, packin g ma le
1
33
 109301
PACKING, vee
4
34
 184196
GLAND, packing female
1
35 100508
SCREW, drive
6
36 189848 PLATE, designation 1
37 101754
PLUG, pipe
1
38
▲ 184090 LABEL, warning, moving
parts
2
39
▲ 172479
TAG, warning
2
▲
Replacement Warning labels, signs, tags, and
cards are available at no cost.
Repair Kits
24W150 24W151
Throat ★ 24V572 24V573
Piston * 237906
Repair Kits
24W150 24W151
Intake Valve  237907 253546
Priming Piston  237909
